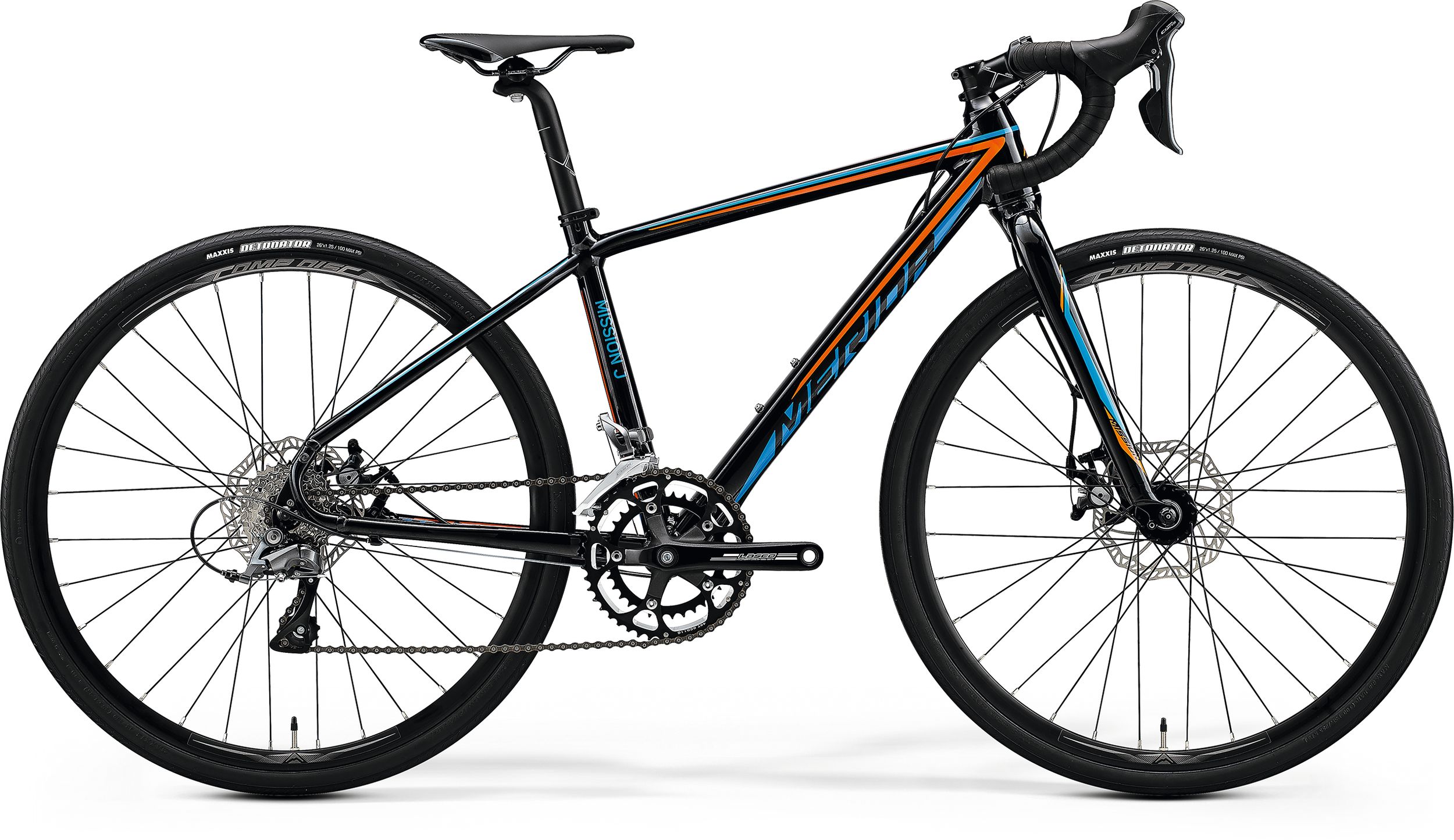

MISSION J ROAD

MISSION J ROAD



Find Dealer
  • THIS IS AN ARCHIVED MODEL

  • VIEW ALL CURRENT MODELS
    • material: aluminium
    • 26" wheelsize
    • 100x9/135x9mm axle standard
    • BSA bottom bracket standard
    frame size 4XS
    color METALLIC BLACK (ORANGE/BLUE)
    • Tapered
    • material: aluminium
    • Mechanical disc
    brake lever Shimano Claris
    headset MERIDA M2331 Neck
    • material: aluminium
    • material: aluminium
    • 31.8mm diameter
    • -6° stem angle
    • 60 mm
    grip MERIDA ROAD COMP
    derailleur (f) Shimano Claris
    shifters Shimano Claris
    • material: aluminium
    • 27.2mm diameter
    • 12mm setback
    seat clamp MERIDA EXPERT
    saddle MERIDA EXPERT JR
    chain KMC M700
    crank 155 mm
    • 11-28 teeth
    • 8 speed
    bottom bracket Cartridge Bearing
    • 100x9mm width front hub
    • 32 spoke holes
    • 6 bolt
    • 135x9mm width rear hub
    • 32 spoke holes
    • 6 bolt
    • 16mm inner width
    • 22mm height
    • material: aluminium
    axles QR
    spokes Black stainless
    approx. weight 9.6 kg
    Bike Frame Geometry Image
    Frame Size 4XS
    Tyre Sizes 26"
    ST seat tube [mm] 390
    TT top tube [mm] 485
    CS chain stay length [mm] 417
    HTA head tube angle [°] 71.5
    STA seat tube angle [°] 74.5
    BD bottom bracket drop [mm] 50
    HT head tube [mm] 100
    FL fork length [mm] 380
    R reach [mm] 349.3
    S stack [mm] 489.3
    WB wheel base [mm] 963
    SH stand over height [mm] 657.4
    Body Height Cm 140 - 165

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.



    Technologies

    Back to overview

    INTERNAL CABLE ROUTING

    On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.

    Watch Video
    Back to overview

    RACELITE 61 ALUMINIUM

    We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

    Watch Video
    Back to overview

    F-MOUNT

    Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

    Watch Video
    Back to overview

    C-MOUNT

    Similar to our F-MOUNT, where various fixing points for mudguards are part of the frame offering, the C-MOUNT equipped bikes have the fixing points for a rear rack already integrated, making fitting fast, simple and reliable. The C-MOUNTS are an additional feature that improves the day-to-day versatility by adding loading capacity to your bike, ideal for commuting and shopping trips. Please note that some bikes require model-specific rear racks.
