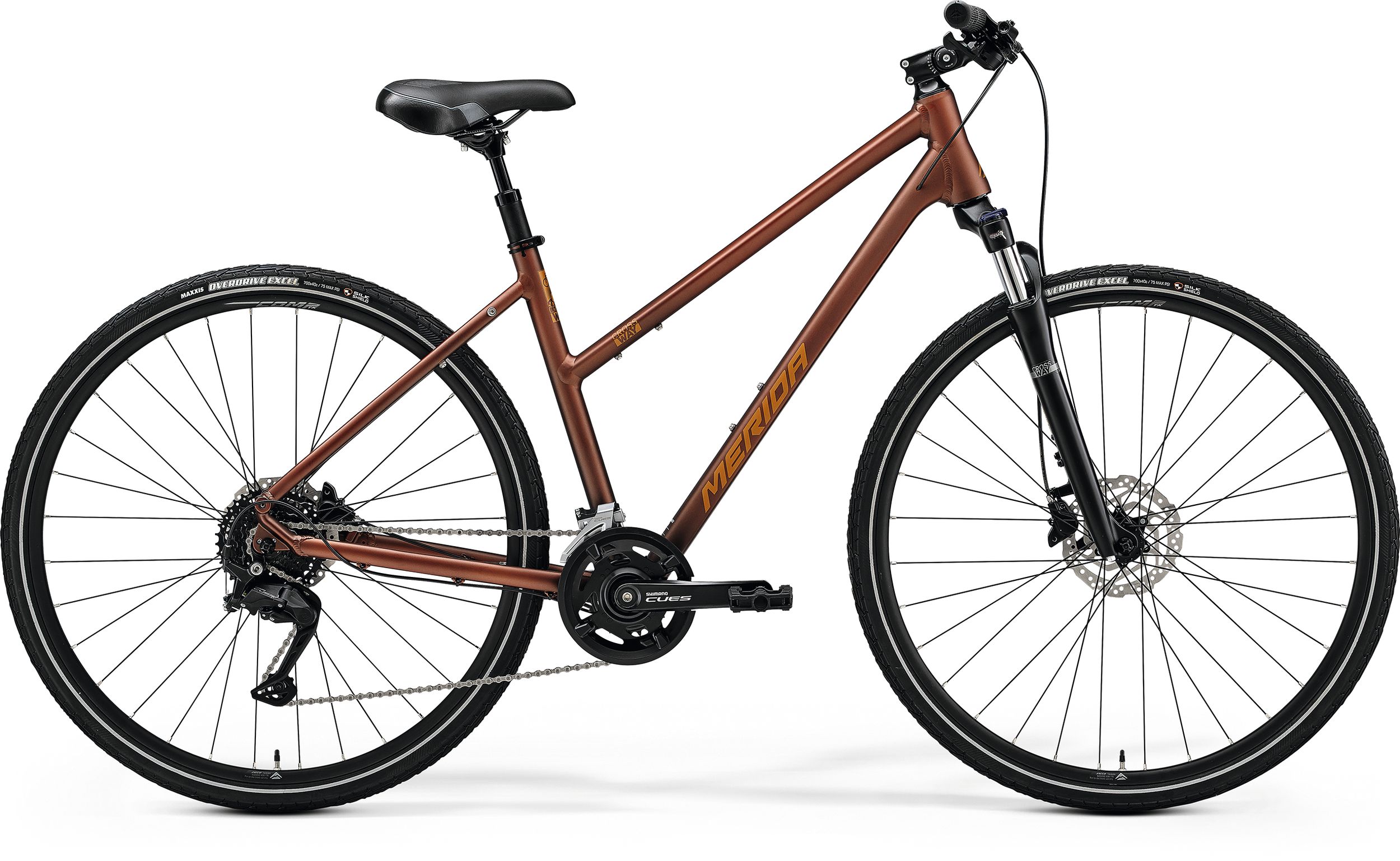

CROSSWAY L 100



Modern trekking/hybrid bike with hydraulic disc brakes and reliable components. Ideal for the day to day jobs around town and fun packed adventures in the open countryside.
Contact Local Shop

A modern trekking/hybrid bike that features a long list of quality components, including powerful and easy to control hydraulic disc brakes, a broad 27-speed gear range plus a comfort and safety enhancing suspension fork. All of this is fitted to a lightweight aluminium frame with a comfort-orientated geometry, giving the CROSSWAY 100 actual day-to-day usability with leisure and touring versatility.

The CROSSWAY family has been the MERIDA range's backbone since its introduction. They are used worldwide and are proven as a reliable, versatile and fun-packed way of getting around. Designed to provide a comfortable place to take in the surroundings thanks to an upright riding position and comfort focused equipment such as suspension fork, suspension seat posts and adjustable stems, they offer the perfect blend of comfort, enjoyment and all-round functionality. They are suitable for fitness training, commuting and leisurely rides through forests and on trails. Made from high-quality, lightweight aluminium with the ability to mount mudguards, racks and kickstands, the CROSSWAY range is the perfect choice for everyday riding. The fitted 700c wheels cover ground quickly, while the extra volume of the 40 mm wide tyres offers puncture protection, grip and comfort. All CROSSWAY models are available as a low step-through frame, making mounting and dismounting straightforward.

  • Lightweight aluminium frame with comfort geometry
  • Lockable suspension fork
  • Hydraulic disc brakes
  • Shimano CUES drivetrain
  • Multiple fixing points for rear rack and fenders
  • Suspension seat post and adjustable stem
model year 2024
  • material: aluminium
  • 700x50C max. wheelsize
  • 135x9 mm axle standard
  • BSA bottom bracket standard
frame size XS, S, M
  • Coil
  • 63 mm suspension travel
  • Lockout
  • 700x48C max. wheelsize
  • 20 mm inner width
  • 17 mm height
  • material: aluminium
  • 100x9 mm width front hub
  • 32 spoke holes
  • Centerlock
  • 135x9 mm width rear hub
  • 32 spoke holes
  • Centerlock
  • 700x40C
  • wire
  • reflective stripe, Silkshild
  • 700x40C
  • wire
  • reflective stripe, Silkshild
  • 40-26 teeth
  • 170 mm-XXS/XS/S, 175 mm-M/XL
  • 11-36 teeth
  • 9 speed
chain Shimano LG500
shifters Shimano CUES U4000
front derailleur Shimano CUES U4000
headset MERIDA M2346 Neck
  • material: aluminium
  • 31.8 mm diameter
  • adjustable
  • XXS/XS/S/M: 95 mm, L/XL: 110 mm
stem size XXS/XS/S/M: 95 mm, L/XL: 110 mm
  • material: aluminium
  • 660 mm width
  • 25 mm rise
grip MERIDA EXPERT EC
  • 30.9 mm diameter
  • 10 mm setback
  • 45 mm seatpost suspension travel
seat clamp MERIDA EXPERT
saddle MERIDA Cross Sport
pedal VP VPE-891

weighed at frame size M

Bike Frame Geometry Image
Frame Size XS S M
Tyre Sizes 28" 28" 28"
St Seat Tubes mm 430 470 510
Tt Top Tubes mm 565 580 590
Cs Chain Stays mm 460 460 460
HTA head tube angle [°] 70.5 71 71
STA seat tube angle [°] 74 73.5 73.5
Bd Bottom Bracket Drops mm 70 70 70
Ht Head Tube Lengths mm 130 140 155
Fl Fork Lengths mm 468 468 468
R Reach mm 387 393 399
S Stacks mm 620 631 645
Wb Wheel Base mm 1081 1085 1096
Sh Stand Over Height mm 639 639 639

To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.



Technology

Back to overview

X-TAPER HEADTUBE

Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.

Watch Video
Back to overview

SMOOTH WELDING

This is a process we use to give a nice flat finish to our welds instead of the scaled, 'stack of coins' effect TIG welded joints often have. The welder uses the welding torch to go over the joint twice, helping to smooth out the filler material. It takes a lot of skill to do this, but it delivers strong and smart-looking frames that have the appearance of a carbon fibre frame at first look.

Watch Video
Back to overview

INTERNAL CABLE ROUTING

On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.

Watch Video
Back to overview

DOWN TUBE EXIT

DOWN TUBE EXIT is a feature seen on some of our frames with internally routed cables. By slightly overlapping the downtube where it connects to the bottom bracket, it leaves a small space that allows cables to exit easily. This means they are easily accessible for routine maintenance or replacement, but it prevents excessive movement and noise that can cause wear and distraction.

Watch Video
Back to overview

RACELITE 61 ALUMINIUM

We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

Watch Video
Back to overview

TFS - TECHNO FORMING SYSTEM

Manipulating the tube shape and thickness greatly impacts the appearance, weight and functionality of our aluminium frames. One technology that allows us to do that is TECHNO FORMING, where plain aluminium tubes get mechanically formed by using an external form and an internal metal core. The result, beautifully shaped tubes with varying wall thickness, ready to be used to create our technoformed aluminium frames.

Watch Video
Back to overview

F-MOUNT

Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

Watch Video
Back to overview

K-MOUNT

Integrated mount on the chainstay to fit a Merida kickstand (or any commercial kickstand).

Watch Video
Back to overview

C-MOUNT

Similar to our F-MOUNT, where various fixing points for mudguards are part of the frame offering, the C-MOUNT equipped bikes have the fixing points for a rear rack already integrated, making fitting fast, simple and reliable. The C-MOUNTS are an additional feature that improves the day-to-day versatility by adding loading capacity to your bike, ideal for commuting and shopping trips. Please note that some bikes require model-specific rear racks.

Watch Video
