- material: aluminium
- 700x38C / 650Bx45C max.WHS
- 100x12/142x12mm axle standard
- BB86 bottom bracket standard
- Tapered
- material: carbon
- 700x38C / 650Bx45C max. wheelsize
- Hydraulic disc
- Hydraulic disc
- 46-30 teeth
- 170 mm-XS/S, 172,5 mm-M, 175 mm-L/XL
- 11-36 teeth
- 10 speed
- V-mount
- material: aluminium
- 30.9mm diameter
- 0mm setback
- 17mm inner width
- 22mm height
- material: aluminium
- 700x38C
- fold
- TR
- EXO
- 700x38C
- fold
- TR
- EXO
- 100x12mm width front hub
- 32 spoke holes
- centerlock
- 142x12mm width rear hub
- 32 spoke holes
- centerlock
weighed with 700C wheels and at frame size M, without pedals
| Frame Size | XS | S | M | L | XL |
| Tire Sizes | 28" | 28" | 28" | 28" | 28" |
| St Seat Tubes Mm | 440 | 470 | 500 | 530 | 560 |
| Tt Top Tubes Mm | 548 | 554 | 579 | 600 | 620 |
| Cs Chain Stays Mm | 430 | 430 | 430 | 430 | 430 |
| Hta Head Tube Angles Deg | 71 | 71 | 71 | 71 | 71 |
| Sta Seat Tube Angle Deg | 74 | 74 | 74 | 74 | 74 |
| Bd Bottom Bracket Drops Mm | 75 | 75 | 75 | 75 | 75 |
| Ht Head Tube Lengths Mm | 160 | 180 | 200 | 220 | 240 |
| Fl Fork Lengths Mm | 397 | 397 | 397 | 397 | 397 |
| R Reachs Mm | 380 | 380 | 400 | 415 | 430 |
| S Stacks Mm | 587 | 606 | 625 | 644 | 663 |
| Wb Wheel Base Mm | 1027 | 1034 | 1060 | 1082 | 1103 |
| Sh Stand Over Height Mm | 716 | 744 | 772 | 799 | 826 |
Category Highlights

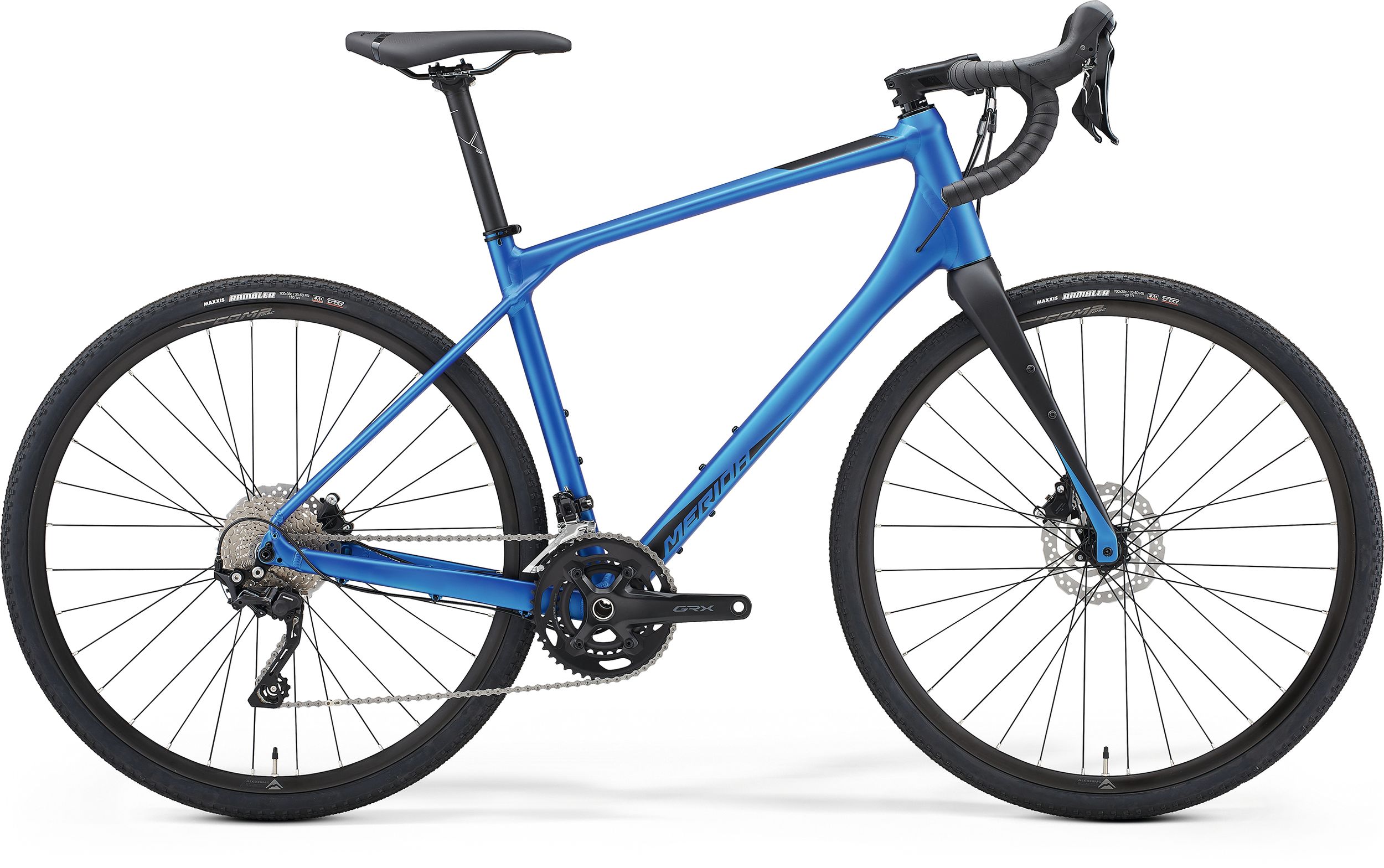

The SILEX is available in two options. The 'classic' SILEX standing on 700c wheels, being the perfect 'all-road' bike which loves lanes, forest tracks and gravel or the new more 'rugged' SILEX+ version, which can easily tackle more demanding terrain due to its more burly 650B wheels and 45 mm tyres. The choice is yours. Both options are based on the same frame, so wheels are exchangeable at a later date.
Die meisten SILEX-Modelle haben wir mit nur einem Kettenblatt vorne ausgerüstet. Das ist leichter und benötigt weniger bewegliche Teile. Diese Lösung bietet 98 % des Übersetzungs umfangs eines Rennrad-Antriebs mit Kompaktkurbel (50/34) und 11-32er Kassette.
As standard, the SILEX comes with 700x38c tyres and the SILEX+ with 650Bx45c. The maximum tyre size for 700c wheels is 42 mm (road profile) while with 650B wheels being fitted, tyres up to 50 mm wide road profile tyres on the carbon and up to 42 mm on the aluminium bikes can be run.
Vom superleichten CF5 Rahmen des Teammodells mit modernster, nicht zu toppender Carbontechnologie, über den preisgünstigeren CF4 Rahmen, bis zum CFA Rahmen mit Aluminium-Hinterbau oder dem hydrogeformten 6066 Aluminium Rahmen.
In line with the design ethos of versatility and go anywhere, the SILEX is available with a wide range of luggage and accessory options, including frame bags and big saddle packs. The frame features fender mounts on the rear triangle as well as on the fork, transferring the SILEX quickly and easily into a fast training bike for the winter or a versatile commuting and touring bike.
