- material: aluminium
- 700x50C (with fender) max. wheelsize
- 142x12mm axle standard
- intube

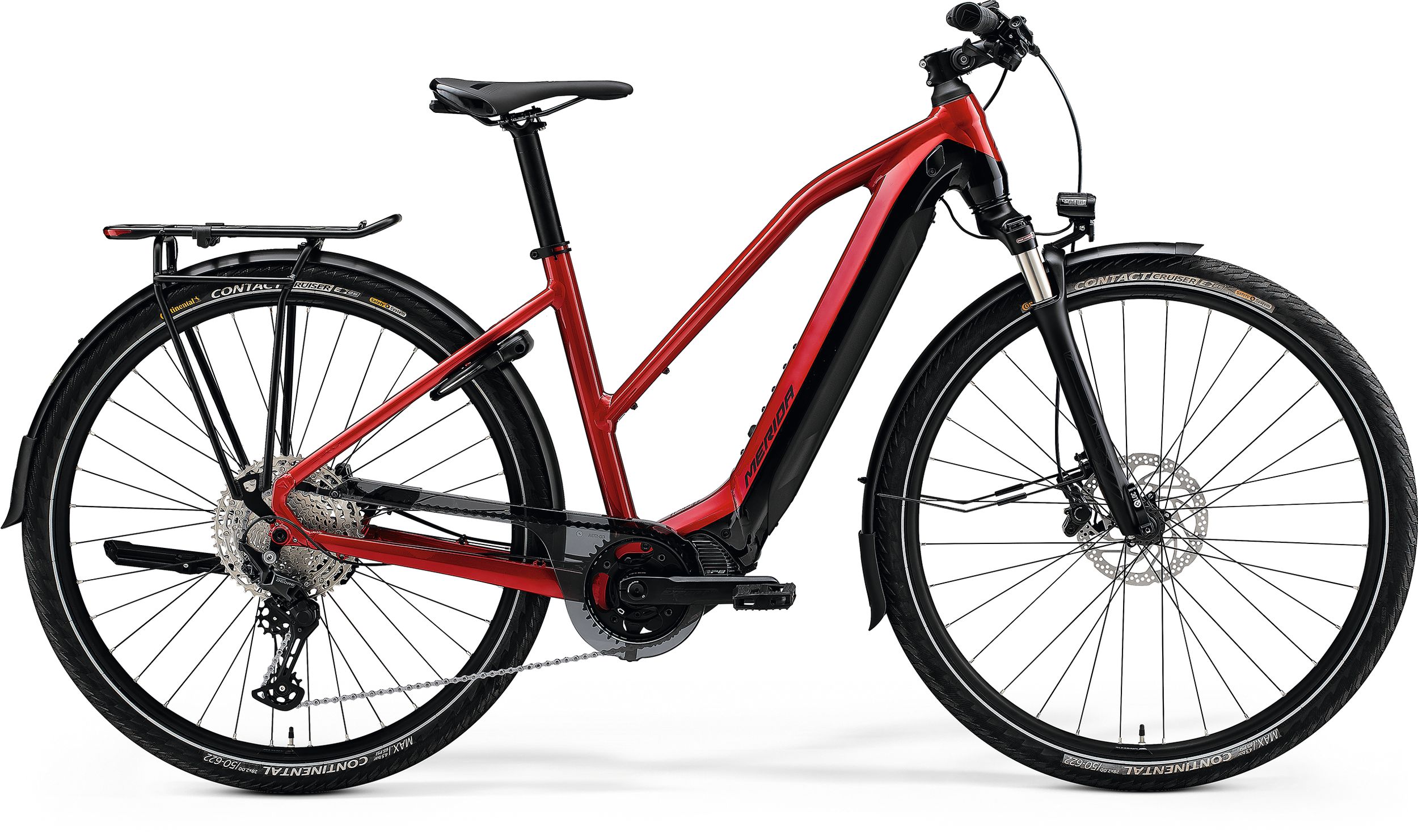

- eSPRESSO L XS(43L)-S(47L)-M(51L)-L(55L)
- Air
- 63mm suspension travel
- Tapered
- 700x50C max. wheelsize
- 2 piston
- material: aluminium
- 34.9mm diameter
- 0mm setback
- 38 teeth
- MERIDA EXPERT TK
- 170mm
- 11-51 teeth
- 11 speed
- 100x15mm width front hub
- 32 spoke holes
- Centerlock
- 142x12mm width rear hub
- 36 spoke holes
- Centerlock
- 20mm inner width
- material: aluminium
- 622-50
- wire
- reflecting line
- 622-50
- wire
- reflecting line
Frame Size | XS | S | M | L |
Tyre Sizes | 28" | 28" | 28" | 28" |
ST seat tube [mm] | 430 | 470 | 510 | 550 |
TT top tube [mm] | 580 | 590 | 600 | 620 |
CS chain stay length [mm] | 478 | 478 | 478 | 478 |
HTA head tube angle [°] | 69 | 69.5 | 69.5 | 70 |
STA seat tube angle [°] | 75 | 74.5 | 74.5 | 74 |
BD bottom bracket drop [mm] | 75 | 75 | 75 | 75 |
HT head tube [mm] | 133 | 140 | 155 | 175 |
FL fork length [mm] | 489 | 489 | 489 | 489 |
R reach [mm] | 409 | 410 | 416 | 424 |
S stack [mm] | 640 | 649 | 663 | 684 |
WB wheel base [mm] | 1145 | 1144 | 1155 | 1164 |
SH stand over height [mm] | 593 | 610 | 631 | 650 |
No. | Item-No. | Name | Info | Pieces | Torque NM |
1 | A2300000048 | SCREW | M4x0.7 L8mm | 1 | 3~5 |
2 | A2311000067 | RD-HANGER | DH-057 | 1 | |
3 | A2300000129 | SCREW | M3x0.5 L10mm | 2 | 2~4 |
4 | A2258000012 | CABLE GUIDE | for M5 fixation | 1 | |
5 | A2298000120 | SCREW | M5x0.8 L12mm | 1 | 3~5 |
6 | A2300000468 | SCREW | M8x1.25 L18.5mm | 3 | 11~12 |
7 | A2300000469 | SCREW | M8x1.25 L23mm | 3 | 11~12 |
9 | A2298000144 | SCREW | M5x0.8 L10mm | 6 | 3~5 |
12 | A2161000127 | CABLE GUIDE | 1 | ||
13 | A2143000125 | BUTTON | ON-OFF; for SHIMANO batteries | 1 | |
14 | A2111000008 | CABLE GUIDE | 2 | ||
15 | A2161000118 | COVER | for battery | 1 | |
17 | A2143000129 | BLIND PLUG | for key opening | 1 | |
18 | A2258000079 | CABLE PLUG | for RD | 1 | |
19 | A2258000099 | CABLE PLUG | for rear brake and speed sensor | 1 | |
20 | A2300000228 | SCREW | M4x0.7 L14mm | 2 | 1.5~2 |
21 | A2258000127 | CABLE GUIDE | for right side | 1 | |
22 | A2258000128 | CABLE GUIDE | for left side | 1 | |
23 | A2143000076 | COVER | for carrier mount | 2 | |
24 | A2298000142 | SCREW | M6x1.0 L12mm | 2 | 6~8 |
25 | A2258000098 | CABLE GUIDE | for M4 fixation | 1 | |
26 | A2300000447 | SCREW | M4x0.7 L5mm | 1 | 1.5~2 |
27 | A2143000122 | CABLE PLUG | for front light | 1 | |
28 | A2002000108 | THRU AXLE | EXPERT TR; L=172mm M12x1.5 TL=14mm w. NUT | 1 | |
29 | A2298000071 | SCREW | M5x0.8 L15mm with washer | 2 | 3~5 |
30 | A2191000150 | HEAD SET | MERIDA/VP-8155 (MH-P16/MH-P16) | 1 | |
30 | A2191000151 | HEAD SET | MERIDA/VP-8156 (MH-P16/MH-P16) | 1 |
HIGHLIGHTS
In our eSPRESSO range, you can choose between two frame options. The frame design with integrated battery technology, or the proven semi-integrated battery frame option, so that you can find the ideal bike for your preferences and your budget. Our integrated battery models come equipped with either the super-powerful EP8 or the more economical E6100 motor, while the semi-integrated battery models feature the entry-level E5000 power unit, giving you even more choice to select the perfect eSPRESSO for your needs.
All our eSPRESSO models come equipped with mudguards, lights, lock, rear rack and a kickstand, making them ready for anything from the moment you leave the store.
The MERIDA ‘Energy Guard Twist’ is a two-component battery cover, which offers easy and fast access to the battery while protecting it from outside impacts. The new twist-lock mechanism that is located at the top end of the battery cover allows tool-less locking and unlocking of the protective internal battery cover.
The system weight of a bike is the combined weight of bike, rider and additional luggage. The allowed system weight is 140 kg. As an e-bike is already heavier than a regular bike, and as it also makes it easier to transport larger amounts of luggage, it is imperative to certify a higher overall system weight. All MERIDA e-bikes, as well as all used componentry, go through a rigorous and e-bike specific testing schedule which mimics the higher forces and strains to guarantee the rider the highest level of safety.
We feature internal cable routing on all models. Cables are routed through the frame, entering and exiting through smooth sockets. Only a clever system for our internal guiding and fixing guarantees reliable and rattle free routing, whilst the cables are protected from moisture and dirt and gives the bike a cleaner look.
The whole range rides on fast rolling 700c wheels, ideal for rides on roads, lanes and smooth tracks. We fit tyres with reflective sidewalls and puncture protection that will get you to your destination quickly and safely.
Cables, housings and brake hoses are clamped under tension to prevent rattling when the trail gets rough. All inlets are completely interchangeable to deal with Di2, hydraulic hoses, brake cable and gear cable housings etc.
