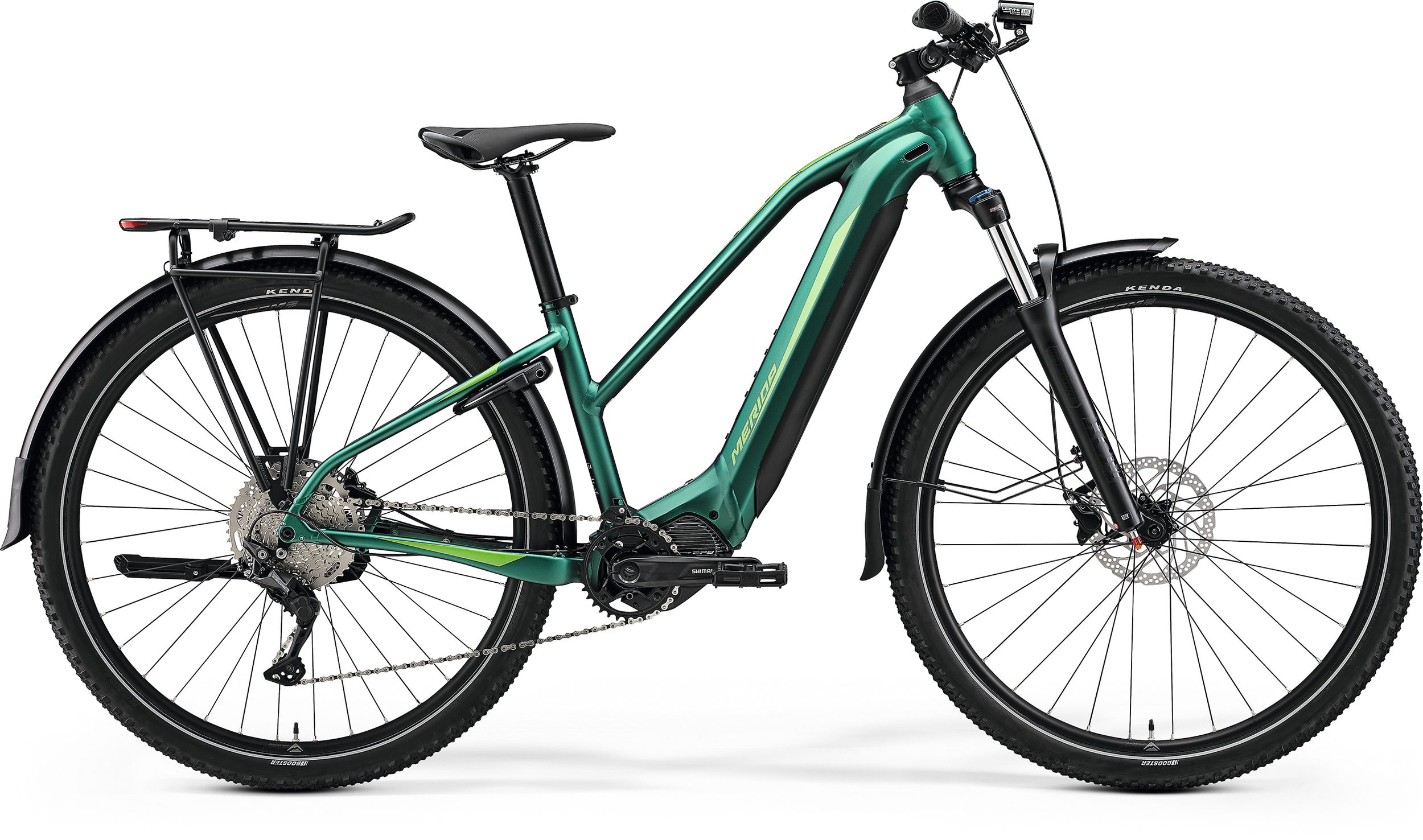

eBIG.TOUR 400 EQ



Everyday practicality of a low-step-through frame with city friendly equipment is paired with a rugged, go anywhere attitude and powerful Shimano motor.

Joining together urban practicality with the willingness to explore is no easy feat, but the eBIG.TOUR 400 EQ does just that, with the latest Shimano EP8 drive unit giving you smooth yet powerful assistance whenever you need it. Large volume tyres, a suspension fork and mountain bike inspired geometry deliver capable and confident handling whenever you want an adventure, but the low-step-through frame design with integrated 630 Wh battery and generous standard fit equipment including mudguards and lighting have your everyday needs covered, so there’s no need to compromise.

Are practicality and excitement mutually exclusive? We don’t think so - and neither does the eBIG.TOUR. It’s a reliable day-to-day companion for riding to work that’s equally happy taking you on big adventures off the beaten track, thanks to a winning combination of mountain bike inspired geometry with low step-through frame practicality. A powerful and smooth Shimano pedal-assist motor is integrated cleanly into the aluminium frame, while a suspension fork and high-volume tyres provide comfort and safety. Add in standard fit mudguards, racks, lighting, wheel lock and a kickstand plus long-lasting 630 or 750 Wh batteries and you’ll realise you’ve got the best of all worlds.

  • Lightweight aluminium frame with integrated 630 Wh battery and low step-through frame design
  • Powerful and smooth Shimano EP8 drive unit
  • SR Suntour suspension fork for improved comfort and control
  • Standard fit mudguards, rack, lights, wheel lock and kickstand
  • 29er wheels with high volume tyres can handle city or countryside terrain
  • Smooth Shimano drivetrain and powerful disc brakes
  • 20mm inner width
  • material: aluminium
  • material: aluminium
  • 29x2.35" without fender max./ 29"x2.25" with fender max. wheelsize
  • 148x12mm axle standard
  • intube
velikost okvirja S, M, L, XL
barva TEAL-BLUE (LIME)
  • 100mm
  • Tapered
  • 51mm fork offset
  • 29x2.4" max wheelsize
prestave Shimano Deore M4100
  • 110x15mm width front hub
  • 32 spoke holes
  • Centerlock
  • 148x12mm width rear hub
  • 36 spoke holes
  • Centerlock
zad. prestavne ročke Shimano Deore M4100
  • 110x15mm width front hub
  • 32 spoke holes
  • Centerlock
  • 148x12mm width rear hub
  • 36 spoke holes
  • Centerlock
  • material: aluminium
  • 720mm width
  • 10mm rise
  • material: aluminium
  • 31.8mm diameter
  • adjustable
  • 90 mm
Slika gometrije okvirja
Velikost okvirja S M L XL
Tire Sizes 29" 29" 29" 29"
St Seat Tubes Mm 380 430 480 530
Tt Top Tubes Mm 588 605 625 645
Cs Chain Stays Mm 465 465 465 465
Hta Head Tube Angles Deg 67.5 67.5 67.5 67.5
Sta Seat Tube Angle Deg 74.5 74.5 74.5 74.5
Bd Bottom Bracket Drops Mm 62.5 62.5 62.5 62.5
Ht Head Tube Lengths Mm 115 120 130 140
Fl Fork Lengths Mm 527 527 527 527
R Reachs Mm 411 427 445 462
S Stacks Mm 636 640 650 659
Wb Wheel Base Mm 1165 1183 1204 1225
Sh Stand Over Height Mm 630 653 665 677

Tehnologija

Back to overview

TRO-STENSKI ALUMINIJ PROLITE 66

Naš dokazano vrhunski aluminij (6066) je izredno lahek in vzdržljiv. Z uporabo trojnih debelin sten in tehnologije hidroformiranja lahko prilagodimo aluminijaste cevi tako, da zagotovimo najboljše možno razmerje togosti okvirja in njegove teže

Watch Video
Back to overview

HFS - HYDRO FORMING SYSTEM

Cevi se vstavijo v negativen kalup, vroča emulzija vode in olja pa se potisne pod izredno visokim tlakom, kar omogoča, da se cev oblikuje v zelo kompleksne oblike.

Watch Video
Back to overview

X-TAPER KRMILNA CEV

Uporaba stožčaste cevi dimenzij in ležaja 1 1/8 "na vrhu in 1 1/4" ali 1 1/2 "na dnu ustvarja izjemno togost in natančno, zanesljivo navdušujoče krmiljenje.

Watch Video
Back to overview

GLADKI VARI

Včasih tudi imenovano "varjenje z dvojnim prehodom", pomeni da drugi prehod preko osnovnega zvara daje okvirju čisti organski videz. Na prvi pogled boste bili prepričani, da gre za karbonski oprav čeprav je aluminijski.

Watch Video
Back to overview

NOTRANJA NAPELJAVA BOVDNOV

Bovdni napeljavi skozi okvir nudijo sodoben izgled kolesa, medtem ko so kabli ustrezno zaščiteni pred vlago in umazanijo.

Watch Video
Back to overview

PAMETEN VHOD

Kabli, bovdni in zavorne cevi so pritrjeni pod napetostjo, da preprečijo ropotanje, ko so poti ali ceste grobe. Vsi vhodi so popolnoma prilagodljivi za vgradnjo Di2, hidravlične cevi, zavorne kable in bovdni za prestave..itd.

Watch Video
Back to overview

DI2 READY

Kolesa z oznako "DI2 Ready" so predpriravljena za vgradnjo te tehnološke rešitve-predvsem pa omogoča vgradnjo baterije v za to predvideno mesto v okvirju.

Watch Video
Back to overview

F-MOUNT

Opremljena kolesa z "F-Mount" imajo integrirana prtrdilna mesta za blatnike (nekatera kolesa zahtevajo specifičen model blatnikov), kar omogoča hitro in enostavno namestitev.

Watch Video
Back to overview

K-MOUNT DROP-OUT

Nosilec menjalnika posebaj izdelan za Meridine aluminijske okvirje, kateri omogoča vgradnjo integrirano stransko stojalo tipa"hebie". Za optimalno torzijsko togost tudi pri sunkovitem zaviranju-točka več za varnost!

Watch Video
Back to overview

C-MOUNT

Opremljena kolesa s "C-Mount" imajo iintegrirane pritrdilne točke za pritrditev zadnjega prtljažnika (nekatera kolesa zahtevajo specifičen model prtljažnika ), kar omogoča hitro, preprosto in zanesljivo namestitev.

Watch Video
Back to overview

ULITI NOSILCI MOTORJA

Prefinjena oblika je možna le zaradi tehnologije ulivanja, ki ustvarja integriran videz in izjemno močno povezavo med motorjem E-kolesa in okvirjem za boljše delovanje in zanesljivost.

Watch Video
Back to overview

ENERGY GUARD TWIST

Dvokomponentni pokrov baterije, ki je nameščen na kolesih z notranjo vgrajeno baterijo. Baterijo ščiti pred umazanijo in vlago, z mehkejšo zunanjo plastjo, ki absorbira udarce. Mehanizem z vrtljivo ključavnico, ki je enostaven za uporabo, pritrdi pokrov na mestu brez potrebe po orodjih s preprostim in lahkim delovanjem, ki olajša dostop do baterije za polnjenje izven kolesa, vendar preprečuje, da bi pokrov padel, tudi med vožnjo po najbolj zahtevnem terenu.
