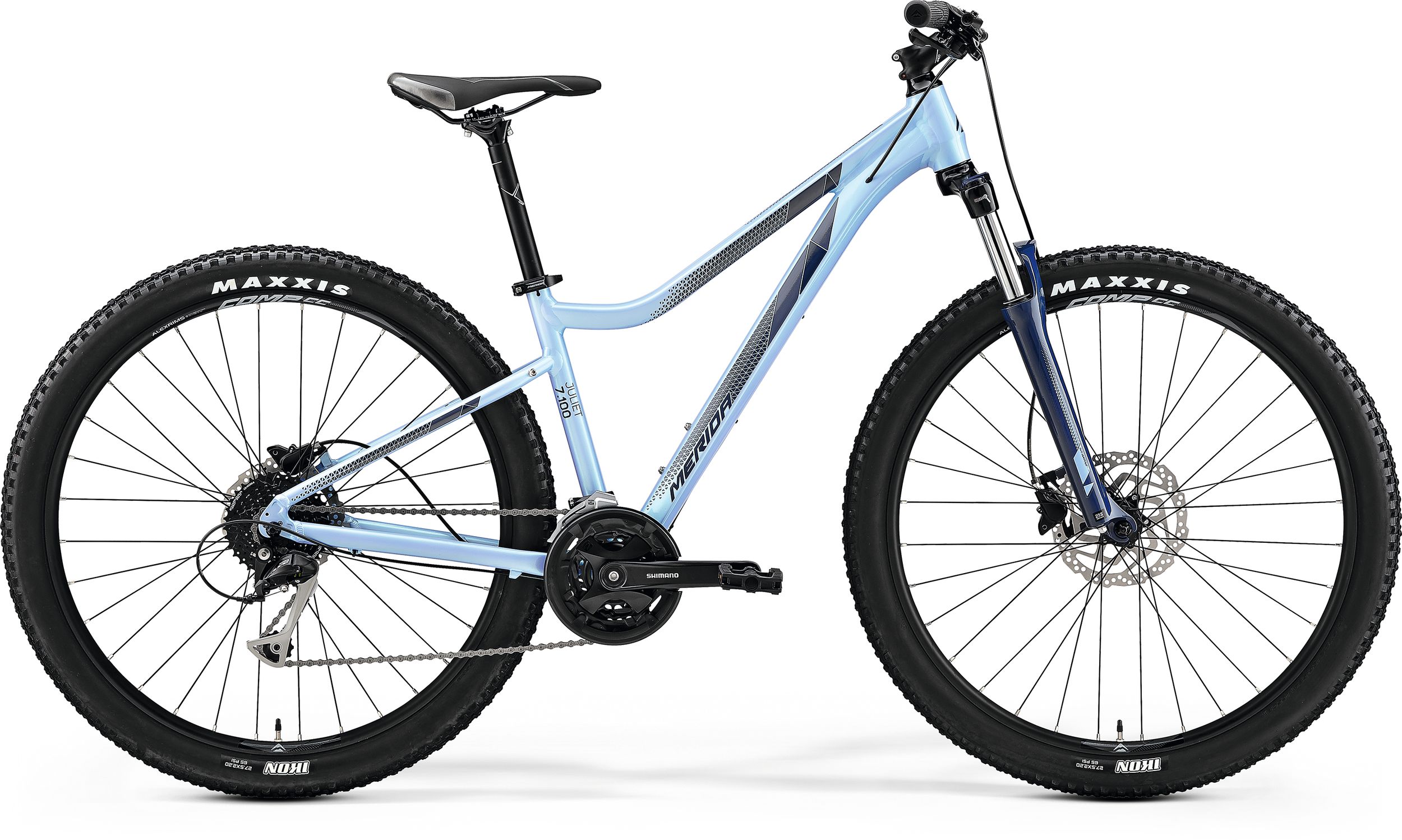

JULIET 7. 100

JULIET 7. 100



Find Dealer Buy now
  • *All specifications listed are subject to change without notice. *Recommended Retail Prices are subject to change without notice.

  • brakes Shimano MT-200
    frame JULIET TFS
    frame size XS, S, M, L
    • Coil
    • 100mm suspension travel
    • Lockout
    color BLUE (DARK BLUE)
    derailleur (f) Shimano M3000
    derailleur (r) Shimano Alivio
    shifter front Shimano Altus
    shifter rear Shimano Altus
    brake lever Shimano MT-200
    brake front Shimano MT-200
    brake rear Shimano MT-200
    chain KMC M99
    • 100x9mm width front hub
    • 32 spoke holes
    • Centerlock
    • 135x9mm width rear hub
    • 32 spoke holes
    • Centerlock
    • 20mm inner width
    • 11-34 teeth
    • 9 speed
    • 27.5x2.2"
    • folding
    • 27.5x2.2"
    • folding
    spokes Black stainless
    • 31.8mm diameter
    • 15° stem angle
    • 660mm width
    • 25mm rise
    headset MERIDA M44PSE Neck
    • 27.2mm diameter
    • 12mm setback
    saddle MERIDA Juliet Sport V

    weighed at frame size S (w/o pedals)

    Bike Frame Geometry Image
    Frame Size XS S M L
    Tyre Sizes 27.5" 27.5" 27.5" 27.5"
    ST seat tube [mm] 343 381 432 470
    TT top tube [mm] 550 560 575 585
    CS chain stay length [mm] 430 430 430 430
    HTA head tube angle [°] 69.5 69.5 70 70
    STA seat tube angle [°] 74.5 74.5 74.5 74.5
    BD bottom bracket drop [mm] 63 63 63 63
    HT head tube [mm] 95 100 105 115
    FL fork length [mm] 493 493 493 493
    R reach [mm] 384 392 405 413
    S stack [mm] 600 605 612 621
    WB wheel base [mm] 1051 1062 1072 1083
    SH stand over height [mm] 603 635 686 715
    Body Height Cm < 163 157 - 173 167 - 183 > 177

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.



    Technologies

    Back to overview

    SMOOTH WELDING

    This is a process we use to give a nice flat finish to our welds instead of the scaled, 'stack of coins' effect TIG welded joints often have. The welder uses the welding torch to go over the joint twice, helping to smooth out the filler material. It takes a lot of skill to do this, but it delivers strong and smart-looking frames that have the appearance of a carbon fibre frame at first look.

    Watch Video
    Back to overview

    INTERNAL CABLE ROUTING

    On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.

    Watch Video
    Back to overview

    DOWN TUBE EXIT

    DOWN TUBE EXIT is a feature seen on some of our frames with internally routed cables. By slightly overlapping the downtube where it connects to the bottom bracket, it leaves a small space that allows cables to exit easily. This means they are easily accessible for routine maintenance or replacement, but it prevents excessive movement and noise that can cause wear and distraction.

    Watch Video
    Back to overview

    RACELITE 61 ALUMINIUM

    We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

    Watch Video
    Back to overview

    TFS - TECHNO FORMING SYSTEM

    Manipulating the tube shape and thickness greatly impacts the appearance, weight and functionality of our aluminium frames. One technology that allows us to do that is TECHNO FORMING, where plain aluminium tubes get mechanically formed by using an external form and an internal metal core. The result, beautifully shaped tubes with varying wall thickness, ready to be used to create our technoformed aluminium frames.

    Watch Video
    Back to overview

    F-MOUNT

    Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

    Watch Video
    Back to overview

    K-MOUNT

    When using your bike in an urban environment, where you might not always have the option to use a specific bike stand, a kickstand is an ideal solution to park your bike safely. Some of our bikes come with a neatly integrated K-MOUNT, which makes fitting a MERIDA kickstand (or any commercial kickstand) easy. And if you don’t want to have a kickstand and prefer the clean appearance of your frame, the K-MOUNT is neatly tucked away underneath your chainstay, difficult to spot if you don’t know it is there.

    Watch Video
    Back to overview

    C-MOUNT

    Similar to our F-MOUNT, where various fixing points for mudguards are part of the frame offering, the C-MOUNT equipped bikes have the fixing points for a rear rack already integrated, making fitting fast, simple and reliable. The C-MOUNTS are an additional feature that improves the day-to-day versatility by adding loading capacity to your bike, ideal for commuting and shopping trips. Please note that some bikes require model-specific rear racks.
