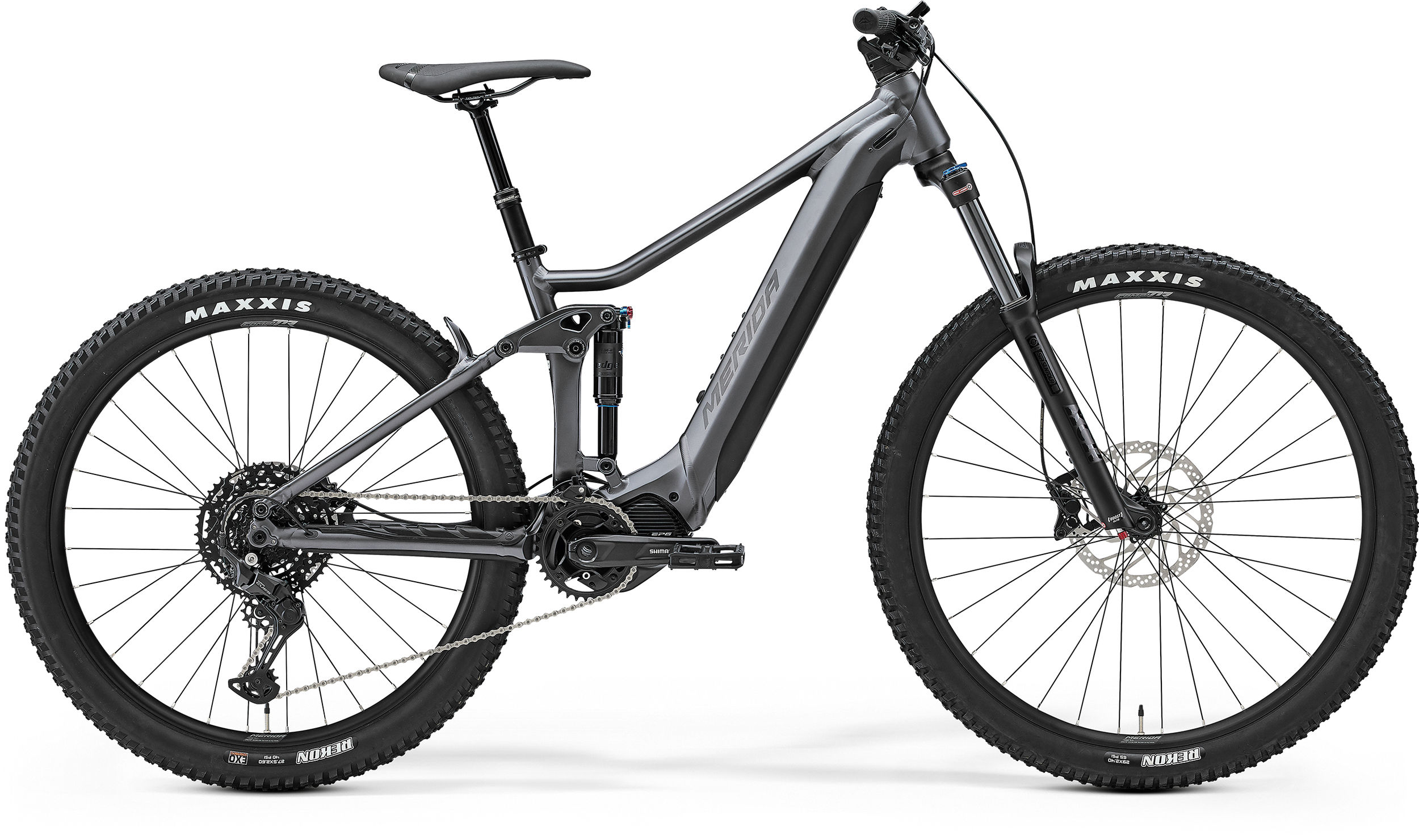

The perfect first trail e-MTB. The eONE-FORTY SE 400 uses our award-winning third-generation aluminium frame to provide impressive performance and huge value. The user-removable 630 Wh battery offers plenty of range, plus a powerful Shimano EP6 drive unit will help you conquer any climb. Thanks to the proven geometry and a mixture of bump-taming 29" front wheel and agile 27.5" rear, it's a fun but capable trail machine, while proven suspension from Suntour and a quality Shimano CUES drivetrain will keep you rolling.
Huge heritage and even better value. Our eONE-FORTY SE models use our third-generation aluminium e-bike frame to provide a wallet-friendly, enduro-ready option to the very latest eONE-FORTY models. By using this proven and award-winning design paired with the latest lightweight EP801 motor from Shimano as well as a range-extending, high-capacity 750 Wh internal battery, it offers everything you need to start your e-MTB journey. A perfectly tuned MTB geometry balances a confident riding position and a 29er/27.5" wheel combo that delivers poise and confidence on the trails, making the eONE-SIXTY SE range the place to go for value and performance.
- Tough all-aluminium chassis with integrated 630 Wh battery
- Updated, lightweight Shimano EP801 drive unit
- Mixed wheel size setup with 140/130 mm travel split
- High-quality Shimano brakes and CUES drivetrain
- Suntour rear shock and fork
- Multiple award and test winning frame geometry
- material: aluminium
- 133 mm suspension travel
- 27.5x2.8" max. wheelsize
- 148x12 mm axle standard
- intube
- Air Boost
- 140 mm
- Tapered
- 51 mm fork offset
- 29x2.4" max. wheelsize
- platform
- 4 piston
- 2 piston
- 165 mm
- 34 teeth
- 11-48 teeth
- 10 speed
- V-mount
- 30.9 mm diameter
- 0 mm setback
- M 100 mm travel seatpost - L/XL 125 mm travel seatpost - XXL 150 mm travel seatpost
- 28 mm inner width
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- 29x2.4"
- wire
- DUAL
- 27.5x2.6"
- wire
- EXO
- 110x15 mm width front hub
- 32 spoke holes
- Centerlock
- 148x12 mm width rear hub
- 32 spoke holes
- Centerlock
- 85Nm
- Taille S: Shimano EN805 504Wh
- Taille S: Prix CHF 4099.-
weighed at frame size M
Frame Size | S | M | L | XL | XXL |
Tire Sizes | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" | 29/27.5" |
St Seat Tubes Mm | 405 | 415 | 430 | 450 | 470 |
Tt Top Tubes Mm | 561 | 581 | 603 | 624 | 645 |
Cs Chain Stays Mm | 439.5 | 439.5 | 439.5 | 439.5 | 439.5 |
Hta Head Tube Angles Deg | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
Sta Seat Tube Angle Deg | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
Bd Bottom Bracket Drops Mm | 25 | 25 | 25 | 25 | 25 |
Ht Head Tube Lengths Mm | 110 | 115 | 120 | 125 | 130 |
Fl Fork Lengths Mm | 551 | 551 | 551 | 551 | 551 |
R Reachs Mm | 410 | 430 | 450 | 469 | 489 |
S Stacks Mm | 622 | 627 | 631 | 635 | 640 |
Wb Wheel Base Mm | 1160 | 1182 | 1204 | 1226 | 1248 |
Sh Stand Over Height Mm | 729 | 730 | 727 | 733 | 747 |
