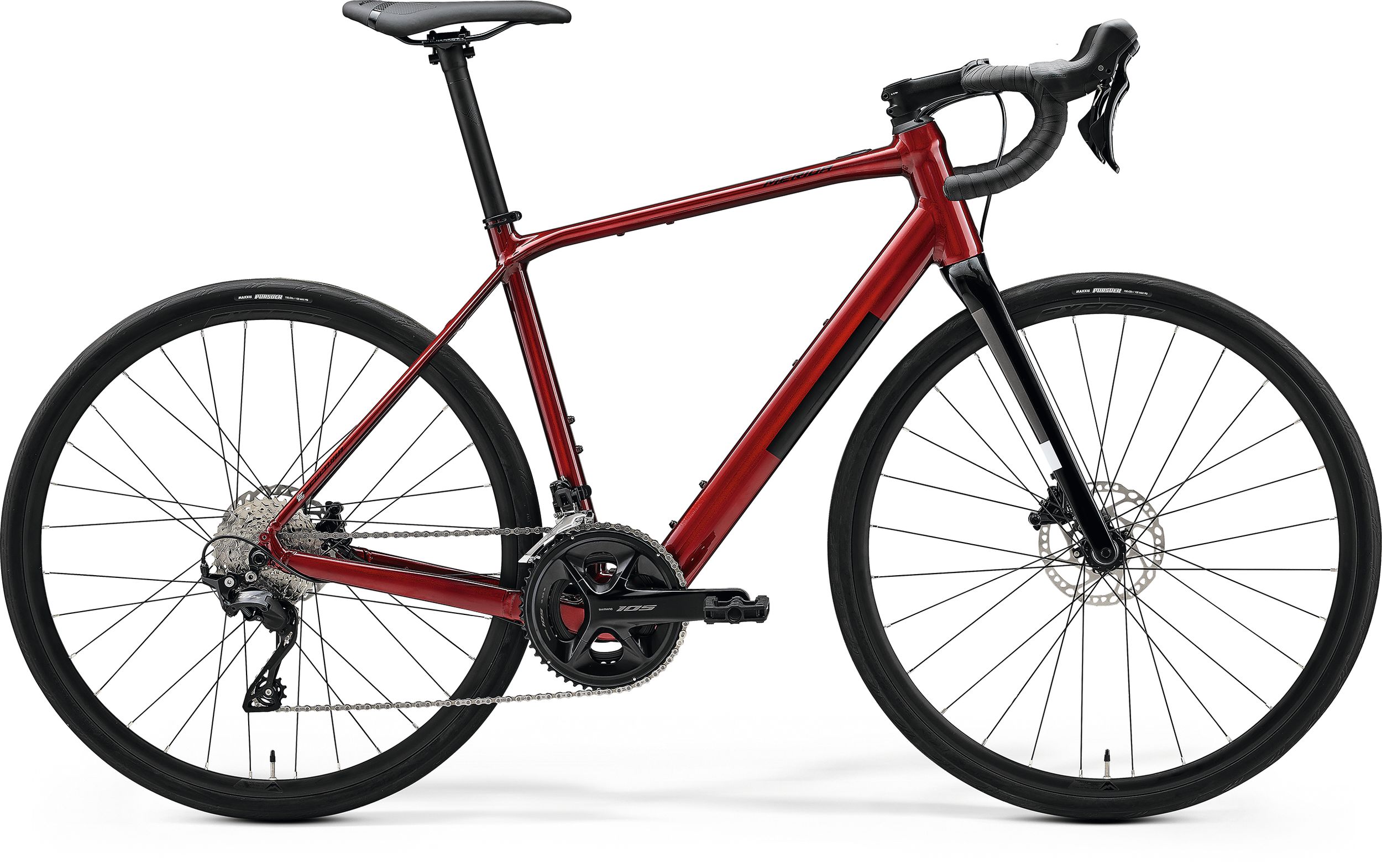

eSCULTURA 400



They can call it cheating if they want to, but if you're riding further and having more fun than ever before, you'll be having the last laugh. Smooth, low drag assistance and natural speed.

Cheating? Not when you're having this much fun. The eSCULTURA 400 brings all the benefits of a pedal-assist motor to a serious road bike, offering up a way to keep up with the pack on the hills without a heavy, draggy feel when you're pedalling above the assistance limit. A 250 Wh battery sits inside the downtube, while the low-drag hub-drive motor works perfectly with Shimano's benchmark 105 groupset and hydraulic disc brakes to deliver a ride that's as sporty as a regular bike.

As even dedicated road riders realise the advantages a little ‘helping hand’ can offer, our eRoad range is spearheaded by this assisted version of our 'classic' SCULTURA. The eSCULTURA is for all the road riders out there who like an active riding style, but are looking for the extra boost to catch up with the bunch and to make the climbs that little bit easier. The MAHLE rear hub motor system gives our eSCULTURA an almost 'non-e-bike' silhouette while delivering natural and almost drag-free pedalling support. You can even use an externally mounted 208 Wh MAHLE Range Extender to boost range. While the eSCULTURA is a dedicated road bike, its comfortable yet sporty geometry and its ample tyre clearance give it real versatility and day-to-day usability.

  • MAHLE ebikemotion X35+ hub motor gives natural feeling assistance
  • Triple butted aluminium frame with built-in 250 Wh battery
  • Efficient, low drag pedalling above assistance limit
  • Sleek 'normal bike' silhouette and low weight
  • Slick Shimano 105 groupset with double chainset
  • 17mm inner width
  • 22mm height aluminium
  • Tubeless ready (tubeless tape and valves not included)
  • material: aluminium
  • 700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize
  • 100x9/135x9 mm axle standard
  • BSA bottom bracket standard
velikost okvirja XS, S, M, L, XL
barva DARK STRAWBERRY (BLACK)
  • carbon
  • max. 700x40C (with fender) wheelsize
sprednji menjalnik Shimano 105 R7100
  • 100x12 mm width front hub
  • 28 spoke holes
  • Centerlock
  • 52-36 teeth
  • 170 mm-XS/S/SM/ML, 175 mm-L/XL
baterija Mahle B1-D 250Wh
  • weighed at frame size M
  • Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
  • 100x12 mm width front hub
  • 28 spoke holes
  • Centerlock
  • material: aluminium
  • 400 mm (XS/S), 420 mm (M/L), 440 (XL)
  • material: aluminium
  • 31.8 mm diameter
  • 5° stem angle
  • 80 mm- XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
Slika gometrije okvirja
Velikost okvirja XS S M L XL
Tire Sizes 28" 28" 28" 28" 28"
St Seat Tubes Mm 470 490 510 530 560
Tt Top Tubes Mm 525 540 555 570 585
Cs Chain Stays Mm 431 431 431 431 431
Hta Head Tube Angles Deg 69.5 70 70.5 71 71.5
Sta Seat Tube Angle Deg 75 75 75 75 75
Bd Bottom Bracket Drops Mm 70 70 70 70 70
Ht Head Tube Lengths Mm 145 160 175 190 205
Fl Fork Lengths Mm 400 400 400 400 400
R Reachs Mm 374 384 395 406 416
S Stacks Mm 565 581 597 613 629
Wb Wheel Base Mm 1032 1044 1055 1066 1076
Sh Stand Over Height Mm 748 767 785 804 830

Tehnologija

Back to overview

TRO-STENSKI ALUMINIJ PROLITE 66

Naš dokazano vrhunski aluminij (6066) je izredno lahek in vzdržljiv. Z uporabo trojnih debelin sten in tehnologije hidroformiranja lahko prilagodimo aluminijaste cevi tako, da zagotovimo najboljše možno razmerje togosti okvirja in njegove teže

Watch Video
Back to overview

HFS - HYDRO FORMING SYSTEM

Cevi se vstavijo v negativen kalup, vroča emulzija vode in olja pa se potisne pod izredno visokim tlakom, kar omogoča, da se cev oblikuje v zelo kompleksne oblike.

Watch Video
Back to overview

X-TAPER KRMILNA CEV

Uporaba stožčaste cevi dimenzij in ležaja 1 1/8 "na vrhu in 1 1/4" ali 1 1/2 "na dnu ustvarja izjemno togost in natančno, zanesljivo navdušujoče krmiljenje.

Watch Video
Back to overview

GLADKI VARI

Včasih tudi imenovano "varjenje z dvojnim prehodom", pomeni da drugi prehod preko osnovnega zvara daje okvirju čisti organski videz. Na prvi pogled boste bili prepričani, da gre za karbonski oprav čeprav je aluminijski.

Watch Video
Back to overview

NOTRANJA NAPELJAVA BOVDNOV

Bovdni napeljavi skozi okvir nudijo sodoben izgled kolesa, medtem ko so kabli ustrezno zaščiteni pred vlago in umazanijo.

Watch Video
Back to overview

DOWN TUBE EXIT

Zagotavlja, da se notranje napeljani bovdni in žice ne morejo prosto gibati vednar osatnejo lahko dostopni za servisiranje.

Watch Video
Back to overview

F-MOUNT

Opremljena kolesa z "F-Mount" imajo integrirana prtrdilna mesta za blatnike (nekatera kolesa zahtevajo specifičen model blatnikov), kar omogoča hitro in enostavno namestitev.

Watch Video
Back to overview

K-MOUNT DROP-OUT

Nosilec menjalnika posebaj izdelan za Meridine aluminijske okvirje, kateri omogoča vgradnjo integrirano stransko stojalo tipa"hebie". Za optimalno torzijsko togost tudi pri sunkovitem zaviranju-točka več za varnost!

Watch Video
Back to overview

C-MOUNT

Opremljena kolesa s "C-Mount" imajo iintegrirane pritrdilne točke za pritrditev zadnjega prtljažnika (nekatera kolesa zahtevajo specifičen model prtljažnika ), kar omogoča hitro, preprosto in zanesljivo namestitev.

Watch Video
Back to overview

PORTAL ZA BOVDNE

MERIDA je zasnovala poseben "portal" za bovdne, ki omogoča, da vsi bovdni iz krmila vstopijo v okvir skozi portal, kar ustvarja čist in neobremenjen videz, omogoča lažjo, močnejšo in bolj aerodinamično strukturo okvirja kot pri običajnih vhodih za kable. Odvisno od modela so kabli speljani povsem znotraj (vključno z oporo in krmilom) ali delno integrirani, kjer kabli vstopajo v okvir pod oporo krmila.

Watch Video
