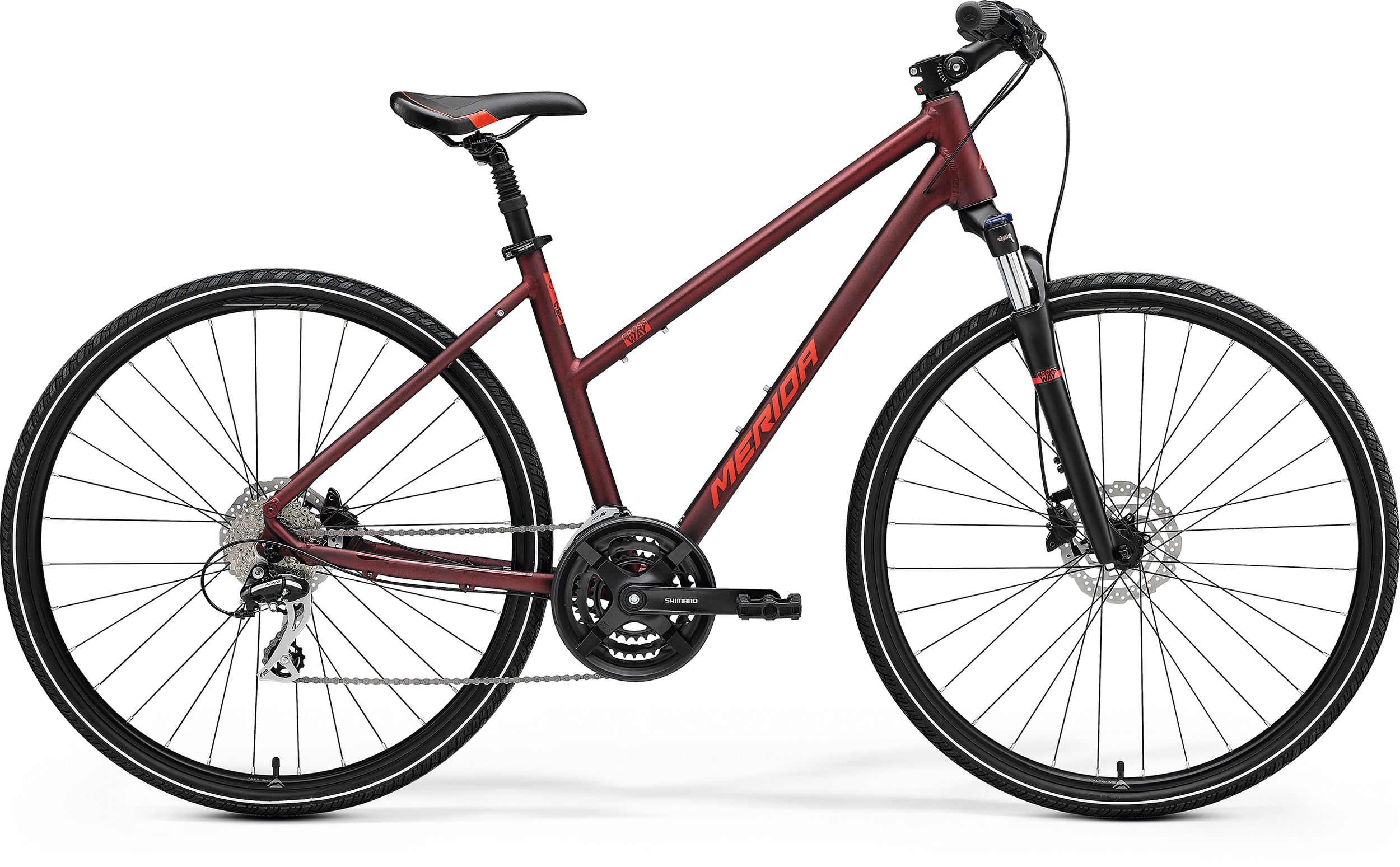

CROSSWAY L 20-D

CROSSWAY L 20-D



Hydraulic disc brake and suspension fork equipped trekking/hybrid bike at an attractive price. Your reliable disc brake equipped companion around town and cross country.

To go fast, you need to be able to slow down. Our CROSSWAY 20D comes equipped with powerful and low maintenance disc brakes that offer reliable stopping power, whatever the conditions or weather. This bike feels at home on the daily commute in the urban jungle as much on the weekend jaunt around the lanes and offers reliable performance at an attractive price. In combination with the powerful disc brakes, the suspension fork offers additional riding comfort and control.

The CROSSWAY family has been the MERIDA range's backbone since its introduction. They are used worldwide and are proven as a reliable, versatile and fun-packed way of getting around. Designed to provide a comfortable place to take in the surroundings thanks to an upright riding position and comfort focused equipment such as suspension fork, suspension seat posts and adjustable stems, they offer the perfect blend of comfort, enjoyment and all-round functionality. They are suitable for fitness training, commuting and leisurely rides through forests and on trails. Made from high-quality, lightweight aluminium with the ability to mount mudguards, racks and kickstands, the CROSSWAY range is the perfect choice for everyday riding. The fitted 700c wheels cover ground quickly, while the extra volume of the 40 mm wide tyres offers puncture protection, grip and comfort. All CROSSWAY models are available as a low step-through frame, making mounting and dismounting straightforward.

  • Lightweight aluminium frame with comfort geometry
  • Lockable suspension fork
  • Hydraulic disc brakes
  • Shimano drivetrain
  • Multiple fixing points for rear rack and fenders
  • Suspension seat post and adjustable stem
  • 17mm inner width
  • material: aluminium
  • material: aluminium
  • 700x50C max. wheelsize
  • 135x9mm axle standard
  • BSA bottom bracket standard
velikost okvirja XXS, XS, S, M, L
barva MATT BURGUNDY RED (RED)
  • Coil
  • 63mm suspension travel
  • lockout
  • 700x50C max. wheelsize
  • BR-MT200 brake caliper
  • BR-MT200 brake caliper
  • BR-MT200 brake caliper
sprednji menjalnik Shimano FD-TY710
zadnji menjalnik Shimano RD-M360
prestave Shimano ST-EF505
  • 100x9mm width front hub
  • 32 spoke holes
  • Centerlock
  • 135x9mm width rear hub
  • 32 spoke holes
  • Centerlock
  • 48-38-28 teeth
  • 170 mm-XXS/SM, 175 mm-ML/XXL
gonilka 170 mm-XXS/SM, 175 mm-ML/XXL
spr. prestavne ročke Shimano ST-EF505
zad. prestavne ročke Shimano ST-EF505
  • 100x9mm width front hub
  • 32 spoke holes
  • Centerlock
  • 135x9mm width rear hub
  • 32 spoke holes
  • Centerlock
sedež MERIDA Cross Sport
  • material: aluminium
  • 660mm width
  • 25mm rise
  • material: aluminium
  • 25.4mm diameter
  • adjustable
  • 100 mm all sizes
Slika gometrije okvirja
Velikost okvirja XXS XS S M L
Tire Sizes 28" 28" 28" 28" 28"
St Seat Tubes Mm 390 430 470 510 550
Tt Top Tubes Mm 560 565 580 590 610
Cs Chain Stays Mm 460 460 460 460 460
Hta Head Tube Angles Deg 70.5 70.5 71 71 71.5
Sta Seat Tube Angle Deg 74 74 73.5 73.5 73
Bd Bottom Bracket Drops Mm 70 70 70 70 70
Ht Head Tube Lengths Mm 130 130 140 155 175
Fl Fork Lengths Mm 468 468 468 468 468
R Reachs Mm 382 387 393 399 406
S Stacks Mm 620 620 631 645 667
Wb Wheel Base Mm 1076 1081 1085 1096 1104
Sh Stand Over Height Mm 639 639 639 639 639

Tehnologija

Back to overview

X-TAPER KRMILNA CEV

Uporaba stožčaste cevi dimenzij in ležaja 1 1/8 "na vrhu in 1 1/4" ali 1 1/2 "na dnu ustvarja izjemno togost in natančno, zanesljivo navdušujoče krmiljenje.

Watch Video
Back to overview

GLADKI VARI

Včasih tudi imenovano "varjenje z dvojnim prehodom", pomeni da drugi prehod preko osnovnega zvara daje okvirju čisti organski videz. Na prvi pogled boste bili prepričani, da gre za karbonski oprav čeprav je aluminijski.

Watch Video
Back to overview

NOTRANJA NAPELJAVA BOVDNOV

Bovdni napeljavi skozi okvir nudijo sodoben izgled kolesa, medtem ko so kabli ustrezno zaščiteni pred vlago in umazanijo.

Watch Video
Back to overview

DOWN TUBE EXIT

Zagotavlja, da se notranje napeljani bovdni in žice ne morejo prosto gibati vednar osatnejo lahko dostopni za servisiranje.

Watch Video
Back to overview

RACELITE 61 ALUMINIJ

MERIDA uporablja najnižjo kakovost aluminija 6061. Prednost tega je v tem, da je le tako mogoče narediti lažje in tehnološko naprednejše okvire. Za izdelavo svetlih in trdih okvirjev uporabljamo dodatno toplotno obdelavo in dvojno debelino sten.

Watch Video
Back to overview

TFS - TECHNO FORMING SYSTEM

Tehnoformiranje je proces mehanskega oblikovanja cevi, ki oblikuje cev z uporabo negativnih kalupov, včasih lahko tudi v kombinaciji z notranjim kovinskim jedrom.

Watch Video
Back to overview

F-MOUNT

Opremljena kolesa z "F-Mount" imajo integrirana prtrdilna mesta za blatnike (nekatera kolesa zahtevajo specifičen model blatnikov), kar omogoča hitro in enostavno namestitev.

Watch Video
Back to overview

K-MOUNT DROP-OUT

Nosilec menjalnika posebaj izdelan za Meridine aluminijske okvirje, kateri omogoča vgradnjo integrirano stransko stojalo tipa"hebie". Za optimalno torzijsko togost tudi pri sunkovitem zaviranju-točka več za varnost!

Watch Video
Back to overview

C-MOUNT

Opremljena kolesa s "C-Mount" imajo iintegrirane pritrdilne točke za pritrditev zadnjega prtljažnika (nekatera kolesa zahtevajo specifičen model prtljažnika ), kar omogoča hitro, preprosto in zanesljivo namestitev.

Watch Video
