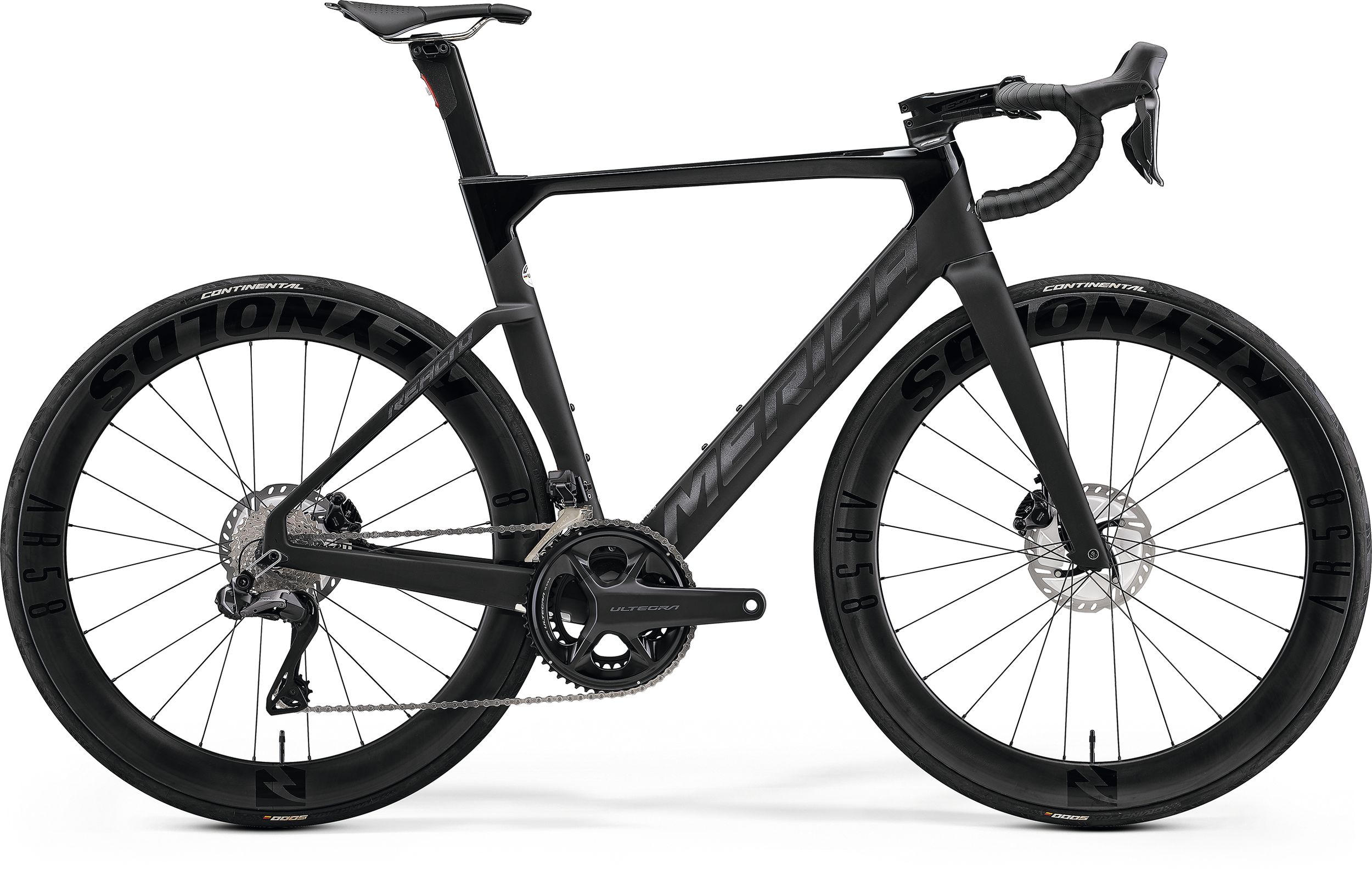

REACTO 8000

REACTO 8000



Built around the new Ultegra 12-speed groupset and the impressive Reynolds AR58 DB carbon wheelset, the 8000 loves to be raced hard but equally enjoys challenging your club buddies on the ups, the downs and the flats.

It's cutting edge frame features like our WIRE PORT cable integration for a clean look and outstanding aerodynamics and our DISC COOLER technology for reliable braking performance even on the longest of descents that give our REACTO 8000 the edge. Combined with the beautifully crafted CF3 carbon frame, the 8000 impresses with remarkable acceleration and power transfer, low weight, impressive aerodynamics, perfect cable integration and outstanding aero bike comfort.

Newly launched in 2021, the latest version of the REACTO took the cycling press by storm. A long string of test wins, perfect scores and awards confirm our successful symbiosis of the race-proven DNA of the previous model with the latest trends and technologies. Cycling Weekly calls it 'without doubt one of the most complete bikes available on the market', Cyclingnews 'an utterly brilliant and faultless machine' and Cycling Plus were 'hugely impressed'. From serious racer via enthusiast to the ambitious road rider, the REACTO is a great bike for many people. Its outstanding aerodynamic performance, reduced weight, sharp handling and super quick acceleration makes it the perfect bike for criterium racers and sprinters. At the same time, the class-leading comfort gives it the ability to play out its aerodynamic advantage also on the cobblestones – or the idyllic but potholed littered lanes of your favourite training ride.

  • Lightweight CF3 carbon aero frame (approx. 1,150 g - in size M)
  • Shimano Ultegra 12-speed Di2 groupset
  • FSA ACR SMR stem/MERIDA EXPERT CW handlebar combination
  • Reynolds Aero 58 DB carbon wheelset with Continental 5000S TR 25 mm tyres
  • MERIDA S-FLEX carbon aero post
  • DISC COOLER technology
  • 100x12mm width front hub
  • 142x12mm width rear hub
  • 21mm inner width
  • 58mm height
  • Centerlock
  • material: carbon
  • Tubeless ready (tubeless tape and valves included)
  • material: carbon
  • 700x30C max. wheelsize
  • 100x12/ 142x12mm axle standard
  • BB86,5 bottom bracket standard
velikost okvirja 3XS, XXS, XS, S, M, L, XL
barva GLOSSY BLACK/MATT BLACK
  • material: carbon
  • 700x30C max. wheelsize
zavorne ročke Shimano Ultegra
sprednji menjalnik Shimano Ultegra Di2
zadnji menjalnik Shimano Ultegra Di2
prestave Shimano Ultegra Disc Di2
  • 52-36 teeth
  • 165 mm-XXS/XS, 170 mm-S, 172.5 mm-M, 175 mm-L/XL
spr. prestavne ročke Shimano Ultegra Disc Di2
zad. prestavne ročke Shimano Ultegra Disc Di2
sedež Prologo Scratch M5
  • material: aluminium
  • 380mm (XXS)
  • 400mm (XS-S)
  • 420mm (M)
  • 440 (L-XL)
  • material: aluminium
  • -6° stem angle
  • 90 mm-XXS/XS, 100 mm-S, 110 mm-M, 120 mm-L/XL
Slika gometrije okvirja
Velikost okvirja 3XS XXS XS S M L XL
Tire Sizes 28" 28" 28" 28" 28" 28" 28"
St Seat Tubes Mm 440 470 500 520 540 560 590
Tt Top Tubes Mm 505 520 536 545 560 575 590
Cs Chain Stays Mm 408 408 408 408 408 408 408
Hta Head Tube Angles Deg 70.5 70.5 72 72.5 73.5 73.5 74
Sta Seat Tube Angle Deg 75.5 74.5 74 74 73.5 73 73
Bd Bottom Bracket Drops Mm 70 70 70 66 66 66 66
Ht Head Tube Lengths Mm 100 105 112 128 140 155 176
Fl Fork Lengths Mm 385 385 385 385 385 385 385
R Reachs Mm 373 377 384 390 395 400 409
S Stacks Mm 512 517 529 542 557 571 593
Wb Wheel Base Mm 979 985 983 990 990 999 1010
Sh Stand Over Height Mm 727 746 771 792 810 826 853

Tehnologija

Back to overview

X-TAPER KRMILNA CEV

Uporaba stožčaste cevi dimenzij in ležaja 1 1/8 "na vrhu in 1 1/4" ali 1 1/2 "na dnu ustvarja izjemno togost in natančno, zanesljivo navdušujoče krmiljenje.

Watch Video
Back to overview

NOTRANJA NAPELJAVA BOVDNOV

Bovdni napeljavi skozi okvir nudijo sodoben izgled kolesa, medtem ko so kabli ustrezno zaščiteni pred vlago in umazanijo.

Watch Video
Back to overview

NANO MATRIX KARBON

Da bi zaščitili celovitost karbonskih okvirjev so vlakna vezana skupaj z epoksidno smolo in dodanimi nano delci, kar povečuje odpornost na udarce za 40%.

Watch Video
Back to overview

AWS

Pri ustvarjanju posameznih ogljikovih elementov se uporablja napihljiv mehur, ki zagotavlja, da v cevi ni gub, saj lahko te dodajo težo in ustvarijo šibkost. Rezultat je svetlejši, trdnejši in močnejši okvir.

Watch Video
Back to overview

NACA FASTBACK PROFIL CEVI

Aerodinamika temelji na profilu NACA0028 v obliki vodne kaplje (Nacionalni svetovalni odbor za aeronavtiko), ki je na koncu "odrezan". Zrak se giblje okrog cevi, kot da je manjkajoči zadnji del solze še vedno tam, pri tem pa zmanjšamo težo saj je pristnega manj materiala.

Watch Video
Back to overview

HLAJENJE DISKOV

Kovani aluminijasti del pod sprednjo in / ali zadnjo čeljustjo, ki omogoča, da se toplota odvaja preko CNC-frezanih hladilnih reber. Preskusi kažejo, da se temperature znižajo za približno 35%, čas hlajenja pa se skrajša, kar izboljša učinkovitost zavor.

Watch Video
Back to overview

NOTRANJA OBJEMKA SEDEŽA

Oblikovanje koles za WorldTour je podobno kot pri F1; navidezno nepomembne podrobnosti lahko pripeljejo do prihranka pomembnih sekund. Integrirano vpenjanje sedežne opore zmanjša turbulenco na zgornji cevi.

Watch Video
Back to overview

PORTAL ZA BOVDNE

MERIDA je zasnovala poseben "portal" za bovdne, ki omogoča, da vsi bovdni iz krmila vstopijo v okvir skozi portal, kar ustvarja čist in neobremenjen videz, omogoča lažjo, močnejšo in bolj aerodinamično strukturo okvirja kot pri običajnih vhodih za kable. Odvisno od modela so kabli speljani povsem znotraj (vključno z oporo in krmilom) ali delno integrirani, kjer kabli vstopajo v okvir pod oporo krmila.

Watch Video
