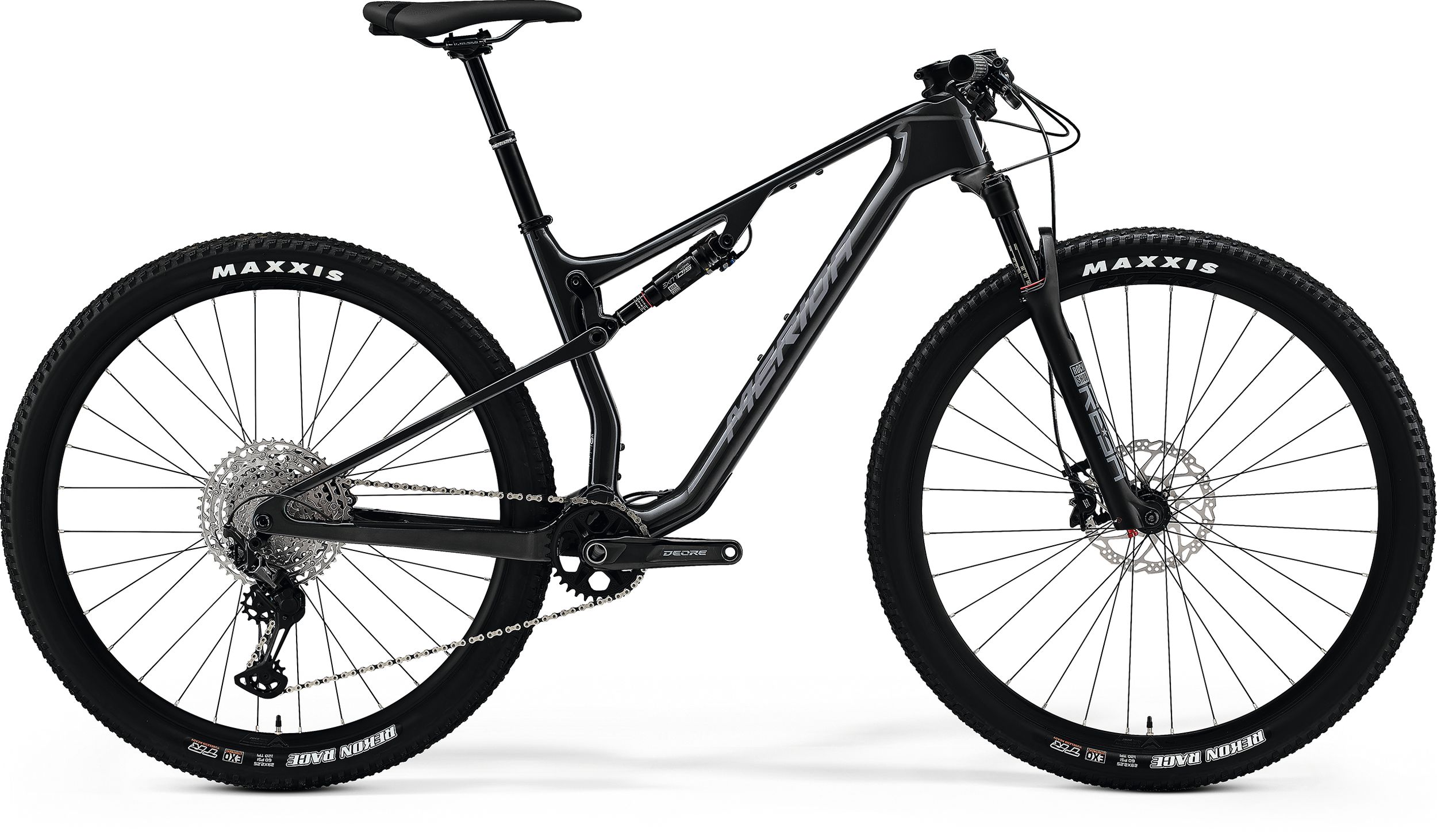

The life of the privateer cross-country racer is the hardest one on the grid; delivering top-level performance but without top-level resources. That's where the NINETY-SIX XT RC comes in with a race-ready package of a lightweight CF4 carbon frame married to components that hit that sweet spot between performance and cost. Shimano's benchmark 12-speed XT drivetrain needs no introduction, while Fox' proven 32 SC fork and float shock serve up their 100 mm of travel, lap after lap. Your rivals will get bored of seeing the back of you.
The NINETY-SIX is the latest incarnation of our former World Cup proven XC and marathon machine. It inherits the forward-surging race genes of the old NINETY-SIX and combines it with a new readiness and ability to tackle today’s demanding XC and marathon courses. The carbon fibre frame platform and P-FLEX suspension is the perfect basis for a fun-packed, fast and trail loving short travel full suspension machine that helps define what a modern cross-country race bike should be. It's able to take on the rougher than ever world-class race tracks as well as the trail riders who want hyper-speed climbing with the ability to descend like never before. For those that want a cross-country bike for race duties rather than high-speed trail fun, the RC models deliver a short travel punch with a 100 mm fork in the front, super fast rolling tyres and a lighter front brake.
- Lightweight CF4 carbon frame with 100 mm of travel and P-FLEX technology
- Shimano's proven 12-speed XT drivetrain
- Modern aggressive geometry with dropper seatpost
- Fox Performance 32 SC fork and Float suspension hits the bang for buck sweet spot
- Fast rolling Maxxis tyres
- Dual remote lockouts for maximum efficiency
- 100 mm suspension travel
- material: carbon
- 29x2.35" max. wheelsize
- 148x12 mm axle standard
- BSA bottom bracket standard
- remote lockout
- Air
- 100 mm suspension travel
- Tapered
- Remote lockout
- 44 mm fork offset
- 32 teeth
- 170 mm-S, 175 mm-M up
- 10-51 teeth
- 12 speed
- 2 piston
- 2 piston
- 180 mm
- 160 mm
- Upper and lower IPS sealing
- Multi Release
- 29x2.25"
- fold
- TR EXO 120 TPI
- 29x2.25"
- fold
- TR EXO 120 TPI
- 22.8 mm inner width
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- including removeable lever, 6/4 mm allen key
- 30.9 mm diameter
- 0 mm setback
- S/M/L/XL: 100 mm travel seatpost
- V-mount
- incl. MERIDA minitool
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
Ramengröße | S | M | L | XL |
Laufradgrösse | 29" | 29" | 29" | 29" |
St Seat Tubes Mm | 400 | 440 | 470 | 500 |
Tt Top Tubes Mm | 576 | 596 | 619 | 643 |
Cs Chain Stays Mm | 435 | 435 | 435 | 435 |
Hta Head Tube Angles Deg | 68.5 | 68.5 | 68.5 | 68.5 |
Sta Seat Tube Angle Deg | 76.5 | 76.5 | 76 | 76 |
Bd Bottom Bracket Drops Mm | 45 | 45 | 45 | 45 |
Ht Head Tube Lengths Mm | 95 | 95 | 105 | 115 |
Fl Fork Lengths Mm | 503 | 503 | 503 | 503 |
R Reachs Mm | 433 | 453 | 473 | 493 |
S Stacks Mm | 585 | 585 | 595 | 604 |
Wb Wheel Base Mm | 1126 | 1146 | 1169 | 1193 |
Sh Stand Over Height Mm | 730 | 731 | 736 | 738 |
