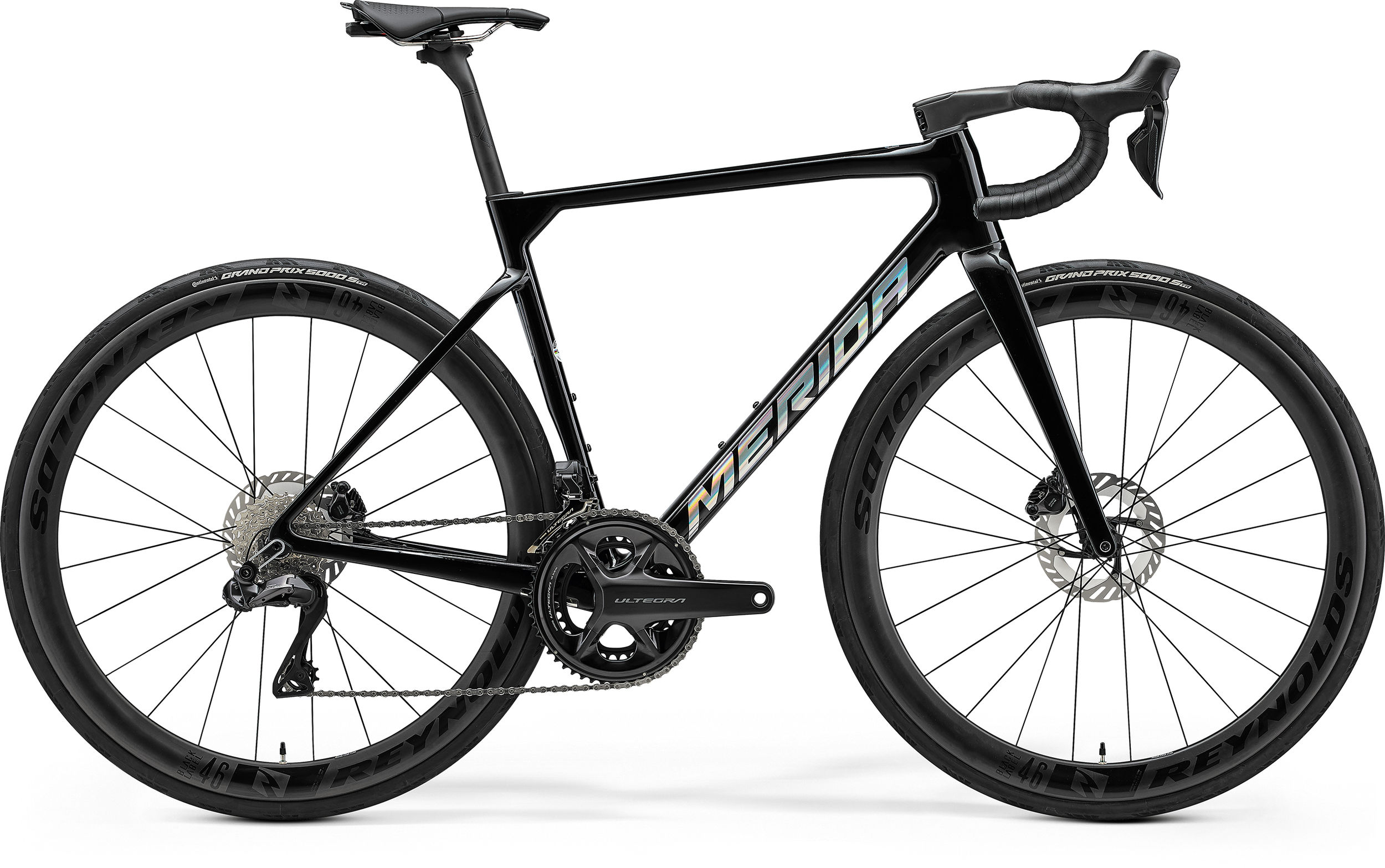

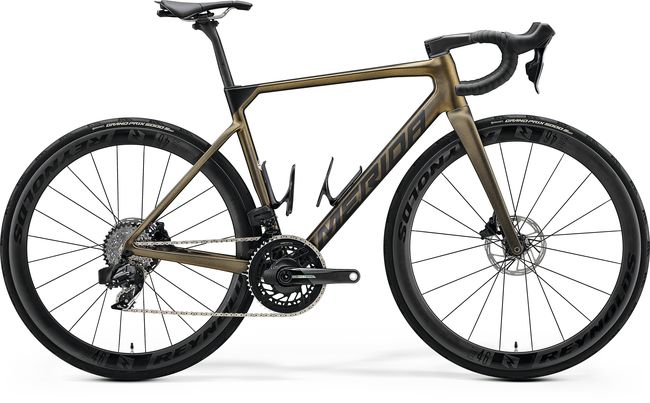

Savršena kombinacija male težine, oštrog rukovanja, aerodinamičke učinkovitosti i udobnosti vodeće u klasi - dobrodošli u najnoviju SCULTURA 9000. Opremljena nekim od najboljih komponenti iz Shimana, Reynoldsa i Continentala, SCULTURA 9000 je spremna za utrke kakve jesu na vašim izazovnim klupskim stazama i dugim treninzima na otvorenoj cesti. I iznad svega, Cycling Weekly je verziju za 2024. okrunio 'Najboljim trkaćim biciklom godine 2024.'.
Peta generacija naše lagane jurilice spaja izvanrednu upravljivost s poboljšanom udobnošću i još aerodinamičnijom šasijom. Zahvaljujući uključivanju odabranih aero detalja s našeg testa i nagrađivanog REACTO aero motocikla, SCULTURA je najaerodinamičnija verzija ikada. Ipak, ostaje vjeran svojoj laganoj težini, agilnosti i udobnosti vozača; zapravo podiže ove čimbenike na višu razinu, toliko da mu je Cycling Weekly dodijelio vrlo traženu nagradu 'Najbolji trkaći bicikl godine 2024'. SCULTURA pokazuje izvanrednu usklađenost, pružajući vozaču najbolju udobnost vožnje u klasi koja će pomoći da tijelo ostane svježe za završni sprint ili uspon. Dostupan u verzijama karbonskog okvira CF5 i CF3, obje dijele svoju geometriju s REACTO dokazanim na svjetskoj turneji, naš klasični cestovni bicikl kombinira izvanrednu udobnost s ubrzanjem poput whippeta i pedigreom koji je vodeći u klasi.
- Super-light CF5 carbon frame (approx. 822 g - in size M) with race-proven (identical to REACTO) geometry
- Shimano Ultegra Di2 12-speed groupset
- MERIDA TEAM SL 1P one-piece cockpit
- Reynolds BL 46 EXPERT carbon wheelset with Continental 5000S TR 28 mm tyres
- MERIDA S-FLEX carbon seat post
- DISC COOLER technology
Nagrade i mediji
- material: carbon
- 700x30C max. wheelsize
- 100x12/ 142x12mm axle standard
- Pressfit 86,5
- material: carbon
- 700x30C max. wheelsize
- Hydraulic disc
- 160mm
- VP-MRBHB (OP-203 neck)
- 27.2mm diameter
- 15mm setback
- Carbon
- S-Flex
- V-mount adapter
- incl. MERIDA minitool
- 52-36 teeth
- 165 mm-3XS-XXS, 170 mm-XS, 172.5 mm-S/M/L, 175 mm-XL
- 11-30 teeth
- 12 speed
- Pressfit 86.5
- 142x12mm width rear hub
- 21mm inner width
- 46mm height
- Centerlock
- Shimano HG
- material: carbon
- Tubeless ready (tubeless tape and valves included)
- 700x28C
- fold
- tubeless ready
- 700x28C
- fold
- tubeless ready
- including removable lever
- 6/4mm allen key
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
Veličina rame | 3XS | XXS | XS | S | M | L | XL |
Tire Sizes | 28" | 28" | 28" | 28" | 28" | 28" | 28" |
St Seat Tubes Mm | 400 | 435 | 458 | 481 | 501 | 521 | 550 |
Tt Top Tubes Mm | 505 | 520 | 535 | 545 | 560 | 575 | 590 |
Cs Chain Stays Mm | 408 | 408 | 408 | 408 | 408 | 408 | 408 |
Hta Head Tube Angles Deg | 70.5 | 70.5 | 72 | 72.5 | 73.5 | 73.5 | 74 |
Sta Seat Tube Angle Deg | 75.5 | 74.5 | 74 | 74 | 73.5 | 73 | 73 |
Bd Bottom Bracket Drops Mm | 70 | 70 | 70 | 66 | 66 | 66 | 66 |
Ht Head Tube Lengths Mm | 100 | 105 | 112 | 128 | 140 | 155 | 176 |
Fl Fork Lengths Mm | 385 | 385 | 385 | 385 | 385 | 385 | 385 |
R Reachs Mm | 373 | 377 | 383 | 390 | 395 | 400 | 409 |
S Stacks Mm | 512 | 517 | 529 | 542 | 557 | 571 | 593 |
Wb Wheel Base Mm | 979 | 985 | 982 | 989 | 990 | 1000 | 1010 |
Sh Stand Over Height Mm | 700 | 721 | 745 | 765 | 782 | 800 | 823 |
Broj | Broj stavke | Naziv | Info | Komadi | Okretni moment NM |
1 | A2347000026 | COVER | for seatpost clamp | 1 | |
2 | A2247000120 | CLAMP | for seatpost | 1 | 4~5 |
3 | A2136000070 | MOUNT | for FD | 1 | |
4 | A2298000198 | SCREW | M5x0.8 L16mm | 2 | 4~5 |
5 | A2143000095 | CABLE PLUG | for Di2 | 1 | |
6 | A2143000130 | BLIND PLUG | 1 | ||
7 | A2164000071 | DISC COOLER | rear; for FM160 only | 1 | |
8 | A2322000037 | PROTECTOR | for chain stay | 1 | |
9 | A2143000121 | CABLE PLUG | for Di2 | 1 | |
10 | A2143000082 | CABLE PLUG | for mechanical | 1 | |
11 | A2143000131 | BLIND PLUG | 1 | ||
12 | A2311000104 | RD HANGER | DH-068 for ROAD-RD | 1 | |
13 | A2311000103 | RD HANGER | DH-067 for SHIMANO direct mount | 1 | |
14 | A2300000129 | SCREW | M3x0.5 L10mm | 1 | 2~3 |
15 | A2164000070 | DISC COOLER | front; for FM160 only | 1 | |
16 | A2221000047 | BEARING | MH-P16 | 1 | |
17 | A2221000053 | BEARING | MH-P22 | 1 | |
18 | A2029000036 | TUBE | foam; ID6mm L 400mm | 1 | |
19 | A2029000037 | TUBE | foam; ID6mm L 450mm | 1 | |
20 | A2002000103 | THRU AXLE | EXPERT SL; L=120mm M12x1.5 TL=12mm | 1 | |
21 | A2298000059 | SCREW | M5x0.8 L15mm | 4 | 3~4 |
22 | A2002000152 | THRU AXLE | EXPERT SL; L=162.5mm M12x1.5 TL=12mm | 1 | |
23 | A2029000080 | TUBE | woven; L50mm for size XXS | 1 | |
23 | A2029000056 | TUBE | woven; L60mm for size XS | 1 | |
23 | A2029000057 | TUBE | woven; L70mm for size S | 1 | |
23 | A2029000058 | TUBE | woven; L90mm for size M | 1 | |
23 | A2029000059 | TUBE | woven; L105mm for size L | 1 | |
23 | A2029000060 | TUBE | woven; L125mm for size XL | 1 | |
24 | A2054000107 | EXPANDER | for fork steerer ID 23.6mm | 1 | 6~8 |
