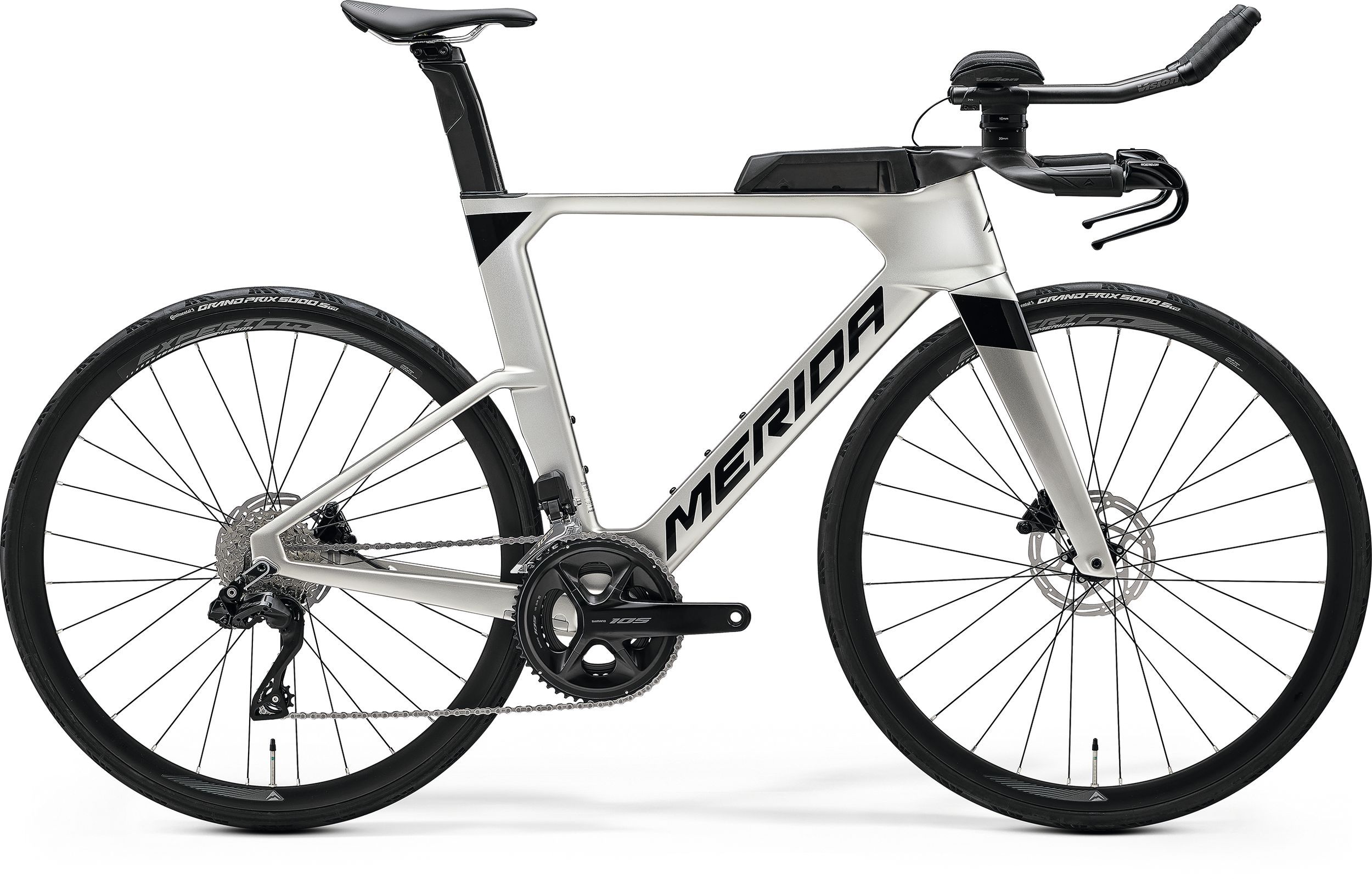

Slicing through the wind and finding the most efficient position is key when chasing the clock in the middle discipline of a triathlon. With the benefit of one of the most advanced triathlon frames, heavily influenced by World Tour proven time trial bikes, the TIME WARP TRI 5000 is the perfect starting point for chasing your personal best. Equipped with a height and position adjustable tri-cockpit, a super smooth and fast shifting Shimano 105 Di2 drivetrain and precise hydraulic disc brakes, the 5000 is your perfect two-wheeled triathlon partner.
Inspired by our World Tour proven TIME WARP TT time trial machine, our triathlon-specific TIME WARP TRI perfectly combined aerodynamics, efficiency and comfort to give you the edge in the middle discipline of your favourite sport. Equipped with easy-to-operate and ultra-reliable disc brakes and the latest high and position adjustable armrests, the TIME WARP TRI lets you find your most efficient position for a variety of courses as well as keeps you fresh and ready to attack your run. A high-end carbon frame, slip-streamed disc brake integration and perfectly incorporated additional storage capacity round up the TIME WARP TRI offering and help to keep weight and aerodynamic drag super low.
- Super-light CF5 carbon triathlon frame and fork
- MERIDA EXPERT CW wheelset
- Hydraulic RIVER TRIVA disc brakes with Shimano Dura-Ace tri-specific levers
- Vision Metron S-BEND height and position adjustable tri-specific armrests
- Full cable integration and additional top tube storage bento box
- Shimano 105 12-speed Di2 drivetrain with tri-specific shifting options
- 19mm inner width
- 30mm height
- material: aluminium
- Tubeless ready (tubeless tape and valves not included)
- material: carbon
- 700x30C max. wheelsize
- 100x12/ 142x12mm axle standard
- Pressfit 86,5
- material: carbon
- 700x30C max. wheelsize
- Hydraulic disc
- 160mm
- Hydraulic disc
- Hydraulic disc
- 100x12mm width front hub
- 28 spoke holes
- Centerlock
- 12x142mm width rear hub
- 28 spoke holes
- Centerlock
- 52-36 teeth
- 165 mm-XS, 170 mm-S/M, 172,5 mm-L
- 700x28C
- fold
- tubeless ready
- 700x28C
- fold
- tubeless ready
- 100x12mm width front hub
- 28 spoke holes
- Centerlock
- 12x142mm width rear hub
- 28 spoke holes
- Centerlock
- 6% recycled and 23% nature material
- V-mount
- incl. MERIDA minitool
| Velikost okvirja | XS | S | M |
| Tire Sizes | 28" | 28" | 28" |
| St Seat Tubes Mm | 460 | 500 | 540 |
| Tt Top Tubes Mm | 490 | 510 | 550 |
| Cs Chain Stays Mm | 415 | 415 | 415 |
| Hta Head Tube Angles Deg | 71 | 72 | 72 |
| Sta Seat Tube Angle Deg | 77 | 76 | 76 |
| Bd Bottom Bracket Drops Mm | 55 | 55 | 70 |
| Ht Head Tube Lengths Mm | 110 | 130 | 130 |
| Fl Fork Lengths Mm | 371 | 371 | 371 |
| R Reachs Mm | 376 | 381 | 417 |
| S Stacks Mm | 496 | 518 | 533 |
| Wb Wheel Base Mm | 984 | 988 | 1022 |
| Sh Stand Over Height Mm | 752 | 781 | 799 |
| Number | Item Number | Name | Info | Pieces | Torque NM |
| 1 | A2161003037 | BUMPER | for steering stop pin | 1 | |
| 2 | A2258000215 | CABLE PLUG | for rear brake, front brake and Di2 | 1 | |
| 3 | A2161000052 | STORAGE BOX | for top tube | 1 | |
| 4 | A2298000061 | SCREW | M5x0.8 L15mm | 2 | 3~4 |
| 5 | A2300000259 | SCREW | M6x1 L45mm | 2 | 10~12 |
| 6 | A2248000030 | CLAMP | for saddle rail; right outer part | 1 | |
| 7 | A2248000034 | CLAMP | for saddle rail; right inner part | 1 | |
| 8 | A2298000148 | SCREW | M5xP08 L12mm | 2 | 6~8 |
| 9 | A2248000035 | CLAMP | for saddle rail; left inner part | 1 | |
| 10 | A2248000031 | CLAMP | for saddle rail; left outer part | 1 | |
| 11 | A2161000197 | COVER | for FLIP FLOP HEAD gap | 1 | |
| 12 | A2029000075 | COVER | for seatpost | 1 | |
| 13 | A2347000030 | COVER | for seatpost clamp | 1 | |
| 14 | A2247000155 | CLAMP | for seatpost | 1 | 4~5 |
| 15 | A2136000092 | MOUNT | for FD | 1 | |
| 16 | A2298000357 | SCREW | M4x0.7 L16mm | 2 | 4~5 |
| 17 | A2322000042 | PROTECTOR | for chain stay | 1 | |
| 18 | A2311000103 | RD HANGER | DH-067 for SHIMANO direct mount | 1 | |
| 19 | A2143000155 | CABLE PLUG | for Di2 | 1 | |
| 20 | A2300000129 | SCREW | M3x0.5 L10mm | 1 | 2~3 |
| 21 | A2350001359 | FORK | 1 | ||
| 22 | A2073000552 | SEATPOST | L300mm; with FLIP FLOP HEAD | 1 | |
| 23 | A2054000107 | EXPANDER | for fork steerer ID 23.6mm | 1 | 6~8 |
| 24 | A2191000209 | HEADSET | MERIDA WARP TT (MH-P03/MH-P22) | 1 | |
| 25 | A2002000103 | THRU AXLE | EXPERT SL; L=120mm M12x1.5 TL=12mm | 1 | |
| 26 | A2298000059 | SCREW | M5x0.8 L15mm | 5 | 3~4 |
| 27 | A2311000104 | RD HANGER | DH-068 for ROAD-RD | 1 | |
| 28 | A2002000152 | THRU AXLE | EXPERT SL; L=162.5mm M12x1.5 TL=12mm | 1 | |
| 29 | A2029000037 | TUBE | foam; ID6mm L 450mm | 1 |
