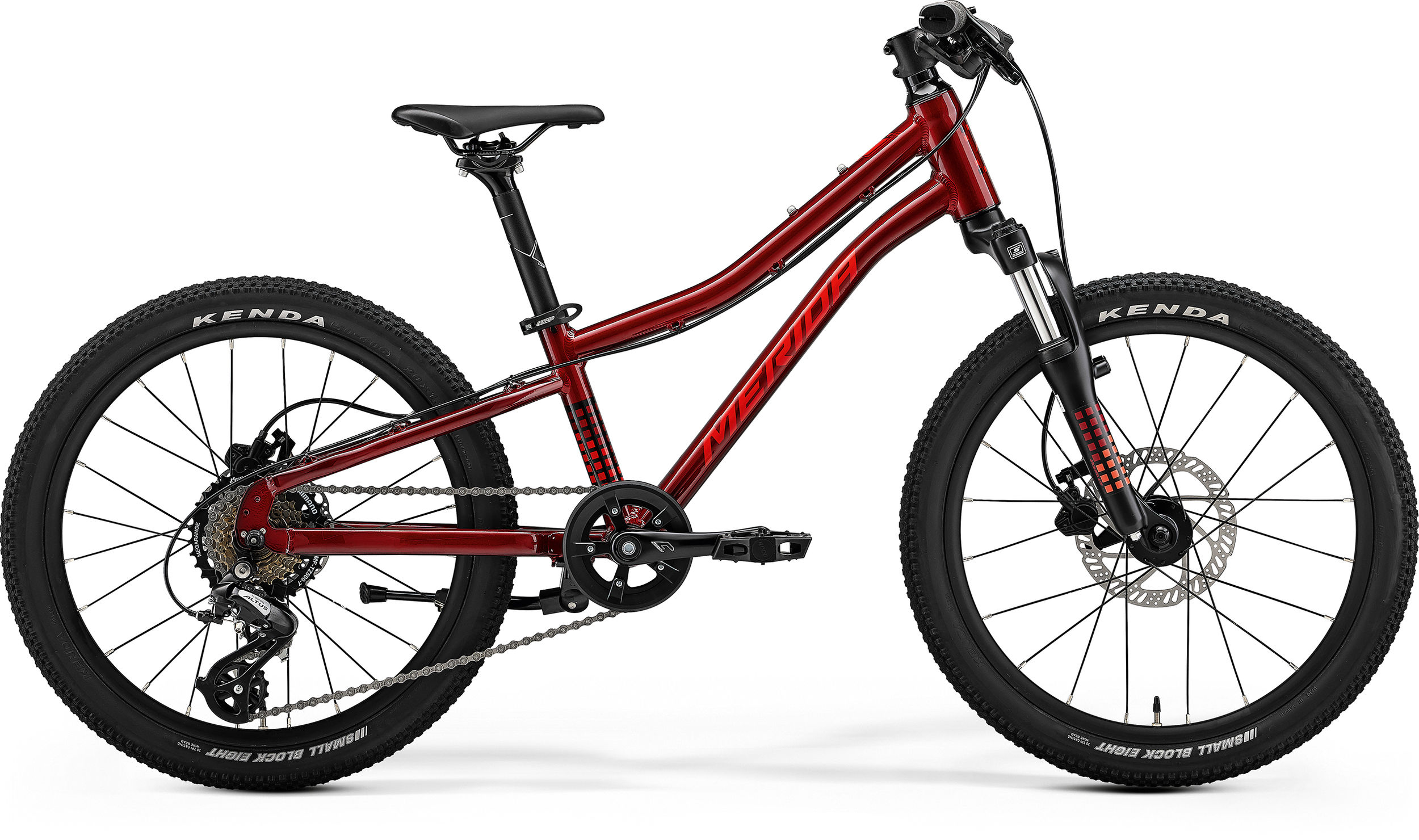

MATTS J. 20



All the same quality and attention to detail as our adult bikes, just in a lightweight package that’s designed around the specific needs of kids. Maximum 20" wheeled fun, all the time.
HÄNDLER SUCHEN

Adult riders know all too well that having the right equipment is essential to enjoying riding - so why do people accept low quality, heavy and unreliable kit for their kids? The MATTS J20 delivers the same quality ride as our adult bikes because it uses the same advanced aluminium frame technology, along with high-quality, big brand equipment such as the smooth shifting Shimano drivetrain and SR Suntour fork with custom tuned spring. Suits heights from approx. 109-129 cm tall.

Our MATTS J range is designed for the heroes of tomorrow, which is why we put all the know-how gained from years of making adult bikes into lightweight, high-quality machines for kids to enjoy. High-quality components chosen specifically for the needs of children are married to our aluminium frames that are created with the same painstaking attention to detail and quality of finish as the rest of our bikes. That’s the only way to guarantee that young riders get the same enjoyment of cycling, safe in the knowledge that their bike will never let them down. Whatever your age, your level of ability or your size, we have the perfect first MERIDA ready for you. See you on the start line!

  • Lightweight double butted aluminium frame
  • 20” wheels with fast rolling tyres
  • Suspension fork
  • Shimano drivetrain
  • Hydraulic disc brakes
  • Kid specific finishing kit
  • 40 mm suspension travel
  • material: aluminium
  • 20x2.4" max. wheelsize
  • 135x9/100x9 mm axle standard
  • BSA bottom bracket standard
Grössen 10"
Farbe MATT MINT (PURPLE/WHITE/BLACK)
  • Custom coil
  • 40 mm suspension travel
  • 20x2.2" max. wheelsize
Schaltwerk Shimano RD-M310
Schalthebel hinter Shimano SL-M315-7
  • 28 teeth
  • MAT Aluminium
  • 127 mm
Innenlager FSA TH-7420ST, 68-124
Kette KMC NS8
  • 14-34 teeth
  • 7 speed
  • material: aluminium
  • 620 mm width
  • 0 mm rise
Fahrradgriffe MERIDA EXPERT JR
  • material: aluminium
  • 31.8 mm diameter
  • 6° stem angle
  • 60 mm
Steuersatz FSA NO.10P Neck15
Sattel MERIDA COMP JR
  • 27.2 mm diameter
  • 0 mm setback
  • material: aluminium
  • material: aluminium
Speichen Black steel
Schlauch F.V lite
  • 100x9 mm width front hub
  • 20 spoke holes
  • 135x9 mm width rear hub
  • 24 spoke holes
Pedale Marwi SP-202
Fahrradständer kickstand adjustable alloy
Hardware Dacromet steel

weighed at frame size UNI

  • Total weight of bike, rider and luggage
Bike Frame Geometry Image
Frame Size 10"
Tire Sizes 20"
St Seat Tubes Mm 240
Tt Top Tubes Mm 445
Cs Chain Stays Mm 360
Hta Head Tube Angles Deg 68
Sta Seat Tube Angle Deg 72
Bd Bottom Bracket Drops Mm 20
Ht Head Tube Lengths Mm 120
Fl Fork Lengths Mm 340
R Reachs Mm 305
S Stacks Mm 432
Wb Wheel Base Mm 872
Sh Stand Over Height Mm 483

Um Produktions- und Lieferzeiten möglichst kurz zu halten, sind wir mitunter gezwungen, Spezifikationen in letzter Minute anzupassen. Bitte beachten Sie, dass sich diese Änderungen möglicherweise nicht auf den Produktseiten und Produktbildern widerspiegeln.

Technologies

Back to overview

RACELITE 61 ALUMINIUM

Leichtes und hochwertiges Aluminium 6061 aus der Luftfahrt ist bei uns das Minimum. Mit zusätzlicher Wärmebehandlung und doppelt konifizierten Rohren können wir damit leichte, steife Rahmen auf der Höhe der Zeit produzieren.

Watch Video
Back to overview

F-MOUNT

Mit „F-Mount“ ausgestattete Fahrräder verfügen über integrierte Befestigungsteile für Schutzbleche, die die Montage schnell und einfach machen (einige Fahrräder benötigen modellspezifische Schutzbleche).

Watch Video
Back to overview

K-MOUNT DROP-OUT

Integrierte Befestigungsbasis an der Kettenstrebe zur Aufnahme eines MERIDA-Seitenständers.

Watch Video
Back to overview

C-MOUNT

Mit „C-Mount“ ausgestattete Fahrräder sind mit integrierten Befestigungspunkten für einen Gepäckträger ausgestattet, was die Montage schnell, einfach und verlässlich macht (einige Fahrräder benötigen einen modellspezifischen Träger).
