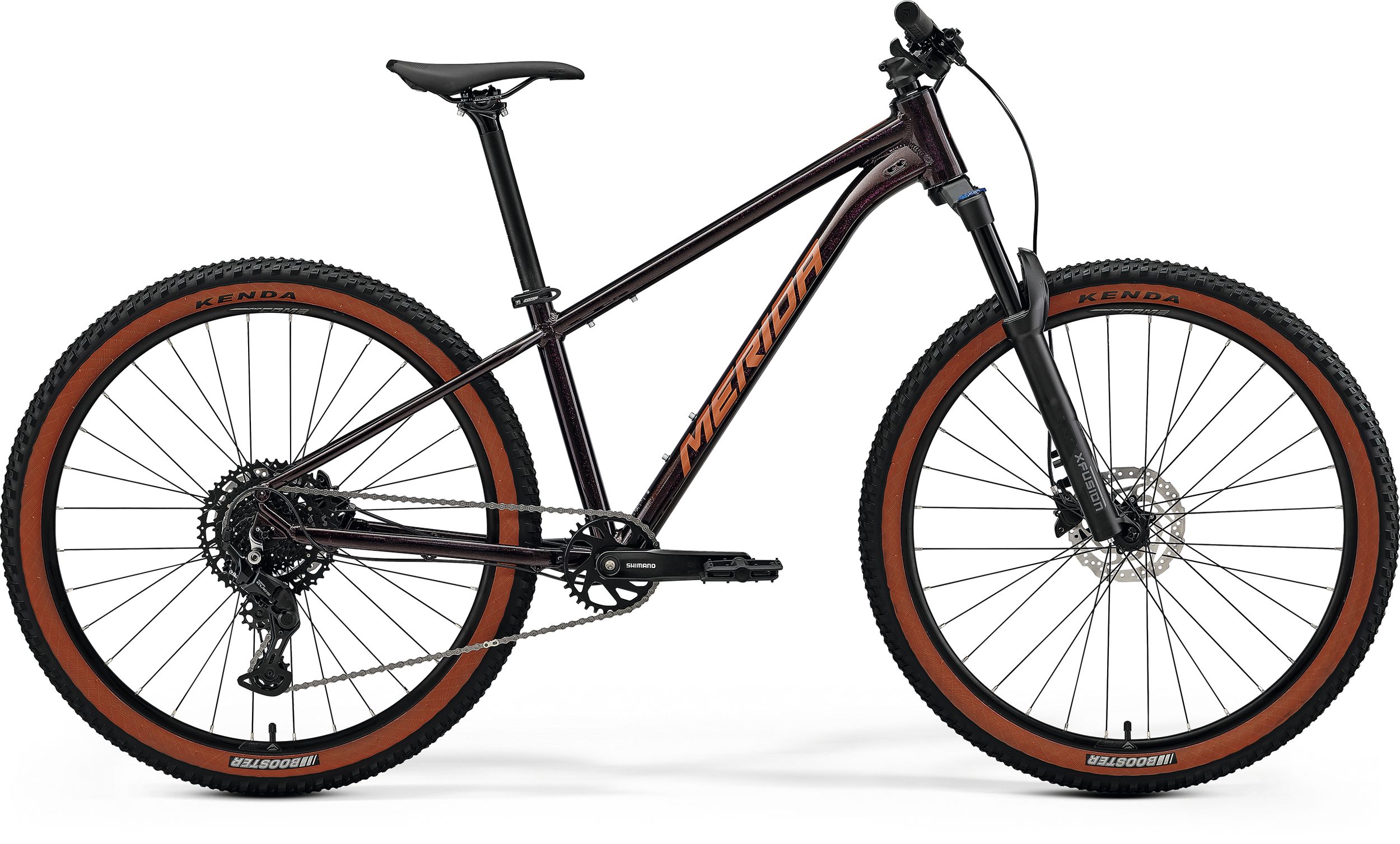

BIG.SEVEN 40



A great place to start your mountain bike journey. With agile 27.5" wheels and a light but tough aluminium frame, it's a whole load of fun on the trail, with the air-sprung 120 mm fork and hydraulic disc brakes giving superb control.
HÄNDLER SUCHEN

Get started on your mountain bike journey. The BIG.SEVEN 40 uses our latest aluminium frame with agile 27.5" wheels to give a tough but lightweight base for high-value, high-performance kit. With updated geometry and a 120 mm air-sprung fork, it's a confident off-road machine that packs in versatility for everyday use, while Shimano's CUES 1x9-speed drivetrain and the hydraulic disc brakes are simple but effective.

When it comes to the demanding world of cross-country mountain biking, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes with the choice of carbon or two different aluminium frames to deliver a ride for all budgets. The latest CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today. They also have downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. For riders starting out, the updated BIG.NINE TFS offers more relaxed geometry and builds that deliver great value and versatility on or off the trail, with BIG.SEVEN TFS models using 27.5" wheels to deliver size for shorter riders. Our classic XC hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we have gained in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship that 'Made in Taiwan' stands for.

  • Updated TFS aluminium frame with clearance for 2.4" tyres
  • Updated geometry for confident off-road handling
  • X-Fusion air-sprung suspension fork with 120 mm travel and lockout
  • Shimano hydraulic disc brakes and CUES 1x9-speed drivetrain
  • MERIDA COMP CC 27.5" wheelset and 2.4" tyres
  • MERIDA finishing kit including size-tuned handlebars
  • material: aluminum
  • 29 wheelsize
  • 135x9mm axle standard
  • BSA bottom bracket standard
  • Smooth welding
Grössen XXS, S
Farbe METALLIC BLACK (RED)
  • 120mm suspension travel
  • lockout
  • max. 27.5x2,4" wheelsize
Schalthebel hinter Shimano Cues U4000
  • 32 teeth
  • MAT Aluminium
  • 165mm on all sizes
Innenlager Shimano UN101 LL123
Kette KMC xGlide
  • 11-46 teeth
  • 9 speed
  • material: aluminium
  • 15mm rise
  • XXS/XS: 700WHB
  • S: 720mm width
Fahrradgriffe MERIDA COMP TR
  • material: aluminium
  • 31.8mm diameter
  • 7° stem angle
  • 50mm
Steuersatz FSA NO.55R/57SC/57B
Sattel MERIDA COMP SL
  • material: aluminium
  • 30.9mm diameter
  • 0mm setback
  • 20mm inner width
  • material: aluminium
Speichen Black steel
  • 100x9mm width front hub
  • 32 spoke holes
  • Centerlock
  • 135x9mm width rear hub
  • 32 spoke holes
  • Centerlock
Pedale VP VPE 536
Bike Frame Geometry Image
Frame Size XXS S
Tire Sizes 27.5" 27.5"
St Seat Tubes Mm 320 365
Tt Top Tubes Mm 516 561
Cs Chain Stays Mm 442 442
Hta Head Tube Angles Deg 67 67
Sta Seat Tube Angle Deg 74 74
Bd Bottom Bracket Drops Mm 37 37
Ht Head Tube Lengths Mm 95 115
Fl Fork Lengths Mm 515 515
Fo Fork Offset Mm 42 42
R Reachs Mm 350 390
S Stacks Mm 582 601
Wb Wheel Base Mm 1067 1114
Sh Stand Over Height Mm 651 694

Um Produktions- und Lieferzeiten möglichst kurz zu halten, sind wir mitunter gezwungen, Spezifikationen in letzter Minute anzupassen. Bitte beachten Sie, dass sich diese Änderungen möglicherweise nicht auf den Produktseiten und Produktbildern widerspiegeln.
