  • *All specifications listed are subject to change without notice. *Recommended Retail Prices are subject to change without notice.

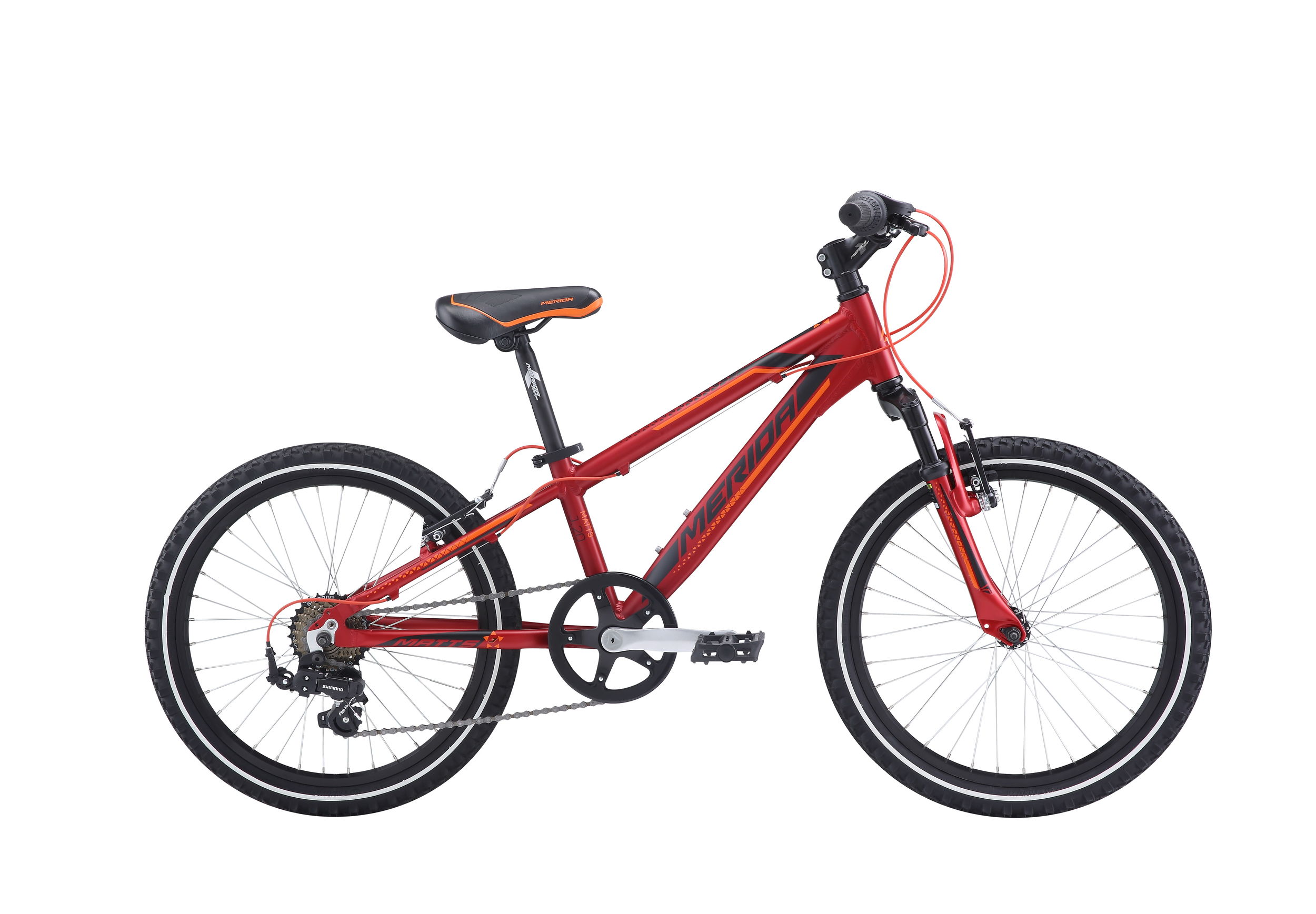

  • frame J20 Alloy
    frame size 10"
    color RED (ORANGE/BLACK)
    fork HL Suspension 20
    derailleur (r) Shimano TX
    shifter rear Shimano RevoShift 7
    brake lever Junior Alloy
    brake front V-Brake Linear A
    brake rear V-Brake Linear A
    chainwheel Steel 40 152L DG
    chain KMC Z50
    hub front Alloy NT
    hub rear Alloy NT
    rim Alloy Black
    tyre front MTB 20 x 2.0" W/White Line
    tyre rear MTB 20 x 2.0" W/White Line
    spokes Steel UCP
    handlebar stem A-Head LA-4
    handlebar XM Steel Rise 550
    headset A-Head
    seat post Alloy 27.2
    saddle Matts kid 20
    kickstand Alloy center-type
    max. weight 80 kg
    Bike Frame Geometry Image
    Frame Size 10"
    Tyre Sizes 20"
    Frame Size Inch 10
    ST seat tube [mm] 260
    TT top tube [mm] 460
    CS chain stay length [mm] 390
    HTA head tube angle [°] 69
    STA seat tube angle [°] 72
    BD bottom bracked drop [mm] 15
    HT head tube [mm] 110
    FL fork length [mm] 359
    R reach [mm] 318
    S stack [mm] 439
    WB wheel base [mm] 911
    SH stand over height [mm] Boy:507/Girl:456
    Body Height Cm 115 - 140

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.




    We use a minimum of 6061 aluminium. The pay back is that it’s possible to make lighter and more advanced frames. We use an additional heat treatment and double-butted wall thicknesses to produce light and stiff frames.



    ‘F-Mount’ equipped bikes have integrated fittings for mud guards (some bikes require model specific mud guards), making fitting fast and simple.



    Integrated mount on the chainstay to fit a MERIDA kickstand (or any commercial kickstand).



    ‘C-Mount’ equipped bikes have the fixing points for a rear rack already integrated (some bikes require model specific rear rack), making fitting fast, simple and reliable.
