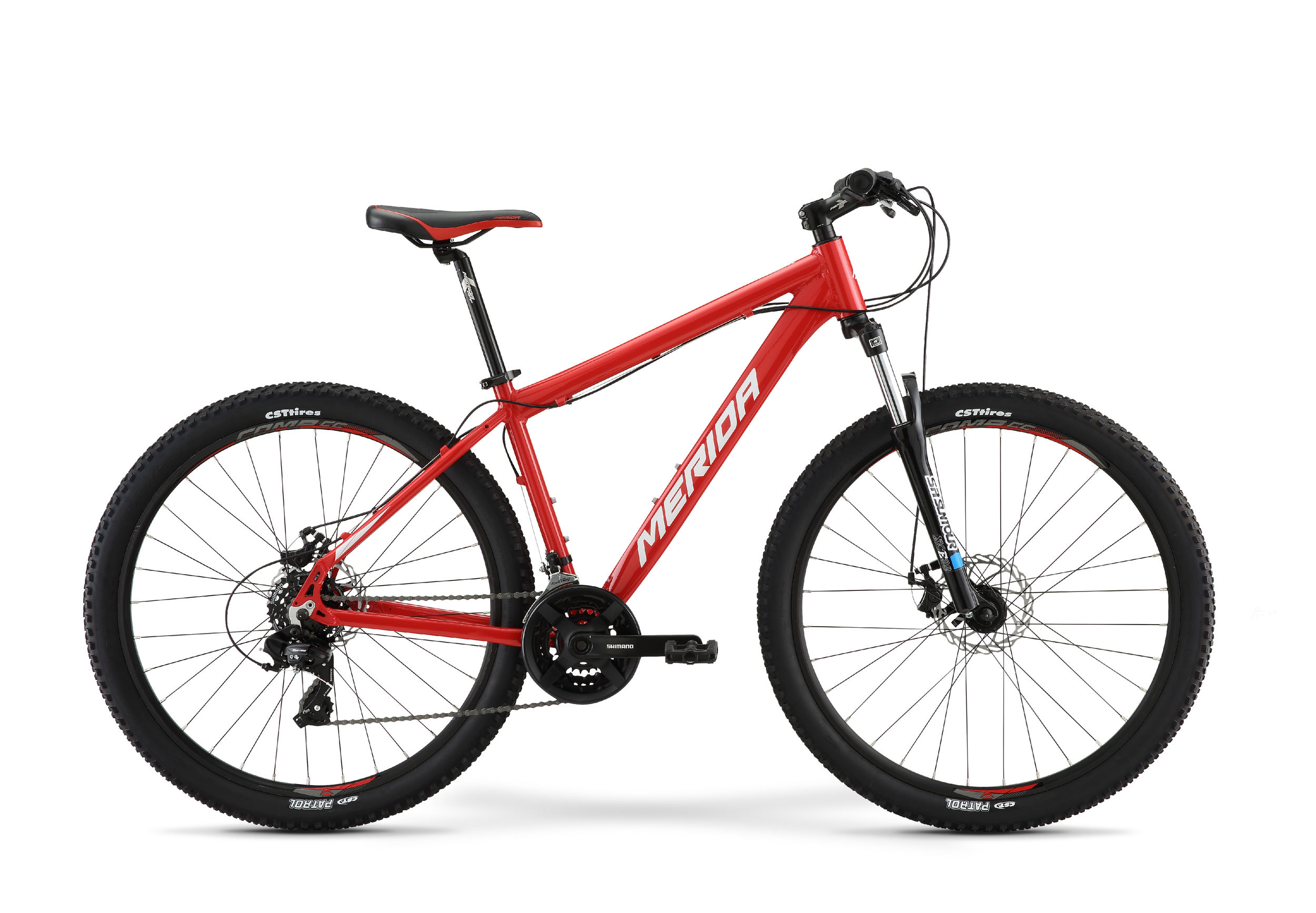

BIG.SEVEN 10-MD (3X)

  • *All specifications listed are subject to change without notice. *Recommended Retail Prices are subject to change without notice.

  • MAT aluminium 27.5"

    frame size XS, S, M, L
    color RACE RED (WHITE)
    derailleur (r) Shimano TY300, TOURNEY
    derailleur (f) Shimano TY300, TOURNEY
    shifter front Shimano ST-EF500
    shifter rear Shimano ST-EF500
    brake front Jak-7 Mechanical Disc
    brake rear Jak-7 Mechanical Disc
    chain CN-7s
    hub front Alloy Disc, Quick Release
    hub rear Alloy Disc, Quick Release
    rim MERIDA double D, alloy
    freewheel Shimano CS-HG200-12-32, 7s
    tyre front CST PATROL (27.5x2.25")
    tyre rear CST PATROL (27.5x2.25")

    MAT aluminium 31.8 Diameter 7° Angle

    MAT aluminium 660 Wide 25 Rise

    headset A-Head OS

    MAT aluminium 27.2 Diameter

    saddle Merida Comfort DDK-200
    Bike Frame Geometry Image
    Frame Size XS S M L
    Tyre Sizes 27.5" 27.5" 27.5" 27.5"
    Frame Size CM 34 38 43 47
    ST seat tube [mm] 343 381 432 470
    TT top tube [mm] 550 560 575 585
    CS chain stay length [mm] 430 430 430 430
    HTA head tube angle [°] 70 70 70.5 70.5
    STA seat tube angle [°] 73.5 73.5 73 73
    BD bottom bracked drop [mm] 53 53 53 53
    HT head tube [mm] 100 105 115 125
    FL fork length [mm] 490 490 490 490
    R reach [mm] 374 383 389 396
    S stack [mm] 593 598 609 619
    WB wheel base [mm] 1042 1053 1057 1068
    SH stand over height [mm] 650 686 731 764

    Technologies


    RACELITE 61 ALUMINIUM

    We use a minimum of 6061 aluminium. The pay back is that it’s possible to make lighter and more advanced frames. We use an additional heat treatment and double-butted wall thicknesses to produce light and stiff frames.


    TFS - TECHNO FORMING SYSTEM

    Technoforming is a mechanical forming process, shaping the tubes by using negative moulds, at times combined with an internal metal core.


    F-MOUNT

    ‘F-Mount’ equipped bikes have integrated fittings for mud guards (some bikes require model specific mud guards), making fitting fast and simple.


    K-MOUNT

    Integrated mount on the chainstay to fit a MERIDA kickstand (or any commercial kickstand).


    C-MOUNT

    ‘C-Mount’ equipped bikes have the fixing points for a rear rack already integrated (some bikes require model specific rear rack), making fitting fast, simple and reliable.
