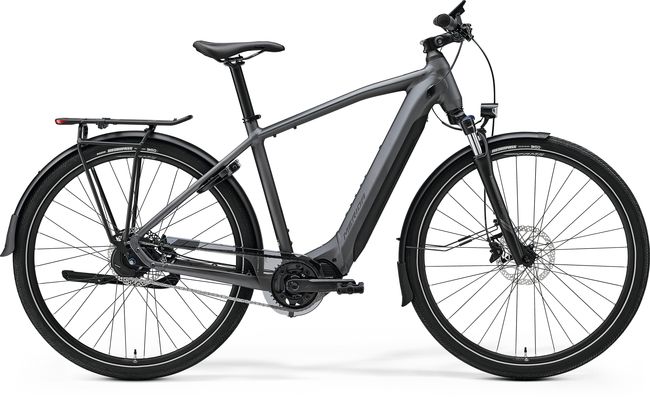

eSPRESSO L 700 EQ

Our refined city e-bike, fitted with a low maintenance hub gear and fully equipped for urban duties. Smoothly integrated 630 Wh battery and refined Shimano E6100 motor.
Find Dealer
  • *All specifications listed are subject to change without notice. *Recommended Retail Prices are subject to change without notice.

  • Getting around the city shouldn't be a drag - and with the eSPRESSO L 700 EQ, it never will be. Even if you're on your way to work, coming back fully laden from the shops or just off to visit friends, our high-quality aluminium frame paired with refined Shimano E6100 drive unit and long-lasting 630 Wh battery will make it easy. The low-maintenance Shimano Nexus hub gear delivers huge gear range options without the complexity of a traditional drivetrain, while hydraulic disc brakes offer predictable power in all conditions.

    The eSPRESSO L range is the perfect partner for urban riding, offering comfort and practicality. Standard-fit mudguards, lights, lock, rack and kickstand mean you’re ready to go from the moment you leave the shop. Choose between frames with internally mounted batteries of either 750 Wh, 630 Wh or 504 Wh capacity or a more economical, 504 Wh semi-integrated design. All use a range of powerful Shimano STEPS drive units, with the option of the sporty EP8 motor on some models. Low step-through frame options on all models help ease mounting and dismounting. Suspension forks offer improved control, while powerful hydraulic disc brakes give reliable and controllable stopping power in all weather conditions. The 700c wheels have wide 50 mm tyres for extra grip and comfort, plus reflective sidewalls strips improve rider safety in low light. Internally routed cables give a sleek look, while a 150 kg maximum system weight means plenty of carrying capacity.

    • Smooth, refined Shimano E6100 drive unit
    • Lightweight frame with internally mounted 630 Wh battery
    • Low maintenance Shimano Nexus hub gearing
    • Fully equipped with guards, lights, lock, rack and kickstand
    • Fast-rolling 700c wheels and comfortable, grippy 50 mm tyres
    • Low step-through frame option available
    • material: aluminium
    • 700x50C (with fender) max. wheelsize
    • 142x12mm axle standard
    • intube
    • eSPRESSO L XS(43L)-S(47L)-M(51L)-L(55L)
    color TEAL-BLUE/BLACK
    • Coil
    • 63mm suspension travel
    • 700x52C max wheelsize
    display Shimano SC-E6100
    battery lock Abus Key
    shifter rear Shimano SW-E6010-R
    • 38 teeth
    • Shimano FC-E6100
    chain KMC Z1eHX EPT
    • 100x9mm width front hub
    • 32 spoke holes
    • Centerlock
    • 135x9mm width rear hub
    • 36 spoke holes
    • Centerlock
    • 20mm inner width
    • material: aluminium
    • 622-50
    • wire
    • reflecting line
    • 622-50
    • wire
    • reflecting line
    spokes Black stainless
    • material: aluminium
    • 31.8mm diameter
    • adjustable
    • 90 mm-XS/S/M, 110 mm-L/XL
    • material: aluminium
    • 660mm width
    • 15mm rise
    headset MERIDA-8156
    • material: aluminium
    • 34.9mm diameter
    • 0mm setback
    fender Sunnywheel SW-FA311-60E1 (MSB)
    carrier MERIDA MIK HD Carrier with Spring clip & Spanninga rear light
    kickstand Massload CL-KA98
    light front Herrmans H-Black MR4 E
    light rear Spanninga Commuter Glow XE integrated in MERIDA MIK HD carrier
    max. weight 150 kg
    Bike Frame Geometry Image
    Frame Size XS S M L
    Tyre Sizes 28" 28" 28" 28"
    ST seat tube [mm] 430 470 510 550
    TT top tube [mm] 580 590 600 620
    CS chain stay length [mm] 478 478 478 478
    HTA head tube angle [°] 69 69,5 69,5 70
    STA seat tube angle [°] 75 74,5 74,5 74
    BD bottom bracked drop [mm] 75 75 75 75
    HT head tube [mm] 133 140 155 175
    FL fork length [mm] 489 489 489 489
    R reach [mm] 409 410 416 424
    S stack [mm] 640 649 663 684
    WB wheel base [mm] 1145 1144 1155 1164
    SH stand over height [mm] 593 610 631 650
    No. Item-No. Name Info Pieces Torque NM
    1 A2311000093 MOUNT for hub gear; left side 1
    2 A2311000094 MOUNT for hub gear; rihgt side 1
    3 A2294000028 WASHER OD16mm ID8.1mm H1.5mm 4
    4 A2300000365 SCREW M8x0.75 L17mm 4 12~14
    5 A2300000399 BOLT M8x0.75 L10mm 4
    6 A2300000468 SCREW M8x1.25 L18.5mm 3 11~12
    7 A2300000469 SCREW M8x1.25 L23mm 3 11~12
    9 A2298000144 SCREW M5x0.8 L10mm 6 3~5
    12 A2161000127 CABLE GUIDE 1
    13 A2143000097 BLIND PLUG 1
    13 A2143000125 BUTTON ON-OFF; for SHIMANO batteries 1
    14 A2111000008 CABLE GUIDE 2
    15 A2161000118 COVER for battery 1
    17 A2143000129 BLIND PLUG for key opening 1
    18 A2258000079 CABLE PLUG for RD 1
    19 A2258000099 CABLE PLUG for rear brake and speed sensor 1
    20 A2300000228 SCREW M4x0.7 L14mm 2 1.5~2
    21 A2258000127 CABLE GUIDE for right side 1
    22 A2258000128 CABLE GUIDE for left side 1
    23 A2143000076 COVER for carrier mount 2
    24 A2298000142 SCREW M6x1.0 L12mm 2 6~8
    25 A2258000012 CABLE GUIDE for M5 fixation 1
    26 A2298000120 SCREW M5x0.8 L12mm 1 3~5
    27 A2258000098 CABLE GUIDE for M4 fixation 1
    28 A2300000048 SCREW M4x0.7 L8mm 1
    29 A2143000122 CABLE PLUG for front light 1
    30 A2298000071 SCREW M5x0.8 L15mm with washer 2 3~5
    31 A2191000150 HEAD SET MERIDA/VP-8155 (MH-P16/MH-P16) 1
    31 A2191000151 HEAD SET MERIDA/VP-8156 (MH-P16/MH-P16) 1

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.

    Technologies


    PROLITE 66 TRIPLE BUTTED ALUMINUM

    Our proven high-end aluminium (6066) is extremely light and durable. Using triple butted wall thicknesses and hydroforming technology, we can tune the aluminium tubes to give the best possible stiffness to weight ratio.


    HFS - HYDRO FORMING SYSTEM

    Tubes are inserted into negative moulds and a hot emulsion of water and oil is forced through at pressure, enabling them to be formed into complex shapes.


    X-TAPER HEADTUBE

    Our X-Tapered headtube offers the space for a tapered fork to be fitted. Tapered forks offer superb stiffness and precise and deliver confidence-inspiring steering.

    X-TAPER HEADTUBE

    SMOOTH WELDING

    Sometimes called ‘double pass welding’, a second pass over the weld gives a clean organic look to the frame. At first glance, you will be convinced it is carbon.


    INTERNAL CABLE ROUTING

    Cables are routed through the frame, entering and exiting through smooth sockets. The bike looks neat, whilst the cables are protected from moisture and dirt.


    DI2 READY

    Bikes/frames with the symbol ‘Di2 Ready’ are prepared for the installation of Di2 technology with battery mounting in the seat post or within the fork steerer.


    F-MOUNT

    ‘F-Mount’ equipped bikes have integrated fittings for mud guards (some bikes require model specific mud guards), making fitting fast and simple.


    K-MOUNT

    Integrated mount on the chainstay to fit a MERIDA kickstand (or any commercial kickstand).

    K-MOUNT

    C-MOUNT

    ‘C-Mount’ equipped bikes have the fixing points for a rear rack already integrated (some bikes require model specific rear rack), making fitting fast, simple and reliable.


    CASTING MOTOR BRACKET

    Sophisticated shape only possible due to casting technology, creating an integrated appearance as well as an extremely strong connection between the E-bike motor and frame for improved performance and reliability.


    SLIDER DROPOUT

    The slider dropout offers plenty of horizontal adjustment for smooth and easy chain tensioning of hub gear systems, without the need of an added chain tensioner. Its voluminous design offers optimum frame stiffness.


    ENERGY GUARD TWIST

    Twist lock mechanism that is located at the top end of the 'Energy Guard' battery cover, for easy locking and unlocking of the protective internal battery cover.
