  • *All specifications listed are subject to change without notice. *Recommended Retail Prices are subject to change without notice.

  • brakes V-Brake Linear

    material: aluminium wheel size: 26"

    frame size XS, S, M

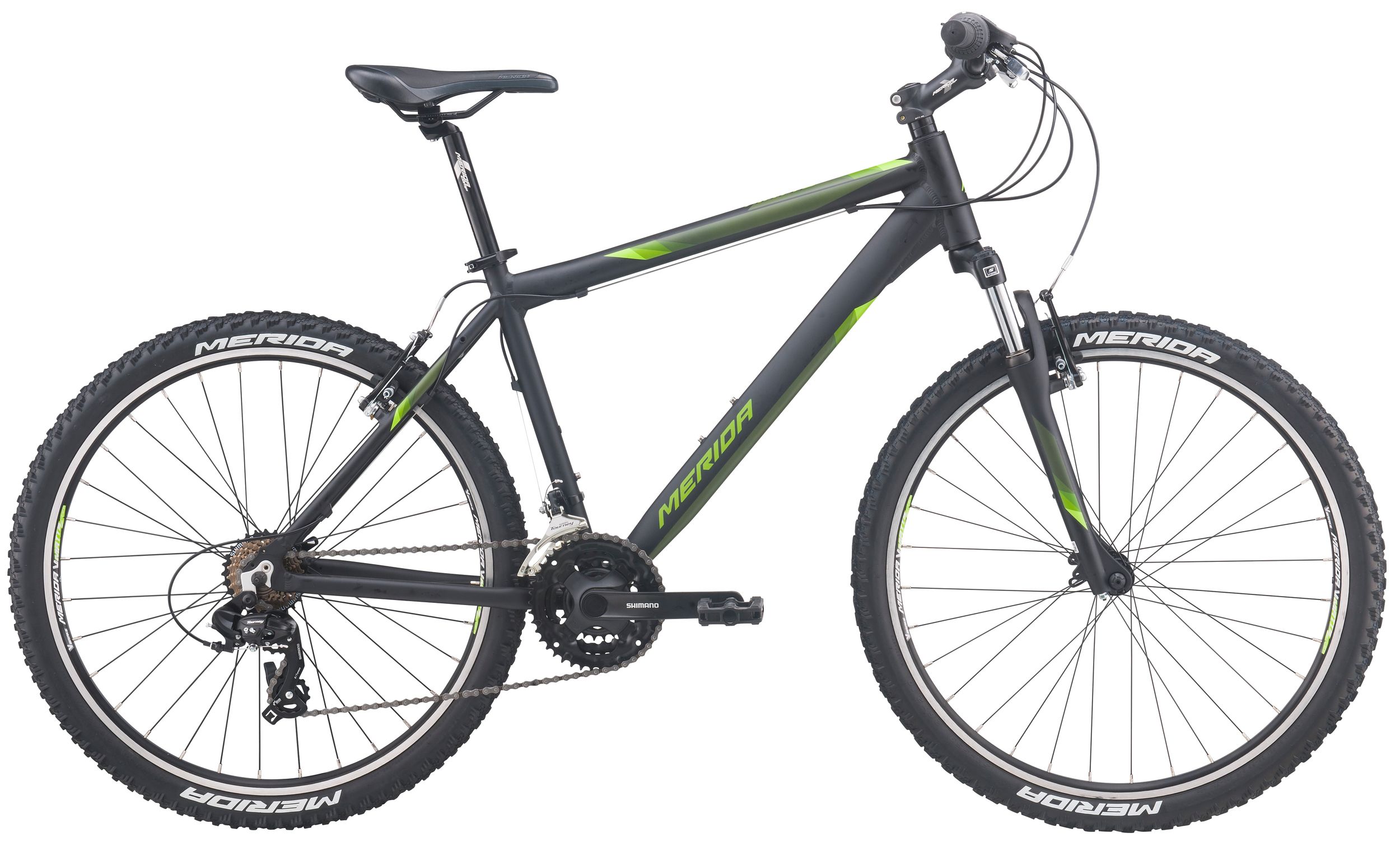

    color BLACK (GREEN)
    derailleur (f) Shimano TZ30
    derailleur (r) Shimano RD-TX35
    shifter front Shimano Revo RS-35
    shifter rear Shimano Revo RS-35
    brake front V-Brake Linear
    brake rear V-Brake Linear
    chainwheel Samox SAC26-526P; 24-34-42 ATC
    chain CN-7s
    crank 170mm

    Quick Release

    Quick Release

    rim MERIDA Double V

    14-28 ATC 7 Speed

    spokes Black steel
    handlebar stem A-Head OS dia-cast
    handlebar MTB Steel 620
    headset A-Head OS
    seat post MERIDA speed 27.2
    saddle Merida Comfort DDK-200
    Bike Frame Geometry Image
    Frame Size XS S M
    Tyre Sizes 26" 26" 26"
    ST seat tube [mm] 343 381 432
    TT top tube [mm] 540 550 560
    CS chain stay length [mm] 425 425 425
    HTA head tube angle [°] 69.5 69.5 70
    STA seat tube angle [°] 73.5 73.5 73
    BD bottom bracket drop [mm] 55 55 55
    HT head tube [mm] 115 125 135
    FL fork length [mm] 475 475 475
    R reach [mm] 364 371 372
    S stack [mm] 594 604 615
    WB wheel base [mm] 1028 1038 1038
    SH stand over height [mm] 589 621 674

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.



    Back to overview


    We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

    Watch Video
    Back to overview


    Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

    Watch Video
    Back to overview


    When using your bike in an urban environment, where you might not always have the option to use a specific bike stand, a kickstand is an ideal solution to park your bike safely. Some of our bikes come with a neatly integrated K-MOUNT, which makes fitting a MERIDA kickstand (or any commercial kickstand) easy. And if you don’t want to have a kickstand and prefer the clean appearance of your frame, the K-MOUNT is neatly tucked away underneath your chainstay, difficult to spot if you don’t know it is there.

    Watch Video
    Back to overview


    Similar to our F-MOUNT, where various fixing points for mudguards are part of the frame offering, the C-MOUNT equipped bikes have the fixing points for a rear rack already integrated, making fitting fast, simple and reliable. The C-MOUNTS are an additional feature that improves the day-to-day versatility by adding loading capacity to your bike, ideal for commuting and shopping trips. Please note that some bikes require model-specific rear racks.
