• material: aluminium
  • 700C wheelsize
  • 100x9/ 130x9mm axle standard
  • BB86 bottom bracket standard
frame size XXS, XS, S, S/M

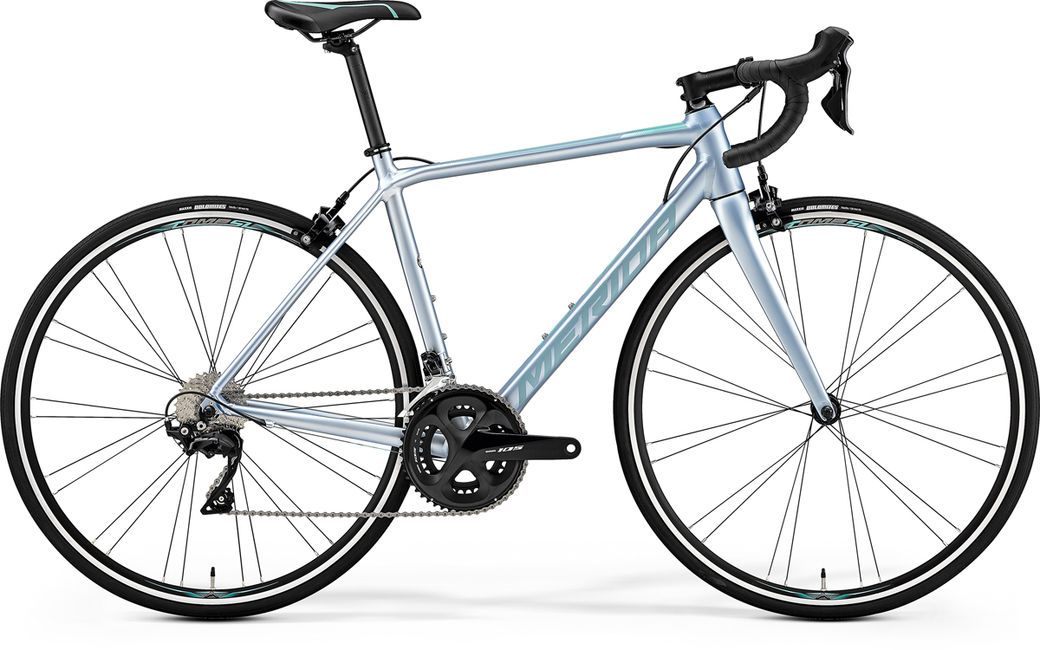

color SILK LIGHT BLUE (SILVER-BLUE)
fork SCULTURA CF
derailleur (f) Shimano 105
shifter front Shimano 105
brake lever Shimano 105
shifter rear Shimano 105
brake front Shimano 105
brake rear Shimano 105
  • 50-34 teeth
  • 165 mm-4S/3S/XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
chain KMC X11
crank size 165 mm-4S/3S/XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
  • 100x9mm width front hub
  • 24 spoke holes
  • 130x9mm width rear hub
  • 28 spoke holes
  • 17mm inner width
  • 24mm height
  • 11-30 teeth
  • 11 speed
spokes Double Butted Black stainless
  • material: aluminium
  • 31.8mm diameter
  • -5° stem angle
  • 70 mm-4S/3S, 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
  • material: aluminium
headset MERIDA M2331 Neck
  • material: carbon
  • 27.2mm diameter
  • 15mm setback

weighed at frame size M-L without pedals

Bike Frame Geometry Image
Frame Size XXS XS S S/M
Tire Sizes 28" 28" 28" 28"
Frame Size CM 44 47 50 52
ST seat tube [mm] 440 470 500 520
TT top tube [mm] 515 520 530 545
CS chain stay length [mm] 408 408 408 408
HTA head tube angle [°] 71 71 72 73
STA seat tube angle [°] 75 74.5 74 74
BD bottom bracked drop [mm] 66 66 66 66
HT head tube [mm] 120 130 140 150
FL fork length [mm] 375 375 375 375
R reach [mm] 376 373 384 386
S stack [mm] 519 529 542 555
WB wheel base [mm] 982 983 979 985
SH stand over height [mm] 697 720 744 762
Body Height Cm < 162 158 - 167 163 - 172 168 - 177

Technologies


PROLITE 66 TRIPLE BUTTED ALUMINUM

Our proven high-end aluminium (6066) is extremely light and durable. Using triple butted wall thicknesses and hydroforming technology, we can tune the aluminium tubes to give the best possible stiffness to weight ratio.


HFS - HYDRO FORMING SYSTEM

Tubes are inserted into negative moulds and a hot emulsion of water and oil is forced through at pressure, enabling them to be formed into complex shapes.


X-TAPER HEADTUBE

Our X-Tapered headtube offers the space for a tapered fork to be fitted. Tapered forks offer superb stiffness and precise and deliver confidence-inspiring steering.


SMOOTH WELDING

Sometimes called ‘double pass welding’, a second pass over the weld gives a clean organic look to the frame. At first glance, you will be convinced it is carbon.


INTERNAL CABLE ROUTING

Cables are routed through the frame, entering and exiting through smooth sockets. The bike looks neat, whilst the cables are protected from moisture and dirt.


DI2 READY

Bikes/frames with the symbol ‘Di2 Ready’ are prepared for the installation of Di2 technology with battery mounting in the seat post or within the fork steerer.
