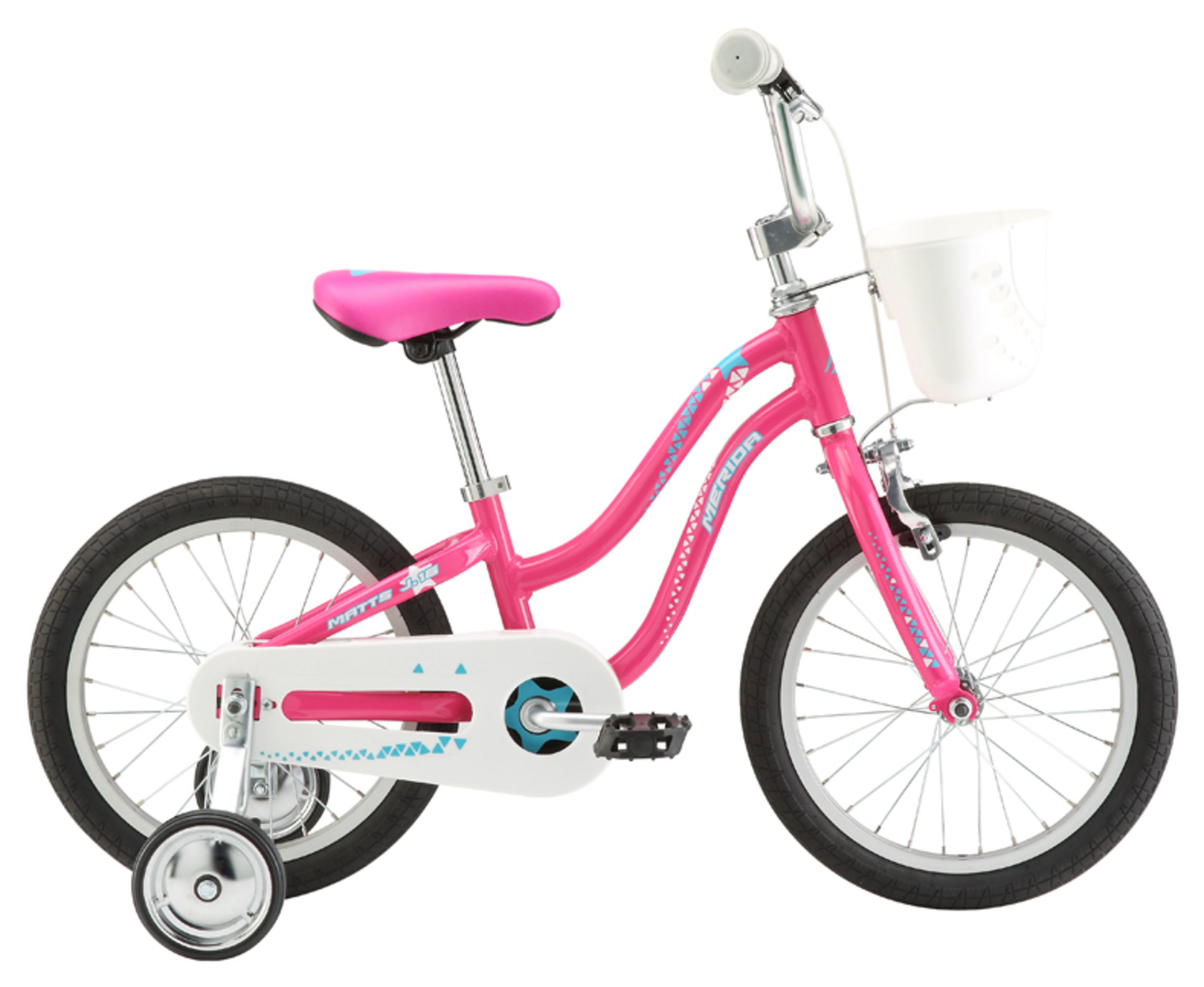

MATTS J16

MATTS J16



Find Dealer
  • *All specifications listed are subject to change without notice. *Recommended Retail Prices are subject to change without notice.

  • brakes Side Pull / Coaster in R.Hub.
    frame J16 Alloy Coaster
    frame size 9"
    fork Rigid Steel
    color MATT GREEN (BLACK)
    derailleur (f) -
    derailleur (r) -
    rotors N/A
    brake lever Kid Lever
    brake front Side Pull
    brake rear Coaster in R.Hub.
    chainwheel Steel 28T 89L BK
    chain Z410A
    hub front Steel NT
    hub rear Steel Coaster
    rim Alloy Black
    freewheel 18T
    tyre front Kid Smooth 16 x 1.75"
    spokes Steel UCP
    handlebar stem Kid Ahead
    handlebar Kid Alloy Rise 480
    headset A-Head
    seat post Steel 22.2
    saddle Matts kid 16
    Bike Frame Geometry Image
    Frame Size 9"
    Tyre Sizes 16"
    ST seat tube [mm] 235
    TT top tube [mm] 400
    CS chain stay length [mm] 340
    HTA head tube angle [°] 70
    STA seat tube angle [°] 72.5
    BD bottom bracket drop [mm] 8
    HT head tube [mm] 100
    FL fork length [mm] 236
    R reach [mm] 298
    S stack [mm] 324
    WB wheel base [mm] 790
    SH stand over height [mm] 409

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.



    Technologies

    Back to overview

    RACELITE 61 ALUMINIUM

    We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.
