frame size S, M, L
  • 120mm suspension travel
  • Air
  • 130mm suspension travel
  • Tapered
  • 110x15mm width front hub
  • 148x12mm width rear hub
  • 35mm inner width
  • Centerlock
Hubs attached / MERIDA Boost axle
tyres Maxxis DHR II / Maxxis Rekon
shifters no / Shimano XT Di2
front derailleur no
rear derailleur Shimano XT Di2
  • 11-46 teeth
  • 11 speed
brake lever attached
brakes Shimano XT fin
rotors Shimano RT86
bottom bracket included
chain KMC X11e
headset FSA NO.55EP Neck
  • 780mm width
  • 20mm rise
  • 35mm diameter
  • 0° stem angle
saddle MERIDA Expert CC
  • 30.9mm diameter
  • 0mm setback
  • S: 100mm travel seatpost - M/L/XL: 150mm travel seatpost
seat clamp MERIDA Expert
grip MERIDA Expert EC
  • VPE-537
mudguard C093-02F + C093-02R
display Shimano SC-E8000
speed sensor SM-DUE10

weighed at medium size

Bike Frame Geometry Image
Frame Size S M L
Tyre Sizes 27.5" 27.5" 27.5"
Frame Size cm 40 44 49
St Seat Tubes mm 400 440 490
Tt Top Tubes mm 583 601 623
Cs Chain Stays mm 439.5 439.5 439.5
HTA head tube angle [°] 67.5 67.5 67.5
STA seat tube angle [°] 75 75 75
Bd Bottom Bracket Drops mm 27.5 27.5 27.5
Ht Head Tube Lengths mm 110 120 130
Fl Fork Lengths mm 541 541 541
R Reach mm 420 435 455
S Stacks mm 609 619 628
Wb Wheel Base mm 1155 1174 1198
Sh Stand Over Height mm 698 730 751
Height in cm < 173 167 - 183 177 - 190

Highlights

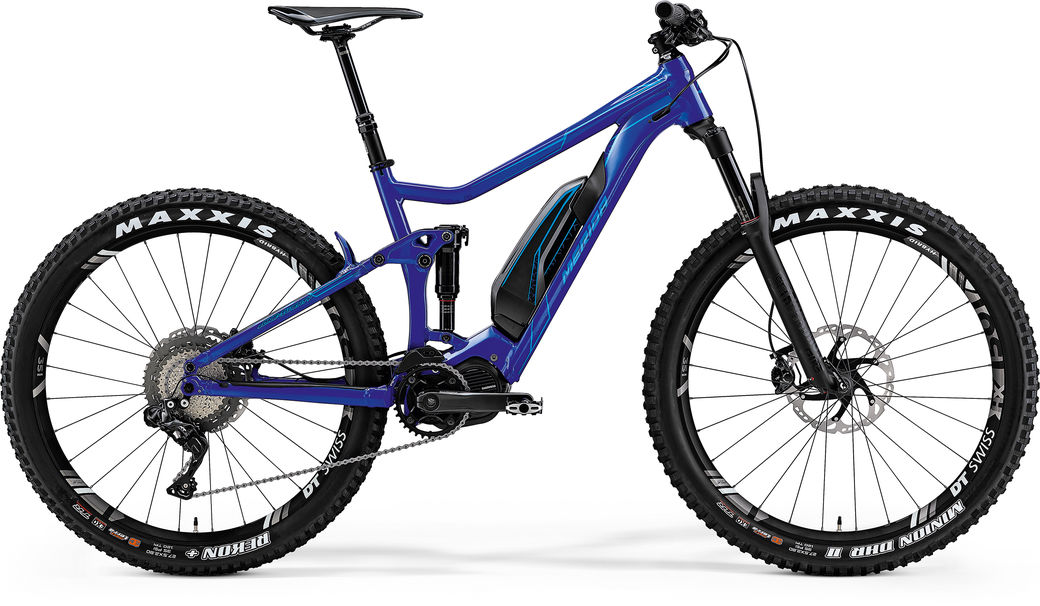

HFS-hydroforming Prolite 66 triple butted aluminium frame with aggressive trail geometry and 120 mm rear wheel travel – Shimano STePS E8000 motor allows for short chain stays delivering agility. ‘Smart Entry’ cable routing for rattle free running. Casting motor bracket creates an integrated appearance of the motor into the frame as well as provides an extremely strong connection between frame and motor.

The eONE-TWENTY benefits from the advantages of the extra 6 mm width of the ‘Boost 12x148’ standard. Shallower spoke angles and through axles make for stiffer wheels. The chain line moves outwards – necessary to create short chain stays delivering agility and massive grip from the B+ tyres.

A trunnion mount shock gives our frame designers more flexibility by using a shorter shock with increased stroke. Combined with the ball bearing bushing of the upper mount, shock sensitivity is increased, and the suspension performance can be perfectly tuned.

A dropper post is allowing the rider to get the saddle out of the way when the gradient gets steeper, giving him/her more space to manoeuver and control over their bike. The fitted dropper posts featuring internal cable routing and remote levers, creating a cleaner look and allowing easier ‘on the go’ saddle height adjustment.

650B+ wheels featuring 35-40 mm wide inner width rims and 2.8" tyres which are hugely capable when the going gets rough but also offer loads and loads of up-hill traction, cornering grip, puncture resistance and cushioning, without being draggy or sluggish. Most models offer tubeless ready rims and tyre configurations making a conversion to tubeless incredibly straightforward.

Cables, housings and brake hoses are clamped under tension to prevent rattling when the trails and roads get rough. All inlets are completely interchangeable to deal with Di2, hydraulic hoses, brake cable and gear cable housings etc.

With short chain stays the models are blessed with super playful handling. The long reach in combination with a short stem and wide handlebars offer tons of control even in the trickiest situations.

Technologies


PROLITE 66 TRIPLE BUTTED ALUMINUM

Our proven high-end aluminium (6066) is extremely light and durable. Using triple butted wall thicknesses and hydroforming technology, we can tune the aluminium tubes to give the best possible stiffness to weight ratio.


X-TAPER HEADTUBE

Our X-Tapered headtube offers the space for a tapered fork to be fitted. Tapered forks offer superb stiffness and precise and deliver confidence-inspiring steering.


SMOOTH WELDING

Sometimes called ‘double pass welding’, a second pass over the weld gives a clean organic look to the frame. At first glance, you will be convinced it is carbon.


INTERNAL CABLE ROUTING

Cables are routed through the frame, entering and exiting through smooth sockets. The bike looks neat, whilst the cables are protected from moisture and dirt.


SMART ENTRY

Cables, housings and brake hoses are clamped under tension to prevent rattling when the trails or roads get rough. All inlets are completely interchangeable to deal with Di2, hydraulic hoses, brake cable and gear cable housings etc.


DI2 READY

Bikes/frames with the symbol ‘Di2 Ready’ are prepared for the installation of Di2 technology with battery mounting in the seat post or within the fork steerer.


CHAINSTAY POST MOUNT DISC

In-board brake mounts are positioned within the rear triangle to protect them. The caliper supported by the stronger chainstay is able to distribute braking forces better. Internal cable routing is also easier and neater via the chainstay.


15-100 THRU-AXLE

Selected front forks use a 100 mm wide through axle 15 mm in diameter to increase lateral stiffness.


12-148 BOOST STANDARD THROUGH AXLE

Boost standard – wider axle widths; the by 6 mm increased now 148 mm wide rear through axle (12mm axle diameter) allows a shallower spoke angle for stiffer wheels, especially beneficial in 29ers or for MTB wheels that are used in very demanding conditions. The Boost standard also offers greater tyre clearance in the frame.
