  • *All specifications listed are subject to change without notice. *Recommended Retail Prices are subject to change without notice.

    • 165mm suspension travel
    • material: aluminium
    • 27.5x2.6" max. wheelsize
    • 148x12mm axle standard
    • BB92 bottom bracket standard
    frame size S, M, L, XL
    • Air
    • 170mm suspension travel
    • Tapered
    • 37mm fork offset
    • 27.5x2.8" max. wheelsize
    shifter front Shimano SL -MT500-IL
    shifter rear Shimano Deore M5100
    • 32 teeth
    • 170 mm-S up
    chain KMC X11 NPBK
    crank 170 mm-S up
    • 110x15mm width front hub
    • 32 spoke holes
    • Centerlock
    • 148x12mm width rear hub
    • 32 spoke holes
    • Centerlock
    • 29mm inner width
    • material: aluminium
    • Tubeless ready (tubeless tape and valves not included)
    • 11-51 teeth
    • 11 speed
    • 27.5x2.5"
    • fold
    • TR DD 3C MaxxGrip
    • 27.5x2.4"
    • fold
    • TR DD 3C MaxxTerra
    spokes Double Butted Black stainless
    • material: aluminium
    • 35mm diameter
    • 0° stem angle
    • 40 mm all sizes
    • material: aluminium
    • 780mm width
    • 20mm rise
    headset FSA NO.57/55E neck
    • 30.9mm diameter
    • 0mm setback
    • S: 100mm travel seatpost - M: 125mm travel seatpost - L/XL: 150mm travel seatpost
    saddle MERIDA COMP CC
    fender MERIDA MTB lite-front

    weighed with 27.5" wheels and at frame size M, without pedals

    max. weight 135 kg
    Bike Frame Geometry Image
    Frame Size S M L XL
    Tyre Sizes 27.5" 27.5" 27.5" 27.5"
    ST seat tube [mm] 400 430 470 490
    TT top tube [mm] 559 591 630 648
    CS chain stay length [mm] 430 430 430 430
    HTA head tube angle [°] 65.3 65.3 65.3 65.3
    STA seat tube angle [°] 75 75 75 75
    BD bottom bracked drop [mm] 6 6 6 6
    HT head tube [mm] 105 110 125 130
    FL fork length [mm] 562 562 562 562
    R reach [mm] 410 440 474 490
    S stack [mm] 595 599 613 617
    WB wheel base [mm] 1157 1189 1223 1247
    SH stand over height [mm] 713 734 757 765
    No. Item-No. Name Info Pieces Torque NM
    1 2300011274 BOLT 2 14
    2 2221002254 BEARING 6800V-2RS 19D*10D*5W 6
    3 2294004440 WASHER 2
    4 2300011296 BOLT 1 12
    5 2221002209 BEARING 6801V-2RS 21D*12D*5W 2
    6 2300011285 SCREW 1 12
    7 2294004451 WASHER 8
    8 2300011263 BOLT 4 12
    9 2300011252 SCREW 4 12
    10 2311004928 DROPOUT DH-053 1
    11 2300005272 SCREW 1 5
    12 2300010950 SCREW 2 5
    13 2300011315 BOLT 1 14
    14 2221002395 BEARING 3802V-2RD 24D*15D*7W 2
    15 2300011304 SCREW 1 14
    16 2300012491 BOLT 1 10
    17 2300012480 SCREW 1 10
    18 2294004462 WASHER 2
    19 2258003867 CABLE GUIDE 1
    20 2300009890 SCREW 1 5
    21 2294004439 WASHER 2
    22 2300011412 SCREW 2 4
    25 2258003812 CABLE GUIDE 1
    26 ROCKER 1

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.

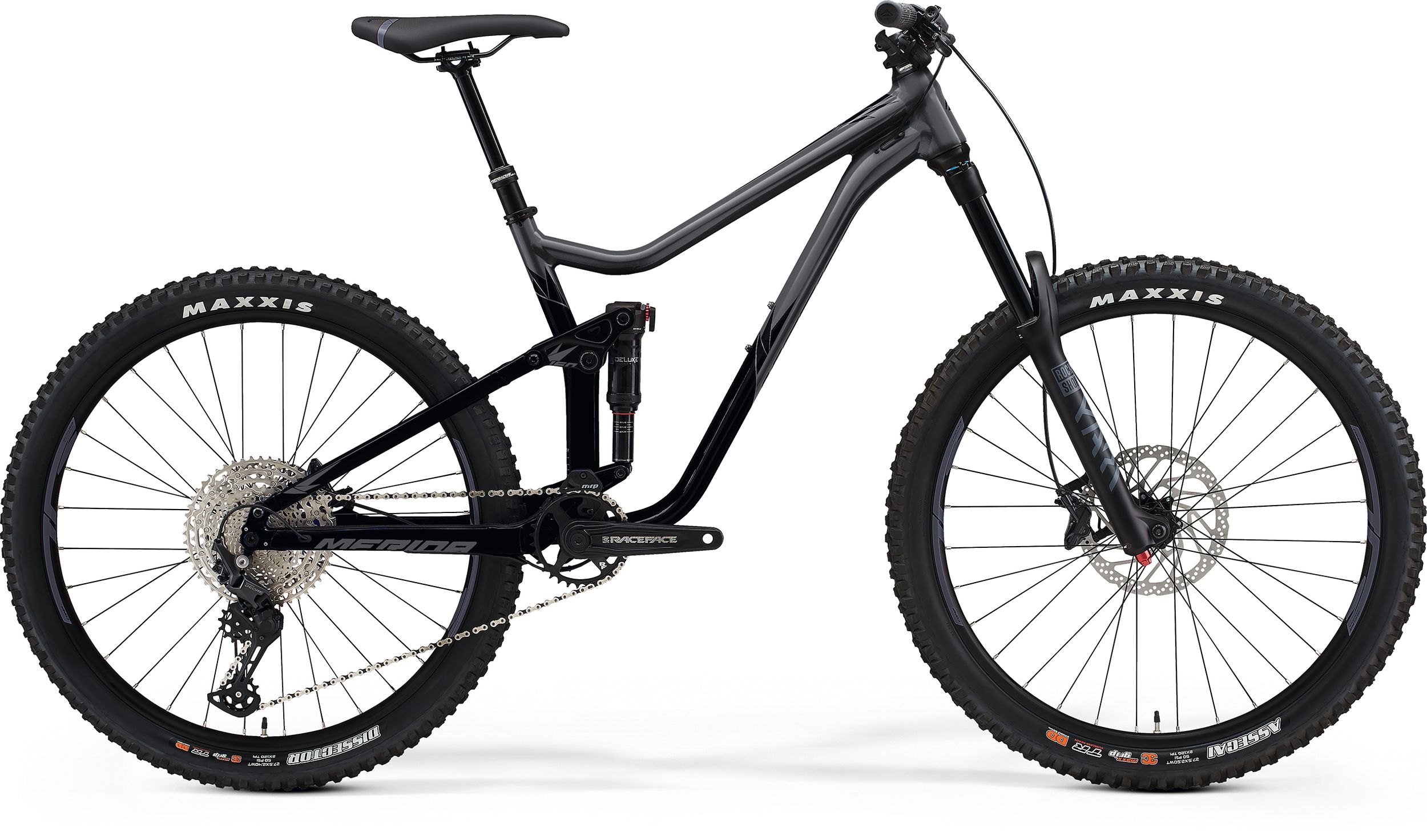

    Our ONE-SIXTY remains one of the biggest showstoppers in our full suspension range. Fully at home on the demanding tracks of the Enduro World Series, ridden by Toni Ferreiro, our ONE-SIXTY has also gained press accolades. FLOW calls it ‘a genuine contender as the best trail bike we’ve ridden at this price point’ and ‘it just looked right – the right angles, the right components, at the right price.’

    A trunnion mount shock gives our frame designers more flexibility by using a shorter shock with increased stroke. Combined with the ball bearing bushing of the upper mount, shock sensitivity is increased, and the suspension performance can be perfectly tuned.

    These models are available in two different frame options. A carbon front end combined with a 6061 aluminium rear end, or a more budget-friendly all-aluminium chassis.

    Race-proven and loved by the international cycling press, our ONE-SIXTY combines super short 430 mm chainstays for increased agility and playfulness, with a long reach, slack head angles and a low centre of gravity, delivering an aggressive enduro geometry.

    Most models offer Boost technology at the front and rear. The shallower axle standard of 110 mm (front) and 148 mm (rear) allows for a wider spoke angle, resulting in a stiffer and stronger wheel, hugely beneficial on these bikes given the impacts they endure. The BIG.TRAIL 200 has 100 mm fork spacing.


    Back to overview


    Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.

    Watch Video
    Back to overview


    This is a process we use to give a nice flat finish to our welds instead of the scaled, 'stack of coins' effect TIG welded joints often have. The welder uses the welding torch to go over the joint twice, helping to smooth out the filler material. It takes a lot of skill to do this, but it delivers strong and smart-looking frames that have the appearance of a carbon fibre frame at first look.

    Watch Video
    Back to overview


    On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.

    Watch Video
    Back to overview


    DOWN TUBE EXIT is a feature seen on some of our frames with internally routed cables. By slightly overlapping the downtube where it connects to the bottom bracket, it leaves a small space that allows cables to exit easily. This means they are easily accessible for routine maintenance or replacement, but it prevents excessive movement and noise that can cause wear and distraction.

    Watch Video
    Back to overview


    Many of our frames offer internal cable routing, where the gear and brake cables are run through the frame for maximum protection and a clean look. Some internally run cables can rattle when riding over uneven surfaces, but our SMART ENTRY system prevents this from happening. Cables, housings and brake hoses are clamped under tension to prevent noisy cable movement. All inlets are completely interchangeable to deal with any kind of cable or wire.

    Watch Video
    Back to overview


    Shimano's Di2 electronic shifting system offers fast, smooth and reliable shifting. In particular, in the road world, it has proven itself as the primary choice when top performance is at the top of the agenda. With that in mind, we have a broad selection of performance road frames that are Di2 READY and can accommodate the electrical cable, battery and other little tweaks that the system requires.

    Watch Video
    Back to overview


    Our latest grade of aluminium (6016) enables super thin wall thicknesses whilst delivering amazing strength, ideal for demanding off-road riding and racing.

    Back to overview


    A suspension system where the lower shock mount moves as well as the upper link, giving a supple and sensitive feel over bumps. This system allows our engineers to precisely manipulate the leverage ratio, giving ultimate control of the progression of the suspension so that a FLOAT LINK rear suspension system feels like it offers more wheel travel than the numbers alone suggest.
