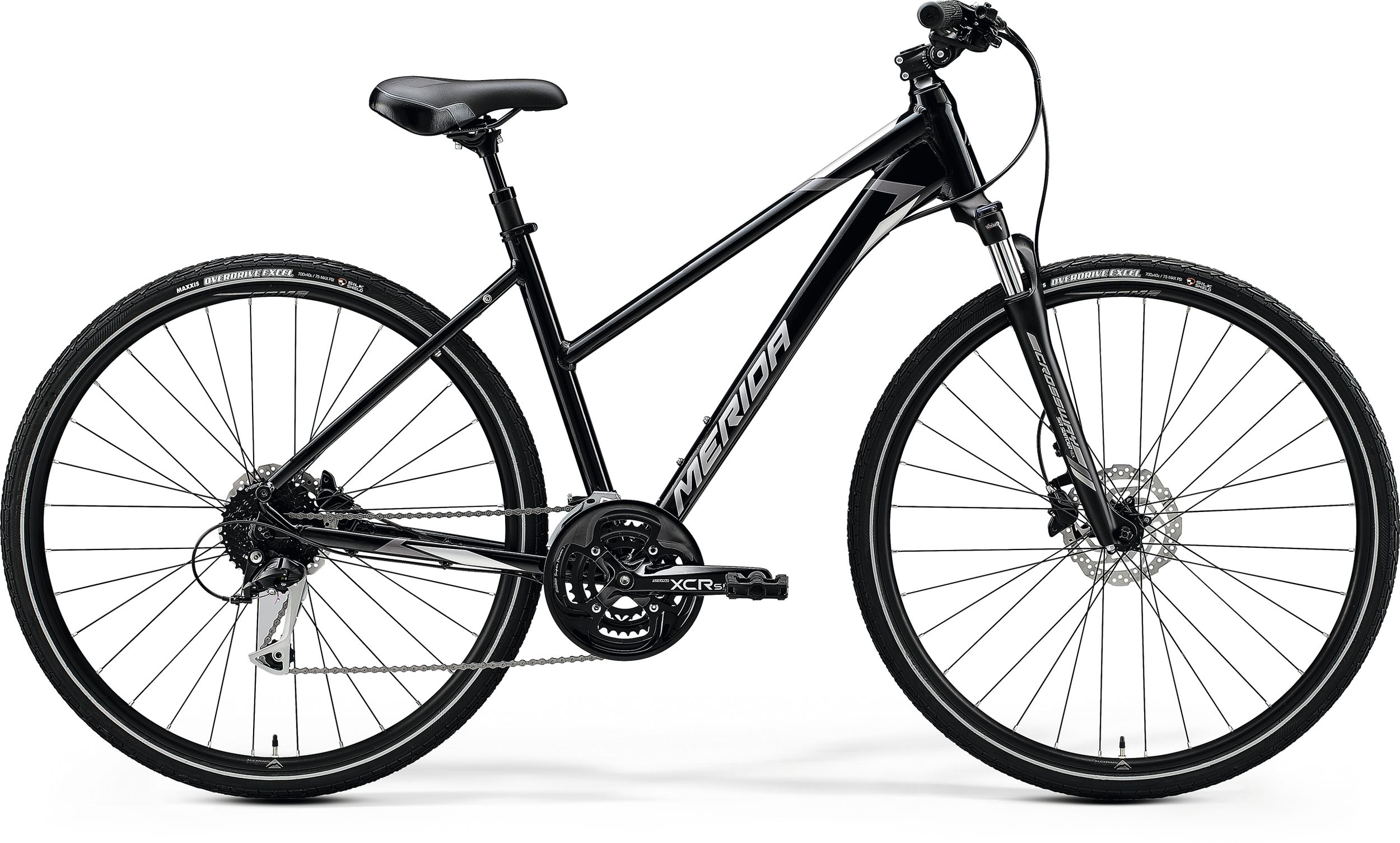

CROSSWAY L 100

CROSSWAY L 100



Find Dealer
  • *All specifications listed are subject to change without notice. *Recommended Retail Prices are subject to change without notice.

  • brakes Shimano MT-200
    • material: aluminium
    • 700C wheelsize
    • 135x9mm axle standard
    • BSA bottom bracket standard
    frame size XXS, XS, S, M
    • Coil
    • 63mm suspension travel
    • Lockout
    color METALLIC BLACK (GREY)
    derailleur (f) Shimano M370
    derailleur (r) Shimano Alivio
    shifter front Shimano Altus
    shifter rear Shimano Altus
    brake lever Shimano MT-200
    brake front Shimano MT-200
    brake rear Shimano MT-200
    • 48-36-26 teeth
    • 170 mm-XS/S, 175 mm-M/XL
    chain KMC M99
    crank 170 mm-XS/S, 175 mm-M/XL
    • 100x9mm width front hub
    • 32 spoke holes
    • Centerlock
    • 135x9mm width rear hub
    • 32 spoke holes
    • Centerlock
    • 20mm inner width
    • 17mm height
    • material: aluminium
    • 11-34 teeth
    • 9 speed
    • 700x40C
    • wire
    • reflective stripe, Silkshild
    • 700x40C
    • wire
    • reflective stripe, Silkshild
    spokes Black stainless
    • material: aluminium
    • 31.8mm diameter
    • adjustable
    • 80 mm-XXS/XS/S, 90 mm-M/L, 100 mm-XL
    • material: aluminium
    • 660mm width
    • 25mm rise
    headset MERIDA M2346 Neck
    • 30.9mm diameter
    • 10mm setback
    • 40mm seatpost suspension travel
    saddle MERIDA Cross Sport

    weighed at frame size S without pedals

    Bike Frame Geometry Image
    Frame Size XXS XS S M
    Tyre Sizes 28" 28" 28" 28"
    ST seat tube [mm] 390 430 470 510
    TT top tube [mm] 560 565 580 590
    CS chain stay length [mm] 460 460 460 460
    HTA head tube angle [°] 70.5 70.5 71 71
    STA seat tube angle [°] 74 74 73.5 73.5
    BD bottom bracket drop [mm] 70 70 70 70
    HT head tube [mm] 130 130 140 155
    FL fork length [mm] 460 460 460 460
    R reach [mm] 385 390 396 402
    S stack [mm] 611 611 622 637
    WB wheel base [mm] 1080 1085 1089 1100
    SH stand over height [mm] 650 650 650 651
    Body Height Cm < 149 145 - 160 155 - 170 161 - 180

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.



    HIGHLIGHTS

    Most CROSSWAY models are also available in a low step through frame, providing an opportunity to find the perfect fit without compromising on equipment and functionality.

    6061 double butted and technoformed aluminium frame with a concealed cable channel underneath. Tapered head tube for confidence inspiring handling. Graceful lines with smooth welding. Equipped with mounts for rack, mudguards and kickstand.

    All our CROSSWAY models are equipped with suspension forks to iron out any surface bumps. Adjustable ahead stems and suspension seat posts are also fitted on most SPEED models, providing extra comfort and an adjustable riding position. The sportier TFS models feature a regular seat post and stem to reduce weight.

    All CROSSWAY 100 up to XT-EDITION models feature tyres with reflective strips on their sidewalls, improving visibility on the road.

    Mudguards, racks and kickstands can be added to all CROSSWAY models, making them usable in many circumstances.

    Technologies

    Back to overview

    SMOOTH WELDING

    This is a process we use to give a nice flat finish to our welds instead of the scaled, 'stack of coins' effect TIG welded joints often have. The welder uses the welding torch to go over the joint twice, helping to smooth out the filler material. It takes a lot of skill to do this, but it delivers strong and smart-looking frames that have the appearance of a carbon fibre frame at first look.

    Watch Video
    Back to overview

    INTERNAL CABLE ROUTING

    On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.

    Watch Video
    Back to overview

    RACELITE 61 ALUMINIUM

    We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

    Watch Video
    Back to overview

    TFS - TECHNO FORMING SYSTEM

    Manipulating the tube shape and thickness greatly impacts the appearance, weight and functionality of our aluminium frames. One technology that allows us to do that is TECHNO FORMING, where plain aluminium tubes get mechanically formed by using an external form and an internal metal core. The result, beautifully shaped tubes with varying wall thickness, ready to be used to create our technoformed aluminium frames.

    Watch Video
    Back to overview

    F-MOUNT

    Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

    Watch Video
    Back to overview

    K-MOUNT

    When using your bike in an urban environment, where you might not always have the option to use a specific bike stand, a kickstand is an ideal solution to park your bike safely. Some of our bikes come with a neatly integrated K-MOUNT, which makes fitting a MERIDA kickstand (or any commercial kickstand) easy. And if you don’t want to have a kickstand and prefer the clean appearance of your frame, the K-MOUNT is neatly tucked away underneath your chainstay, difficult to spot if you don’t know it is there.

    Watch Video
    Back to overview

    C-MOUNT

    Similar to our F-MOUNT, where various fixing points for mudguards are part of the frame offering, the C-MOUNT equipped bikes have the fixing points for a rear rack already integrated, making fitting fast, simple and reliable. The C-MOUNTS are an additional feature that improves the day-to-day versatility by adding loading capacity to your bike, ideal for commuting and shopping trips. Please note that some bikes require model-specific rear racks.

    Watch Video
