  • *All specifications listed are subject to change without notice. *Recommended Retail Prices are subject to change without notice.

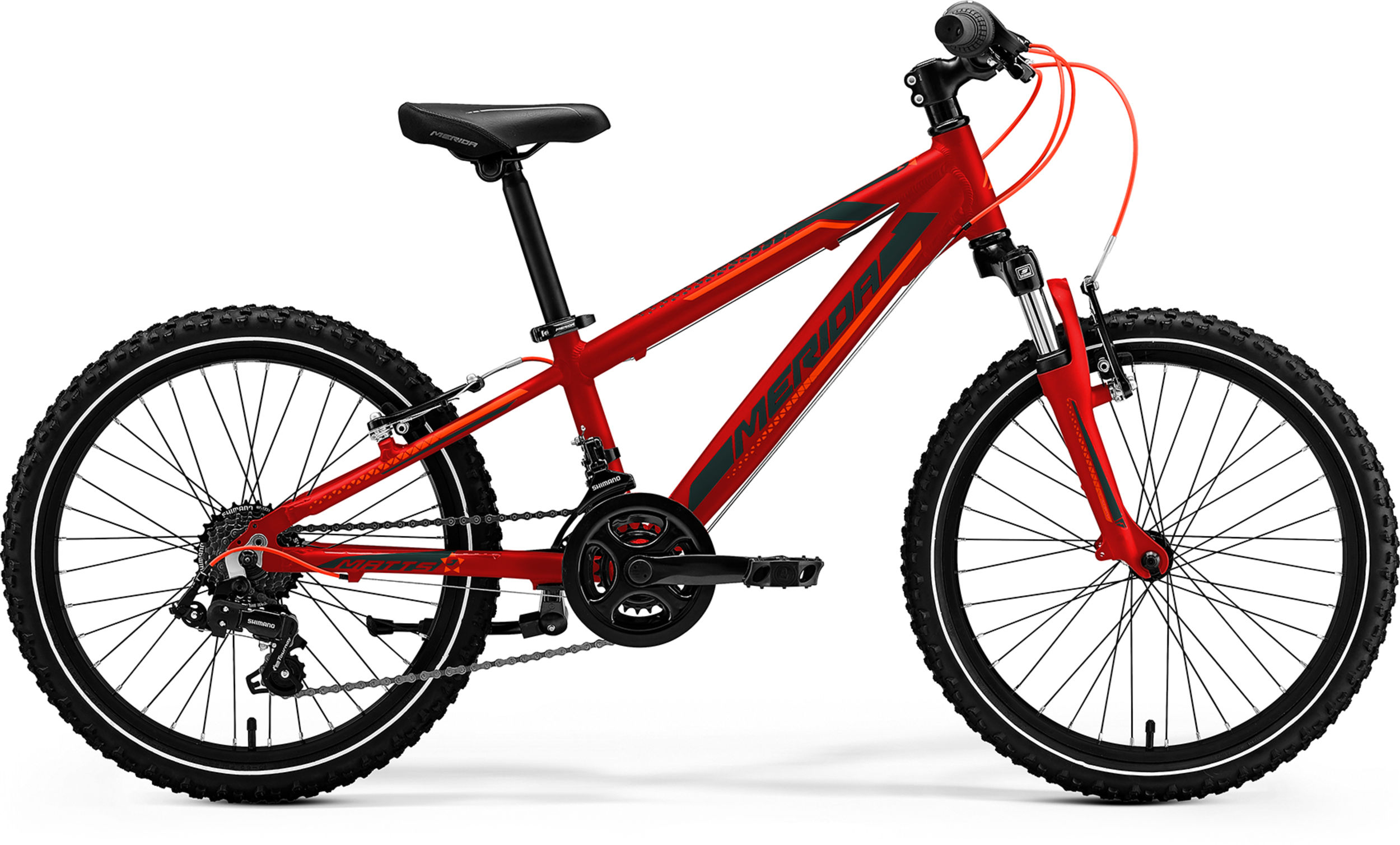

  • brakes V-Brake Linear A
    frame J20 Alloy
    frame size 10"
    fork HL Suspension 20
    color RED (ORANGE/BLACK)
    brake lever Junior Alloy
    brake front V-Brake Linear A
    brake rear V-Brake Linear A
    chain KMC Z50
    crank Steel 40 152L DG
    hub front Alloy NT
    hub rear Alloy NT
    rim Alloy Black
    freewheel Shimano MF-TZ21 14-28
    tyre front MTB 20 x 2.0" W/White Line
    tyre rear MTB 20 x 2.0" W/White Line
    spokes Steel UCP
    handlebar stem A-Head LA-4
    handlebar XM Steel Rise 550
    headset A-Head
    seat post Alloy 27.2
    saddle Matts kid 20
    kickstand Alloy center-type
    Bike Frame Geometry Image
    Frame Size 10"
    Tyre Sizes 20"
    Frame Size Inch 10
    ST seat tube [mm] 260
    TT top tube [mm] 460
    CS chain stay length [mm] 390
    HTA head tube angle [°] 69
    STA seat tube angle [°] 72
    BD bottom bracket drop [mm] 15
    HT head tube [mm] 110
    FL fork length [mm] 359
    R reach [mm] 318
    S stack [mm] 439
    WB wheel base [mm] 911
    SH stand over height [mm] Boy:507/Girl:456
    Body Height Cm 115 - 140

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.



    Back to overview


    We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

    Watch Video
    Back to overview


    Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

    Watch Video
    Back to overview


    When using your bike in an urban environment, where you might not always have the option to use a specific bike stand, a kickstand is an ideal solution to park your bike safely. Some of our bikes come with a neatly integrated K-MOUNT, which makes fitting a MERIDA kickstand (or any commercial kickstand) easy. And if you don’t want to have a kickstand and prefer the clean appearance of your frame, the K-MOUNT is neatly tucked away underneath your chainstay, difficult to spot if you don’t know it is there.

    Watch Video
    Back to overview


    Similar to our F-MOUNT, where various fixing points for mudguards are part of the frame offering, the C-MOUNT equipped bikes have the fixing points for a rear rack already integrated, making fitting fast, simple and reliable. The C-MOUNTS are an additional feature that improves the day-to-day versatility by adding loading capacity to your bike, ideal for commuting and shopping trips. Please note that some bikes require model-specific rear racks.
