frame size XS, S, M, L

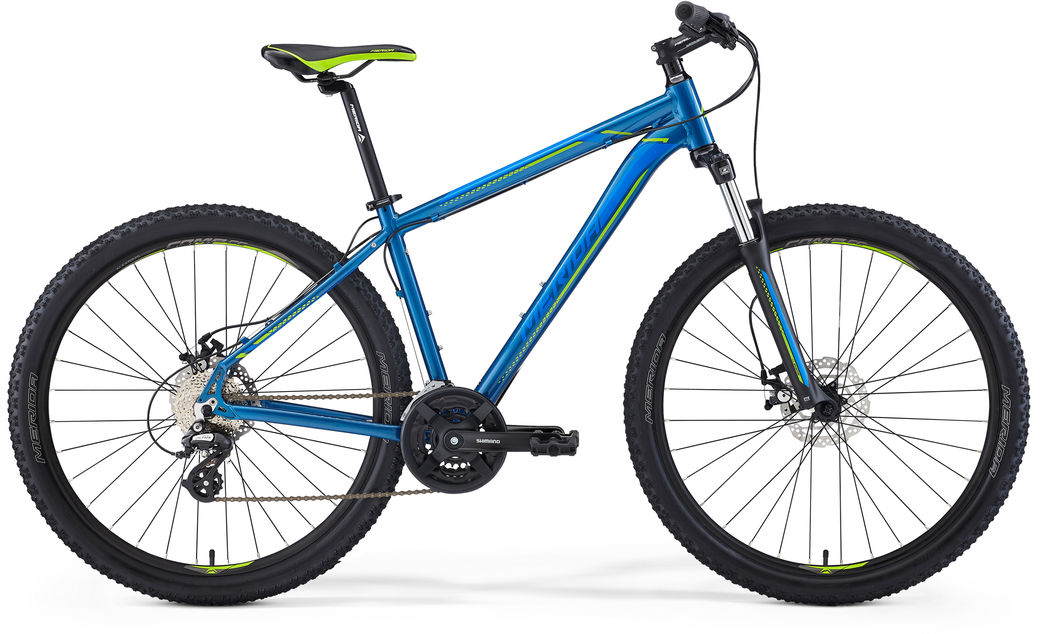

frame BIG.SEVEN SPEED
  • Coil
  • 100mm suspension travel
tyres MERIDA K1080
shifters Shimano ST-EF500
front derailleur Shimano FD-TY700
  • 11-32 teeth
  • 8 speed
brake lever Shimano ST-EF500
brakes Promax MTD-3.0 disc
rotors Shimano RT10
chain KMC M700
headset FSA NO.10
  • 690mm width
  • 15mm rise
  • 31.8mm diameter
  • 6° stem angle
saddle MERIDA Sport Comfort
  • 27.2mm diameter
  • 15mm setback
seat clamp MERIDA Comp QR
grip MERIDA EC
  • VPE-891

weighed at frame size M (w/o pedals)

Bike Frame Geometry Image
Frame Size XS S M L
Tyre Sizes 27.5" 27.5" 27.5" 27.5"
Frame Size cm 34 38 43 47
St Seat Tubes mm 343 381 432 470
Tt Top Tubes mm 550 560 575 585
Cs Chain Stays mm 430 430 430 430
HTA head tube angle [°] 70 70 70.5 70.5
STA seat tube angle [°] 73.5 73.5 73 73
Bd Bottom Bracket Drops mm 53 53 53 53
Ht Head Tube Lengths mm 100 105 115 125
Fl Fork Lengths mm 490 490 490 490
R Reach mm 374 383 389 396
S Stacks mm 593 598 609 619
Wb Wheel Base mm 1042 1053 1057 1068
Sh Stand Over Height mm 650 686 731 764
Height in cm < 163 157 - 173 167 - 183 > 177

Highlights

Mechanical brakes use a normal lever connected to the brake caliper by a cable. Using disc brakes offers a large number of advantages, foremost of which is that they provide controllable and predictable stopping power regardless of the conditions. Having disc brakes on your bike means that even when it’s wet, braking power is unaffected. They also offer much improved stopping power as a much higher amount of mechanical force can be applied. Because they use a metal rotor attached to the hub rather than a braking surface on the rim, they don't wear out as quickly and allow you to use lighter weight, disc-specific rims.

6061 series double butted and technoformed aluminium.

Technologies


LOCKOUT

The suspension fork and/or rear shock can be locked out by a leaver that is mounted to the top of the fork and/or to the rear shock unit.


RACELITE 61 ALUMINIUM

We use a minimum of 6061 aluminium. The pay back is that it’s possible to make lighter and more advanced frames. We use an additional heat treatment and double-butted wall thicknesses to produce light and stiff frames.


TFS - TECHNO FORMING SYSTEM

Technoforming is a mechanical forming process, shaping the tubes by using negative moulds, at times combined with an internal metal core.


F-MOUNT

‘F-Mount’ equipped bikes have integrated fittings for mud guards (some bikes require model specific mud guards), making fitting fast and simple.


K-MOUNT

Integrated mount on the chainstay to fit a MERIDA kickstand (or any commercial kickstand).


C-MOUNT

‘C-Mount’ equipped bikes have the fixing points for a rear rack already integrated (some bikes require model specific rear rack), making fitting fast, simple and reliable.
