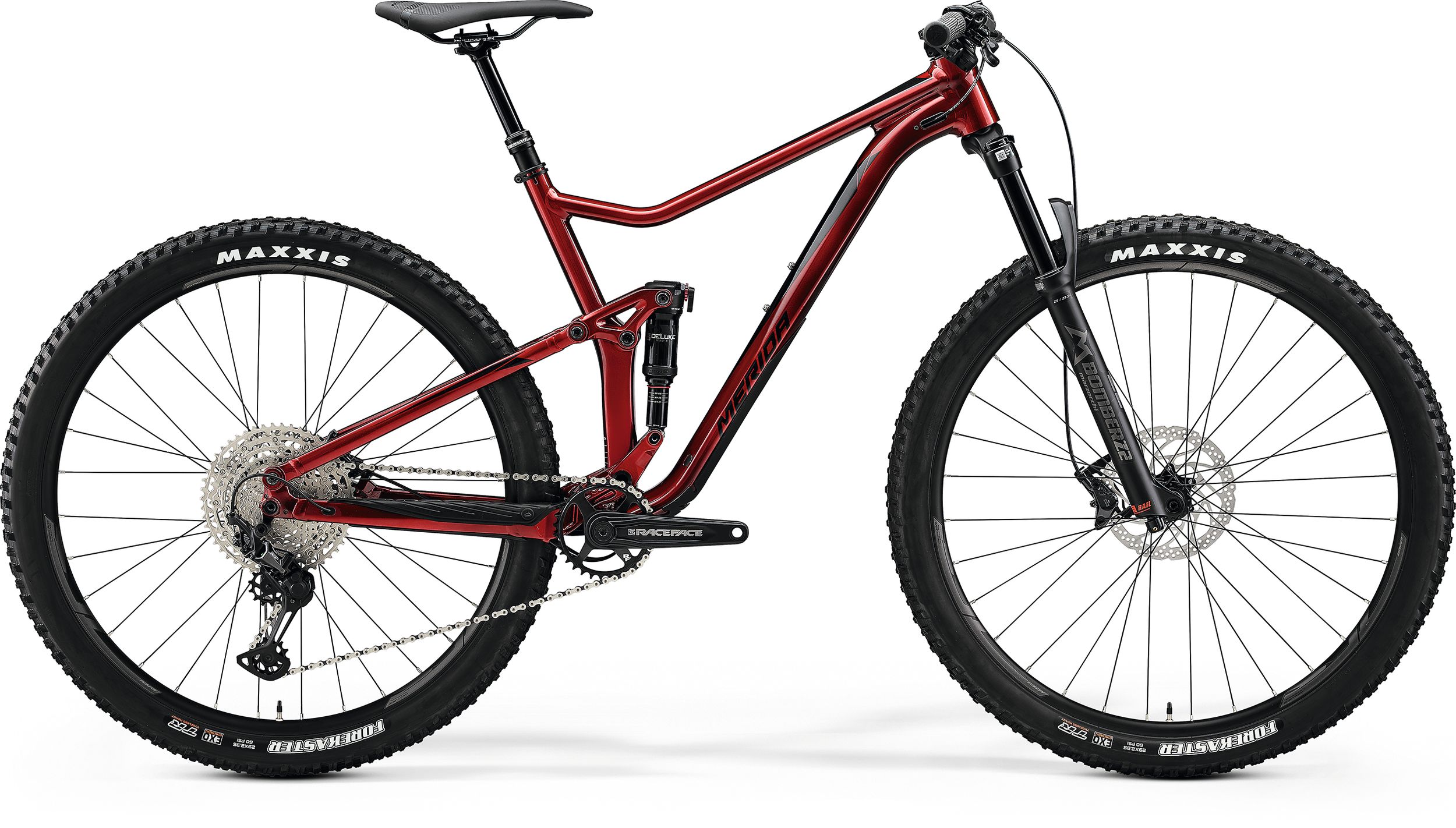

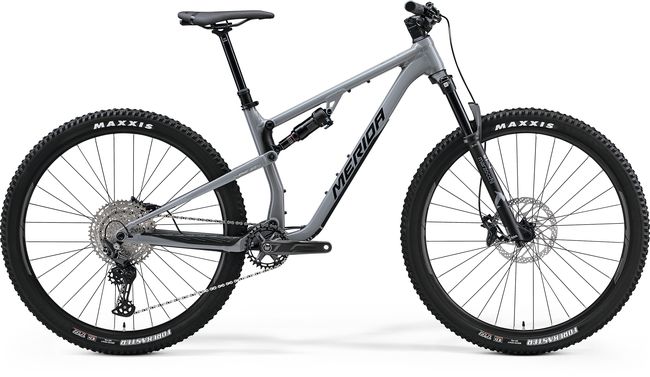

Killer value package - RockShox Deluxe Select Air shock with Marzocchi Z2 130mm forks. Shimano XT 1 x 12 rear mech and Race Face crank, Shimano Boost standard center lock hubs and Shimano hydraulic disc brakes.
Contact Local Shop

The One-Twenty is our most versatile full suspension bike, as with all the range, this bike is over forked running 130mm forks with plush 120mm rear travel.

Our designers considered both riders and mechanics, delivering a playful modern trail bike with a slack head angle, low standover height and short chain stays that’s easy to maintain.

The rear shock is held in place with trunnion mounts which due to the wider mounting increases frame stiffness and reduces shock wear. The designers can run shorter shocks and longer stroke allowing more scope for suspension tuning.

All key bolts can be adjusted from one side of the bike with a Torx 30 key without the need for removing the chain set to access the main pivot bolt.

While very much a trail bike at heart, the modern yet balanced trail bike geometry, paired with fantastic frame stiffness, created a mid-travel bike that is super capable on rough trails but also carries speed perfectly on less technically demanding tracks.

  • Float link suspension
  • 130mm Marzocchi Z2 Air fork and RockShox Deluxe Select+ shock
  • 1 x 12 Shimano XT rear mech
  • Shimano Boost standard bolt through axles
  • Shimano hydraulic disc brakes
  • Dropper seatpost
model year 2022
  • 120mm suspension travel
  • material: aluminium
  • 29 wheelsize
  • 148x12mm axle standard
  • BB92 bottom bracket standard
  • MUK 33 Hanger
frame size M, L
  • Air
  • 130mm suspension travel
  • Tapered
  • 44mm fork offset
  • 29x2.6" max. wheelsize
  • 29mm inner width
  • material: aluminium
  • Tubeless ready (tubeless tape and valves not included)
  • 110x15mm width front hub
  • 32 spoke holes
  • Centerlock
  • 148x12mm width rear hub
  • 32 spoke holes
  • Centerlock
  • 29x2.35"
  • fold
  • TR EXO Dual
  • 29x2.35"
  • fold
  • TR EXO Dual
  • including removeable lever, 6/4mm allen key
  • 32 teeth
  • 170 mm-S, 175 mm-M up
bottom bracket Race Face BB BB92– Ø24mm
  • 10-51 teeth
  • 12 speed
chain KMC X12
shifters Shimano SL -MT500-IL / Shimano Deore M6100
headset FSA NO.47/50
  • material: aluminium
  • 35mm diameter
  • 0° stem angle
  • 50 mm
stem size 50 mm
  • material: aluminium
  • 760mm width
  • 20mm rise
  • 30.9mm diameter
  • 0mm setback
  • S: 100mm travel seatpost - M: 125mm travel seatpost - L/XL: 150mm travel seatpost
seat clamp MERIDA EXPERT
Bike Frame Geometry Image
Frame Size M L
Tyre Sizes 29" 29"
St Seat Tubes mm 440 480
Tt Top Tubes mm 592 614
Cs Chain Stays mm 435 435
HTA head tube angle [°] 67.3 67.3
STA seat tube angle [°] 75.5 75.5
Bd Bottom Bracket Drops mm 40 40
Ht Head Tube Lengths mm 95 105
Fl Fork Lengths mm 541 541
R Reach mm 435 455
S Stacks mm 607 616
Wb Wheel Base mm 1161 1185
Sh Stand Over Height mm 730 759
No. Item-No. Name Info Pieces Torque NM
1 2294001180 WASHER 1
2 2294004882 WASHER 1
3 2221002191 BEARING 3802V-2RD 24D*15D*7W 1
4 2221002340 BEARING 172607V 26D*17D*7W 1
5 2300012907 SCREW 1 18
6 2300012899 BOLT 1
7 2300013812 SCREW 1 12
8 2300013801 BOLT 1
9 2294004633 WASHER 2
12 2221002254 BEARING 6800V2RS 19D*10D*5W 2
13 2300012918 SCREW 2
14 2221002265 BEARING 6801V-2RS 21D*12D*5W 6
15 2300012952 SCREW 1 14
16 2300012941 BOLT 1
17 2294002255 WASHER 6
18 2294004956 WASHER 4
19 2300013254 SCREW 4 14
20 2300013265 BOLT 4
21 2311004928 DROPOUT DH-053 1
22 2300009458 SCREW 2 4
23 2300005272 SCREW 1 5
24 2258003812 CABLE GUIDE 2
25 2258003867 CABLE GUIDE 1
26 2300012253 SCREW 1
27 2300011412 SCREW 2 4

To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.



Back to overview


When creating high-end aluminium frames, we use our proven PROLITE 66 (6066) aluminium, as it is incredibly light and durable. In addition, it works exceptionally well with our hydroforming technology, allowing us to create complex shapes, featuring triple butted wall thicknesses, an almost carbon-like appearance and the best possible stiffness-to-weight ratio. While lesser alloys might be cheaper, it is the ideal choice for high-performance bicycle frames.

Watch Video
Back to overview


Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.

Watch Video
Back to overview


This is a process we use to give a nice flat finish to our welds instead of the scaled, 'stack of coins' effect TIG welded joints often have. The welder uses the welding torch to go over the joint twice, helping to smooth out the filler material. It takes a lot of skill to do this, but it delivers strong and smart-looking frames that have the appearance of a carbon fibre frame at first look.

Watch Video
Back to overview


On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.

Watch Video
Back to overview


DOWN TUBE EXIT is a feature seen on some of our frames with internally routed cables. By slightly overlapping the downtube where it connects to the bottom bracket, it leaves a small space that allows cables to exit easily. This means they are easily accessible for routine maintenance or replacement, but it prevents excessive movement and noise that can cause wear and distraction.

Watch Video
Back to overview


Many of our frames offer internal cable routing, where the gear and brake cables are run through the frame for maximum protection and a clean look. Some internally run cables can rattle when riding over uneven surfaces, but our SMART ENTRY system prevents this from happening. Cables, housings and brake hoses are clamped under tension to prevent noisy cable movement. All inlets are completely interchangeable to deal with any kind of cable or wire.

Watch Video
Back to overview


Shimano's Di2 electronic shifting system offers fast, smooth and reliable shifting. In particular, in the road world, it has proven itself as the primary choice when top performance is at the top of the agenda. With that in mind, we have a broad selection of performance road frames that are Di2 READY and can accommodate the electrical cable, battery and other little tweaks that the system requires.

Watch Video
Back to overview


A suspension system where the lower shock mount moves as well as the upper link, giving a supple and sensitive feel over bumps. This system allows our engineers to precisely manipulate the leverage ratio, giving ultimate control of the progression of the suspension so that a FLOAT LINK rear suspension system feels like it offers more wheel travel than the numbers alone suggest.

Back to overview


This system means you only need a single tool to tighten important bolts, making it easy to secure them while out on the trail and also making routine maintenance faster and simpler. The bolts have a specially shaped head on one end that fits into a matching recess in the frame, preventing rotation. That means there is no hardware bonded into the frame itself, so damaged threads or bolts can be easily replaced.
