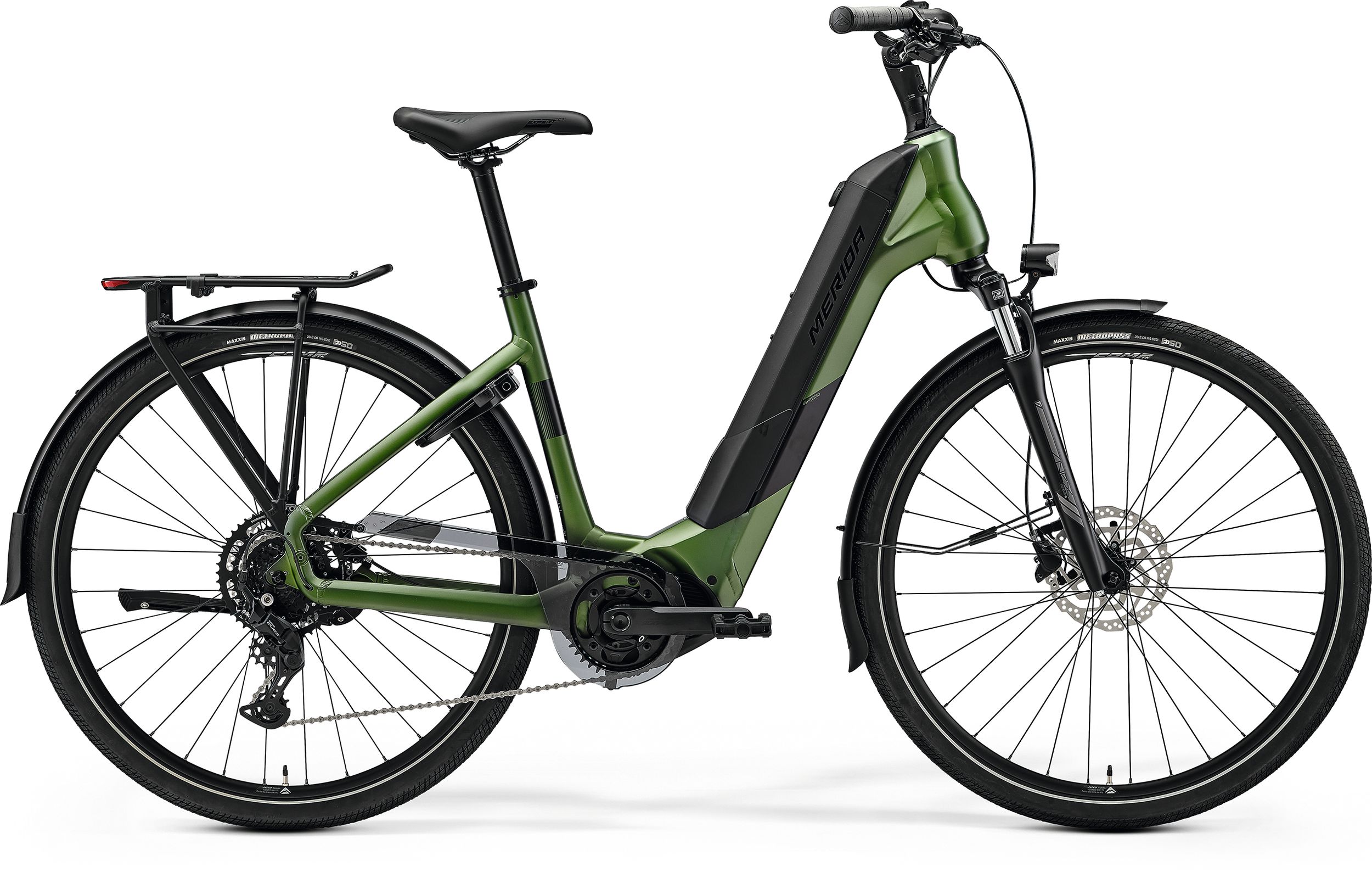

eSPRESSO CITY 400 EQ kombinerar vår smarta och styva låga instegsram med ett internt 504 Wh batteri och kraftfull Shimano EP6-motor – imponerande funktion till ett ännu bättre pris. Utrustad med Shimano 9-växlad drivlina, hydrauliska skivbromsar, skärmar, pakethållare, lampor, lås och stöd – allt du behöver från start.
Livet i staden kan vara hektiskt, så allt som hjälper dig att använda tiden bättre är välkommet. eSPRESSO CITY handlar om att ta dig dit du vill – enkelt och bekvämt – tack vare kraftfulla men mjuka elassistansmotorer, en praktisk lågt instegsram och standardutrustning som lås, skärmar, lampor och pakethållare som gör stadslivet smidigare. Alla modeller har ENERGY CRADLE-ramdesignen som rymmer ett internt batteri på 712, 630 eller 504 Wh (beroende på modell) med ännu lägre och bredare insteg samt utmärkt styvhet. Välj mellan traditionell växling eller underhållsfri navväxel.
- Extra low step-through ENERGY CRADLE frame design
- Internally mounted 504 Wh battery
- Latest powerful Shimano EP6 drive unit
- Smooth shifting Shimano 9-speed drivetrain
- Fully equipped with guards, lights, lock, rack and kickstand
- Fast-rolling 700c wheels and quality Continental Ride Cruiser 50 mm tyres with reflective strip
- material: aluminium
- 700x50C (with fender) max. wheelsize
- 135x9mm axle standard
- internal
- Coil
- 63mm suspension travel
- 700x52C max wheelsize
- 2 piston
- 2 piston
- 180 mm
- 180 mm
- material: aluminium
- 34.9mm diameter
- 0mm setback
- V-mount
- 38 teeth
- 165mm
- 11-46 teeth
- 9 speed
- 20mm inner width
- material: aluminium
- 28x2.0
- wire
- reflecting line
- 28x2.0
- wire
- reflecting line
- 100x9mm width front hub
- 32 spoke holes
- Centerlock
- 135x9mm width rear hub
- 32 spoke holes
- Centerlock
- black nipples
- 85Nm
- 504Wh
| Ramstorlek | XS | S | M | L | XL |
| Däckstorlekar | 28" | 28" | 28" | 28" | 28" |
| ST - Seat Tube (mm) | 380 | 430 | 480 | 530 | 580 |
| TT - Top Tube (mm) | 580 | 595 | 615 | 635 | 655 |
| CS - Chain Stays (mm) | 470 | 470 | 470 | 470 | 470 |
| HTA - Head Tube Angle (°) | 70 | 70 | 70 | 70 | 70 |
| STA - Seat Tube Angle (°) | 73.5 | 73.5 | 73.5 | 73.5 | 73.5 |
| BD - Bottom Bracket Drops (mm) | 65 | 65 | 65 | 65 | 65 |
| HT - Head Tube Length (mm) | 170 | 175 | 180 | 190 | 200 |
| FL - Fork Length (mm) | 475 | 475 | 475 | 475 | 475 |
| R - Reach (mm) | 386 | 399 | 418 | 435 | 452 |
| S - Stack (mm) | 656 | 661 | 665 | 675 | 684 |
| WB - Wheel Base (mm) | 1113 | 1128 | 1149 | 1169 | 1190 |
| SH - Stand Over Height (mm) | 413 | 413 | 412 | 412 | 411 |
| Siffra | Item Number | Namn | Info | Pieces | Torque NM |
| 1 | A2300000004 | SCREW | M3x0.5 L6mm | 2 | 2~4 |
| 2 | A2311000072 | RD-HANGER | DH-013F | 1 | |
| 3 | A2258000079 | CABLE PLUG | for rear brake | 1 | |
| 4 | A2300000468 | SCREW | M8x1.25 L18.5mm | 3 | 11~12 |
| 5 | A2300000469 | SCREW | M8x1.25 L23mm | 3 | 11~12 |
| 6 | A2143000124 | CABLE PLUG | for front light cable | 1 | |
| 7 | A2164000088 | MOUNT | for lower battery mount | 1 | |
| 8 | A2298000143 | SCREW | M6x1.0 L10mm | 4 | 6~8 |
| 9 | A2143000153 | BLIND PLUG | for 14mm Hole | 4 | |
| 10 | A2363000406 | PROTECTOR | for step through area | 1 | |
| 11 | A2160000012 | O-RING | OD6mm ID4mm | 2 | |
| 12 | A2221000048 | BUSHING | for battery cover | 2 | |
| 13 | A2300000530 | BOLT | M5x0.8 L39.5mm | 1 | 4~6 |
| 14 | A2300000288 | SCREW | M6x1.0 L18mm | 1 | 10~12 |
| 15 | A2300000204 | NUT | for fender; M6 | 1 | |
| 16 | A2263000017 | COVER | for battery; frame size XL | 1 | |
| 16 | A2263000016 | COVER | for battery; frame size L | 1 | |
| 16 | A2263000015 | COVER | for battery; frame size M | 1 | |
| 16 | A2263000014 | COVER | for battery; frame size S | 1 | |
| 16 | A2263000013 | COVER | for battery; frame size XS | 1 | |
| 17 | A2298000311 | SCREW | M5x0.8 L12mm | 2 | 3~5 |
| 18 | A2154000001 | COVER | Blind plug for charging port | 1 | |
| 19 | A2263000038 | COVER | for lock and battery | 1 | |
| 20 | A2298000119 | SCREW | M5x0.8 L10mm | 4 | 3~5 |
| 21 | A2136000122 | MOUNT | for charging port cover | 1 | |
| 22 | A2191000228 | HEAD SET | MERIDA/VP-8253 (MH-P16/MH-P16) for 1,5" Tapered fork | 1 | |
| 22 | A2191000224 | HEAD SET | MERIDA/VP-8254 (MH-P16/MH-P16) for 1 1/8" Tapered fork | 1 | |
| 23 | A2161000144 | COVER | for drive unit ; right side | 1 | |
| 24 | A2263000002 | COVER | for drive unit ; left side | 1 | |
| 25 | A2298000278 | SCREW | 3x16mm screw for plastic parts | 2 | 2~4 |
| 26 | A2029000040 | PROTECTOR | for Chain cover mount | 1 |
