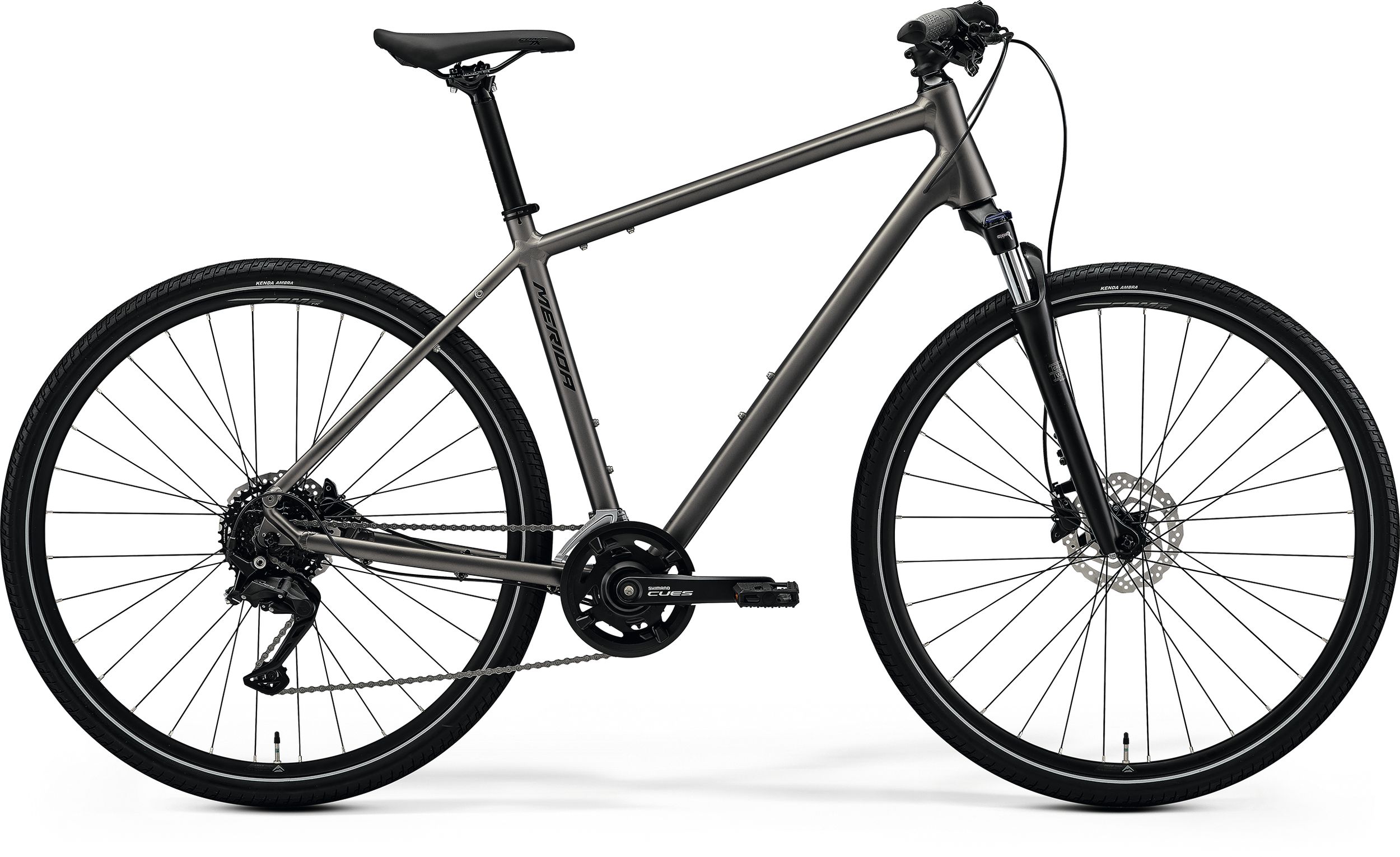

CROSSWAY 100



Modern trekking/hybrid bike with hydraulic disc brakes and reliable components. Ideal for the day to day jobs around town and fun packed adventures in the open countryside.
Köp hos lokal återförsäljare

Our updated trekking/hybrid bike now has more tyre clearance for an even more comfortable ride, with a long list of quality components, including powerful, easy-to-control hydraulic disc brakes, a broad 18-speed gear range plus a comfort and safety-enhancing suspension fork. All of this is fitted to our latest TFS lightweight aluminium frame with a comfort-orientated geometry, making the CROSSWAY 100 a perfect mix of value, day-to-day usability and leisure time versatility.

The CROSSWAY family is our versatile and proven way of getting around. Suitable for fitness training, commuting and leisurely rides through forests and on trails, they are designed to provide a comfortable place to take in the surroundings thanks to an upright riding position. Comfort-focused equipment such as suspension fork and adjustable stems on selected models means they offer the perfect blend of comfort, enjoyment and all-round functionality. An updated, high-quality aluminium frame now offers greater clearance for 50 mm tyres on 700c wheels so you can cover ground quickly with added puncture protection, grip and comfort. With the ability to mount mudguards, racks and kickstands (available separately as the EQ kit), the CROSSWAY range is the perfect choice for everyday riding. All CROSSWAY models are available as a low step-through frame, making mounting and dismounting straightforward.

  • Lightweight aluminium frame with comfort geometry and 50mm tyre clearance
  • Lockable suspension fork
  • Hydraulic disc brakes
  • Shimano 2x9 CUES drivetrain
  • Multiple fixing points for rear rack and fenders
  • Full-equipment EQ kit available separately
  • material: aluminium
  • 700x50C max. wheelsize
  • 135x9mm axle standard
  • BSA bottom bracket standard
  • Crossway EQ-kit ready
  • L-frame:-XXS,W-XS,W-S,W-M,W-L
Färg SILK WARM SLATE GREY (BLACK)
  • Coil
  • 63mm suspension travel
  • Lockout
  • 700x48C max. wheelsize
Styrlager MERIDA M2346 Neck
  • material: aluminium
  • 680mm width
  • 15mm rise
  • material: aluminium
  • 31.8mm diameter
  • 17°° stem angle
  • 90mm
Handtag MERIDA COMP TK
Framväxel Shimano CUES U4000
Växelreglage, fram Shimano CUES U4000
Växelreglage, bak Shimano CUES U4000
  • material: aluminium
  • 30.9mm diameter
  • 5mm setback
Sadelklämma MERIDA EXPERT
Sadel MERIDA COMP TK
Pedaler VP VPE-889P
Kedja KMC xGlide
kedjestyrare MTK700 SP40
  • 40-26 teeth
  • 170 mm-XXS/XS/S, 175 mm-M/XL
  • 11-36 teeth
  • 9 speed
  • 20mm inner width
  • 17mm height
  • material: aluminium
  • 700x45C
  • wire
  • reflective stripe
  • 700x45C
  • wire
  • reflective stripe
  • 100x9mm width front hub
  • 32 spoke holes
  • Centerlock
  • 135x9mm width rear hub
  • 32 spoke holes
  • Centerlock
Ekrar Black stainless

weighed at frame size M

max vikt 135 kg
Bike Frame Geometry Image
Ramstorlek M L XL
Däckstorlekar 28" 28" 28"
ST - Seat Tube (mm) 510 550 590
TT - Top Tube (mm) 590 610 630
CS - Chain Stays (mm) 460 460 460
HTA - Head Tube Angle (°) 71 71.5 71.5
STA - Seat Tube Angle (°) 73.5 73 73
BD - Bottom Bracket Drops (mm) 70 70 70
HT - Head Tube Length (mm) 155 175 205
FL - Fork Length (mm) 468 468 468
Fo framgaffel offset mm 42 42 42
R - Reach (mm) 399 406 418
S - Stack (mm) 645 667 695
WB - Wheel Base (mm) 1096 1104 1125
SH - Stand Over Height (mm) 782 817 854

För att undvika längre produktions- og leveranstider kan det i bland förekomma specifikationsändringar.

Var uppmärksam på att dessa ändringar kanske inte alltid återspeglas på produktsidor och bilder.
