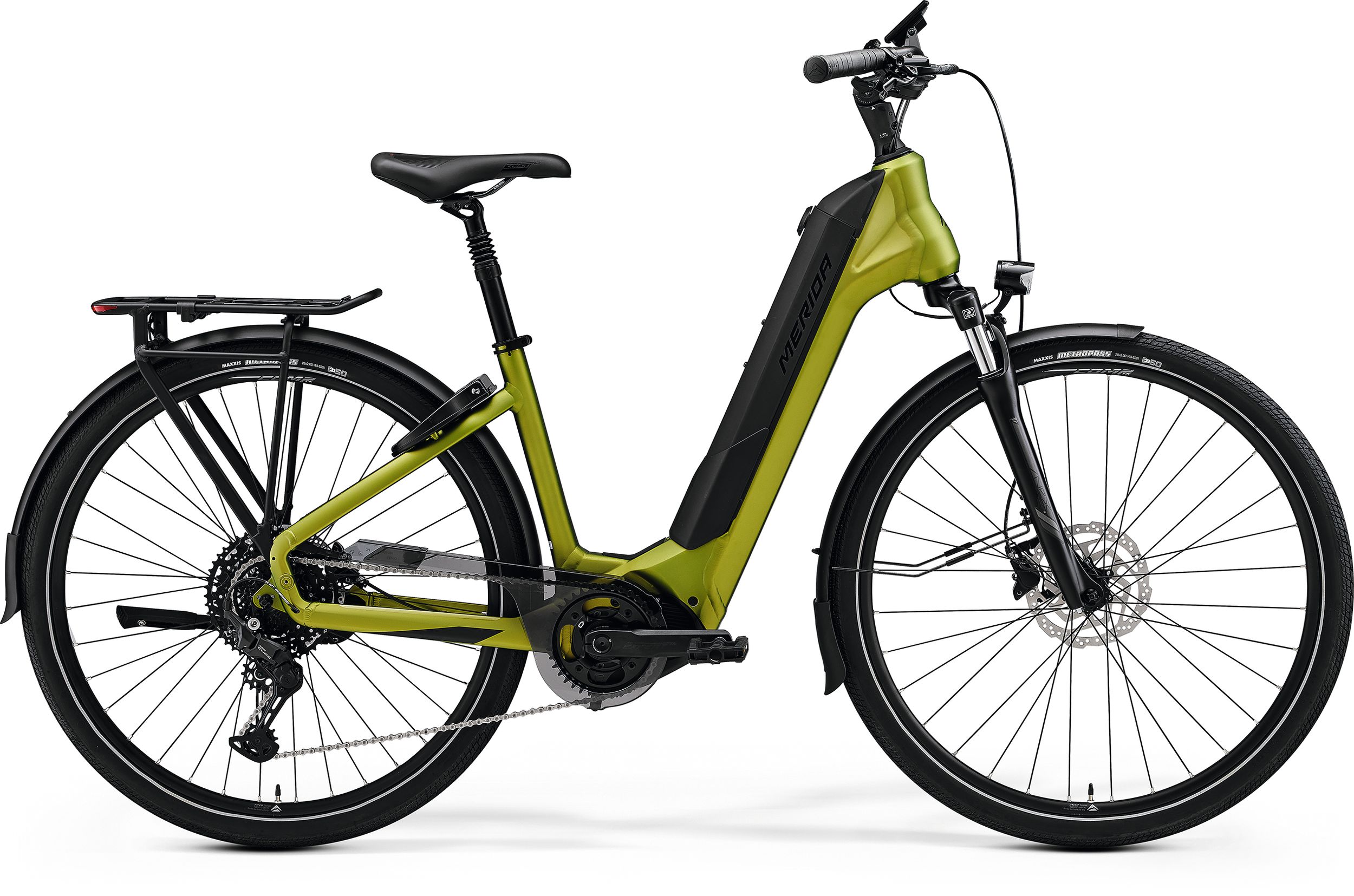

eSPRESSO CITY 575 EQ



Transport yourself in comfort, safety and style. Our strong and stiff low step-through frame with a proven, powerful Shimano drive unit and long-lasting internal battery.
Contact Local Shop

Practicality doesn't have to be boring. The eSPRESSO CITY 575 EQ manages to pack a smart-looking low step-through frame design with plenty of function thanks to internal 750 Wh battery and Shimano's new, powerful EP6 drive unit. It's fully equipped as standard, with our sleek rear rack, mudguards, lights, lock and kickstand. The crisp Shimano 10-speed drivetrain delivers the perfect shift, every time plus powerful hydraulic disc brakes are on hand to slow you down in any conditions.

Life in the city can be hectic, so anything that allows you to make the best use of your time has to be a good thing. The eSPRESSO CITY is all about getting you where you want to without fuss and in comfort, thanks to a range of smooth yet powerful pedal-assist motors, a convenient low-step-through frame and standard fit equipment such as lock, mudguards, lights and rack that make navigating urban life that much easier. All models feature the ENERGY CRADLE frame design that holds the 750 Wh, 630 Wh or 504 Wh internal (model depending) battery with an even lower and wider step-through frame with excellent stiffness, plus derailleur or low-maintenance hub gearing options.

  • Extra low step-through ENERGY CRADLE frame design
  • Internally mounted 750 Wh battery
  • New, powerful Shimano EP6 drive unit
  • Wide-range 10-speed Shimano drivetrain
  • Fully equipped with guards, lights, lock, rack and kickstand
  • Fast-rolling 700c wheels and comfy 50 mm tyres with reflective strip
model year 2024
  • material: aluminium
  • 700x50C (with fender) max. wheelsize
  • 135x9 mm axle standard
  • internal
frame size XS, S, M, L
  • Coil
  • 63 mm suspension travel
  • 700x52C max. wheelsize
motor unit TBD
battery Trendpower Internal Battery 750Wh
display Shimano SC-EN610
speed sensor Shimano EW-SS301
  • 20 mm inner width
  • material: aluminium
  • 100x9 mm width front hub
  • 32 spoke holes
  • Centerlock
  • 135x9 mm width rear hub
  • 32 spoke holes
  • Centerlock
  • 622-50
  • wire
  • reflecting line
  • 622-50
  • wire
  • reflecting line
  • 11-48 teeth
  • 10 speed
chain Shimano LG500
shifters Shimano CUES U6000
headset MERIDA 8254
  • material: aluminium
  • 31.8 mm diameter
  • adjustable
  • 65 mm-XS/S/M, 90 mm-L/XL
stem size 65 mm-XS/S/M, 90 mm-L/XL
  • material: aluminium
  • 640 mm width
  • 35 mm rise
grip MERIDA EXPERT TK
  • 30.9 mm diameter
  • 15 mm setback
  • 40 mm seatpost suspension travel
seat clamp MERIDA EXPERT
lights Herrmans H-Black MR4 E / Spanninga Co mmuter Glow XE integrated in MERIDA MIK HD carrier
frame lock Abus 4650 XL
kickstand Atranvelo ED-100-PC
mudguard Sunnywheel SW-FA311-60 (MSB)
carrier MERIDA MIK HD Carrier with Spring clip
pedal VP VPE-891

weighed at frame size M

Bike Frame Geometry Image
Frame Size XS S M L
Tyre Sizes 28" 28" 28" 28"
St Seat Tubes mm 380 430 480 530
Tt Top Tubes mm 580 595 615 635
Cs Chain Stays mm 470 470 470 470
HTA head tube angle [°] 70 70 70 70
STA seat tube angle [°] 73.5 73.5 73.5 73.5
Bd Bottom Bracket Drops mm 65 65 65 65
Ht Head Tube Lengths mm 170 175 180 190
Fl Fork Lengths mm 475 475 475 475
R Reach mm 386 399 418 435
S Stacks mm 656 661 665 675
Wb Wheel Base mm 1113 1128 1149 1169
Sh Stand Over Height mm 413 413 412 412
No. Item-No. Name Info Pieces Torque NM
1 A2300000004 SCREW M3x0.5 L6mm 2 2~4
2 A2311000072 RD-HANGER DH-013F 1
3 A2258000079 CABLE PLUG for rear brake 1
4 A2300000468 SCREW M8x1.25 L18.5mm 3 11~12
5 A2300000469 SCREW M8x1.25 L23mm 3 11~12
6 A2143000124 CABLE PLUG for front light cable 1
7 A2164000088 MOUNT for lower battery mount 1
8 A2298000143 SCREW M6x1.0 L10mm 4 6~8
9 A2143000153 BLIND PLUG for drive unit screw holes 4
10 A2363000406 PROTECTOR for step through area 1
11 A2160000012 O-RING OD6mm ID4mm 2
12 A2221000048 BUSHING for battery cover 2
13 A2300000530 BOLT M5x0.8 L39.5mm 1 4~6
14 A2300000288 SCREW M6x1.0 L18mm 1 10~12
15 A2300000204 NUT for fender; M6 1
16 A2263000017 COVER for battery; frame size XL 1
16 A2263000016 COVER for battery; frame size L 1
16 A2263000015 COVER for battery; frame size M 1
16 A2263000014 COVER for battery; frame size S 1
16 A2263000013 COVER for battery; frame size XS 1
17 A2298000311 SCREW M5x0.8 L12mm 2 3~5
18 A2154000001 COVER Blind plug for charging port 1
19 A2263000038 COVER for lock and battery 1
20 A2298000119 SCREW M5x0.8 L10mm 4 3~5
21 A2136000122 MOUNT for charging port cover 1
22 A2191000228 HEAD SET MERIDA/VP-8253 (MH-P16/MH-P16) for 1,5" Tapered fork 1
22 A2191000224 HEAD SET MERIDA/VP-8254 (MH-P16/MH-P16) for 1 1/8" Tapered fork 1
23 A2161000144 COVER for drive unit ; right side 1
24 A2263000002 COVER for drive unit ; left side 1
25 A2298000278 SCREW 3x16mm 2 2~4
26 A2029000040 PROTECTOR for Chain cover mount 1

To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.



Technology

Back to overview

HFS - HYDRO FORMING SYSTEM

‘C-Mount’ equipped bikes have the fixing points for a rear rack already integrated (some bikes require model specific rear rack), making fitting fast, simple and reliable.

Watch Video
Back to overview

X-TAPER HEADTUBE

Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.

Watch Video
Back to overview

SMOOTH WELDING

This is a process we use to give a nice flat finish to our welds instead of the scaled, 'stack of coins' effect TIG welded joints often have. The welder uses the welding torch to go over the joint twice, helping to smooth out the filler material. It takes a lot of skill to do this, but it delivers strong and smart-looking frames that have the appearance of a carbon fibre frame at first look.

Watch Video
Back to overview

INTERNAL CABLE ROUTING

On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.

Watch Video
Back to overview

DI2 READY

Shimano's Di2 electronic shifting system offers fast, smooth and reliable shifting. In particular, in the road world, it has proven itself as the primary choice when top performance is at the top of the agenda. With that in mind, we have a broad selection of performance road frames that are Di2 READY and can accommodate the electrical cable, battery and other little tweaks that the system requires.

Watch Video
Back to overview

RACELITE 61 ALUMINIUM

We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

Watch Video
Back to overview

F-MOUNT

Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

Watch Video
Back to overview

K-MOUNT

Integrated mount on the chainstay to fit a Merida kickstand (or any commercial kickstand).

Watch Video
Back to overview

C-MOUNT

Similar to our F-MOUNT, where various fixing points for mudguards are part of the frame offering, the C-MOUNT equipped bikes have the fixing points for a rear rack already integrated, making fitting fast, simple and reliable. The C-MOUNTS are an additional feature that improves the day-to-day versatility by adding loading capacity to your bike, ideal for commuting and shopping trips. Please note that some bikes require model-specific rear racks.

Watch Video
Back to overview

CASTED MOTOR BRACKET

The e-bike motor mount has a sophisticated shape that is only possible to create with casting technology. Casting this piece allows us to create a complex yet lightweight shape that gives an extremely strong connection between the motor and the frame for improved performance and reliability. It also gives the bike and motor a smooth and cleanly integrated appearance.

Watch Video
Back to overview

WIRE PORT

All control cables like gear, brake and dropper post cable enter the frame through a specifically shaped headset cap, cleaning up the cockpit area while also keeping them out of harm's way. Only the internally routed cable for the rear shock lockout enters the frame directly into the top tube for extra smooth lockout action.
