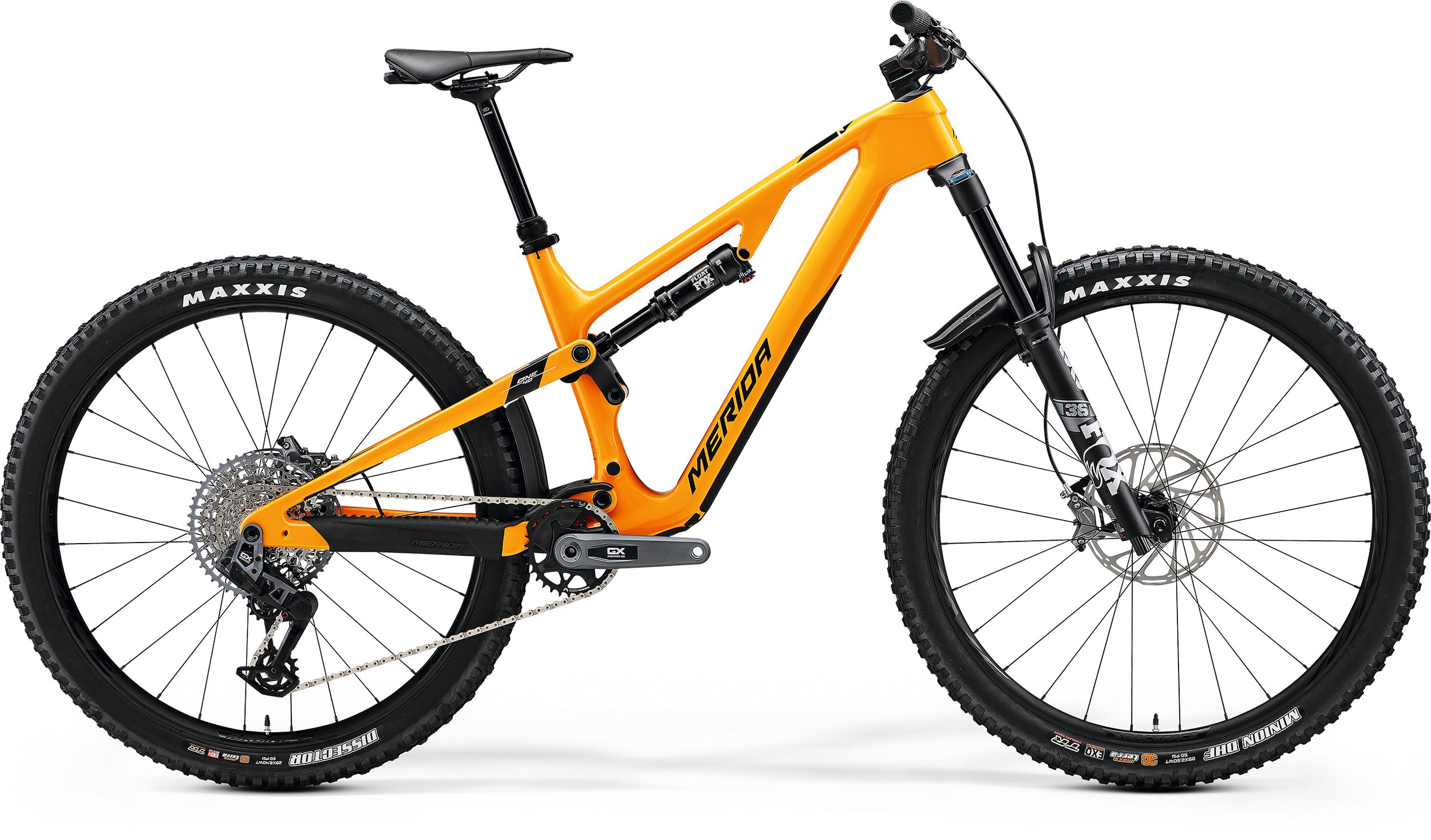

ONE-FORTY 8000

Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.

On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.

NANO MATRIX CARBON is a special kind of carbon fibre where we add extremely tiny, nano-scale particles to the resin that binds the individual carbon fibres together. These then work on a molecular level to protect them from damage. It’s so effective that it can actually increase the finished carbon fibre’s impact resistance by up to 40%, allowing us to build stronger and lighter composite frames that result in a faster and tougher bike.

This is a method we use to manufacture our carbon fibre frames. First, the carbon fibre that makes up the frame is laid around special formers. We then use a bladder to compress the layers against the outside of the frame mould, giving a smooth and wrinkle-free internal finish, removing any voids in between the layers of carbon that can cause potential weak points, resulting in a stronger, lighter frame.

This system means you only need a single tool to tighten important bolts, making it easy to secure them while out on the trail and also making routine maintenance faster and simpler. The bolts have a specially shaped head on one end that fits into a matching recess in the frame, preventing rotation. That means there is no hardware bonded into the frame itself, so damaged threads or bolts can be easily replaced.

A suspension design where the traditional pivot point on the seat stay is eliminated in favour of a flexstay design. This uses the compliance of the material and specific shaping of the tubes to allow for the seat and chain stays to move apart as the suspension moves through the travel. By removing this pivot point at the seat and chain stay junction, we save weight, reduce maintenance needs and add stiffness to the frame structure.

All control cables like gear, brake and dropper post cable enter the frame through a specifically shaped headset cap, cleaning up the cockpit area while also keeping them out of harm's way. Only the internally routed cable for the rear shock lockout enters the frame directly into the top tube for extra smooth lockout action.

Suspension system that uses a Flexstay design to reduce weight and maintenance, is Adjustable to run 29” or 27.5” wheels without altering the geometry and has Size Tuned shock progression that increases with frame size, so lighter and smaller riders can access all of the travel and heavier riders get the support they need on big hits.

An optional extra coverage mudguard that bolts rigidly to the back end of our bikes, protecting the rider from dirt and water spray while reducing noise, movement and prevent damage to the paintwork.

An easy-to-remove cover underneath the bottom bracket. The large port provides easy access to all the hoses and cables that run through the bottom bracket area, making it much easier and faster to route, service or replace your dropper post, brake hose and gear cables. Also allows the use of the downtube for storage.
