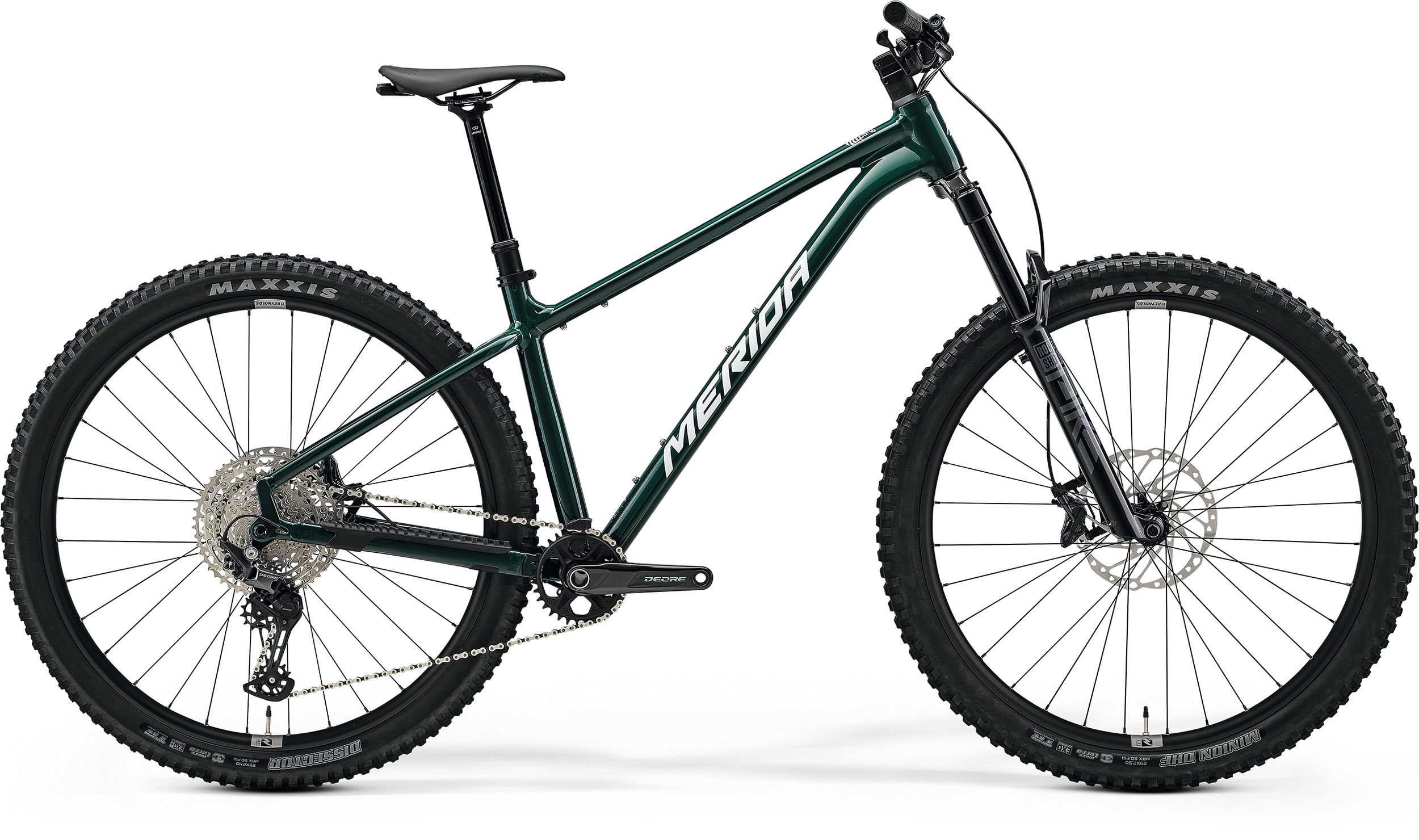

BIG.TRAIL 600



The perfect ingredients for your next trail session - and it's a looker too. Grin-inducing progressive geometry paired with a tough frame and long travel fork to soak up punishment make it ready to go.
Find Dealer

The BIG.TRAIL 600 is the top dog of our progressive trail hardtail lineup. The third generation of our trail hardtail builds on an award-winning heritage - and it turns things up a notch. It's more capable and fun than ever, thanks to new geometry that boosts the descending ability to scary-fast levels and the climbing ability up to 'mountain goat'. We've also made sure the show is as good as the go, with sleeker and more refined looks, plus extra frame protection to keep it that way.

The BIG.TRAIL is back and better than ever! Hailed by the international mountain bike press as one of the best trail hardtails around, we've tweaked it so it goes up, down and along even faster - which obviously means more fun. With updated, progressive geometry, the new BIG.TRAIL builds on an incredibly successful heritage, with a slack head angle and extended reach helping tame the gnarliest trails and a steeper seat angle that makes climbing up to do it again a breeze. We've also given it a slicker and tricker look and improved the frame protection too, so it'll stay looking good for longer. Join the BIG.TRAIL family and enjoy hassle-free trail fun in spades. Available from XSmall to XLarge, perfect for finding your preferred size and reach options.

  • Durable double butted aluminium frame
  • Shimano 4-piston Deore brakes and RockShox Pike 140 mm trail fork
  • Progressive trail bike geometry with long reach, slack head angle and steep seat angle
  • 29er wheels specced with 2.5" front and 2.4" rear tyre with aggressive trail pattern
  • Extremely low standover height paired with long travel dropper posts
  • 12-speed Shimano Deore drivetrain

Awards & Media

  • material: aluminium
  • 29x2.4" max. wheelsize
  • 148x12mm axle standard
  • BSA bottom bracket standard
frame size XShort, Short, Mid, Long, XLong
  • Color: glossy deep forest green TC-6261
  • Air
  • 140mm suspension travel
  • tapered
  • platform
  • 44mm fork offset
  • 29x2.6 max. wheelsize
  • Upper and lower IPS sealing
  • material: aluminium
  • 780mm width
  • 30mm rise
  • material: aluminium
  • 35mm diameter
  • 0° stem angle
  • 40 mm
grip MERIDA COMP TR
  • 34.9mm diameter
  • 0mm setback
  • XSHORT: 150mm travel seatpost - SHORT/MID : 170mm travel seatpost - LONG: 200mm travel seatpost - XLONG: 230mm travel seatpost
  • 25% recycled material
  • V-mount
  • incl. MERIDA minitool
chain KMC X12
  • 32 teeth
  • 165mm XSHORT, SHORT, MID and LONG
  • 10-51 teeth
  • 12 speed
  • 29x2.5"
  • fold
  • TR EXO 3C MaxxTerra
  • 29x2.4"
  • fold
  • TR EXO+ 3C MaxxTerra
  • including removeable lever, 6/4mm allen key

weighed at frame size M

Bike Frame Geometry Image
Frame Size XShort Short Mid Long XLong
Tire Sizes 29" 29" 29" 29" 29"
St Seat Tubes Mm 385 400 420 445 475
Tt Top Tubes Mm 559 581 603 630 657
Cs Chain Stays Mm 435 435 435 435 435
Hta Head Tube Angles Deg 64 64 64 64 64
Sta Seat Tube Angle Deg 76.5 76.5 76.5 76.5 76.5
Bd Bottom Bracket Drops Mm 70 70 70 70 70
Ht Head Tube Lengths Mm 90 100 110 120 130
Fl Fork Lengths Mm 551 551 551 551 551
R Reachs Mm 415 435 455 480 505
S Stacks Mm 627 636 645 654 663
Wb Wheel Base Mm 1165 1189 1214 1243 1272
Sh Stand Over Height Mm 715 721 724 726 729
Str Stack To Reach Ratio Pc 1.51 1.46 1.42 1.36 1.31
Seat Post Mounting Depth Max Mm 300 315 335 360 390
