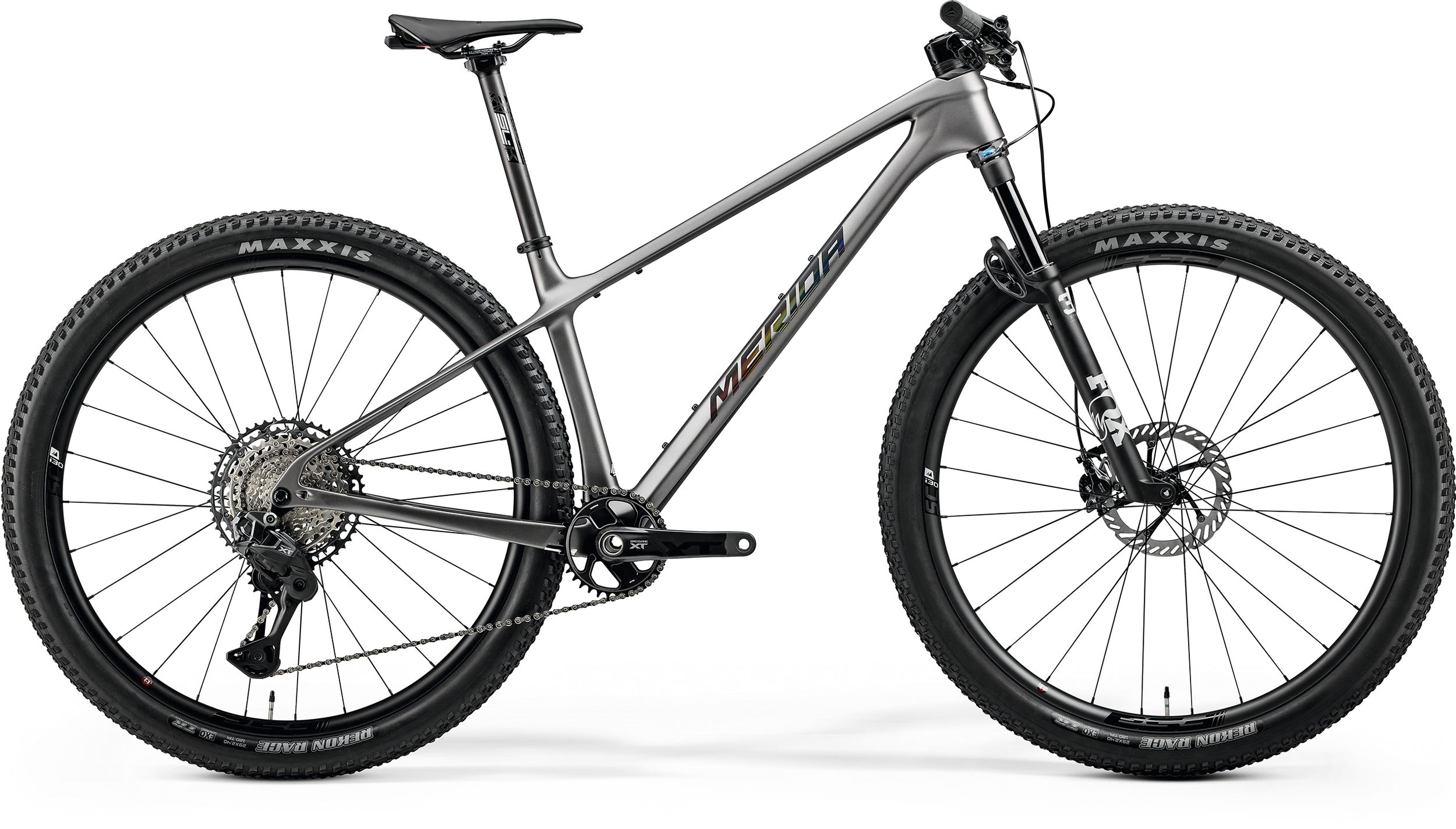

BIG.NINE XT



More demanding cross-country tracks need more capable bikes - so that's what we've made. A lightweight carbon fibre frame, carbon wheels and cockpit plus rapid-fire wireless shifting for benchmark performance.
Händler finden

Cross-country race tracks are more demanding than ever, which is why the BIG.NINE XT is capable than ever too. Our lightweight CF3 carbon frame with progressive geometry is paired with the lightning-fast wireless shifting of Shimano XT Di2 to give a supremely capable ride. The Fox 32 SC Performance fork uses a stiff chassis to deliver 100 mm of controlled travel with a bar-mounted lockout, while FSA's NS SIC one-piece cockpit and SCi30 carbon wheels minimise weight and maximise speed.

When it comes to the demanding world of cross-country mountain biking, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes with the choice of carbon or two different aluminium frames to deliver a ride for all budgets. The latest CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today. They also have downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. For riders starting out, the updated BIG.NINE TFS offers more relaxed geometry and builds that deliver great value and versatility on or off the trail, with BIG.SEVEN TFS models using 27.5" wheels to deliver size for shorter riders. Our classic XC hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we have gained in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship that 'Made in Taiwan' stands for.

  • Lightweight CF3 carbon fibre frame with 2.4" tyre clearance
  • Progressive geometry with AGILOMETER sizing for confident handling
  • Fox 32 SC Performance fork with 100 mm travel and remote lockout
  • Shimano XT Di2 12-speed wireless drivetrain
  • FSA SC i30 carbon wheels and fast rolling Maxxis tyres
  • Carbon fibre seatpost and one-piece carbon cockpit
  • material: carbon
  • 29x2.4" max wheelsize
  • 148x12mm axle standard
  • BSA bottom bracket standard
Rahmengrössen M, L, XL
Farbe SILK GUNMETAL GREY (HOLO BLACK)
  • Air
  • 100mm suspension travel
  • Tapered
  • 2 position remote lockout
  • 29x2.4" max. wheelsize
  • 44 mm fork offset
  • 34 teeth
  • S/M: 170 mm, L/XL/XXL: 175 mm
  • 10-51 teeth
  • 12 speed
  • material: carbon
  • 760mm width, -7°
  • S/M/L:60 mm, XL: 80 mm
Spacer Acros ICR to FSA SIC adapter BG401 and 5mm spacer BG402
Griffe MERIDA COMP TR
  • 29x2.4" WT
  • tubeless ready
  • 3C MaxxTerra EXO
  • 29x2.4" WT
  • tubeless ready
  • 3C MaxxTerra EXO
  • 110x14mm width front hub
  • 148x12mm width rear hub
  • 30mm inner width
  • Centerlock *Shimano Microspline
  • material: carbon
  • Tubeless ready (tubeless tape installed)
  • including removeable lever, 6/4mm allen key
Kette KMC X12
  • material: carbon
  • 30.9mm diameter
  • 0mm setback
  • reycled
  • V-mount
  • incl. MERIDA minitool
Sattelklemme MERIDA EXPERT

weighed at frame size M

Bike Frame Geometry Image
Ramengröße M L XL
Laufradgrösse 29" 29" 29"
St Seat Tubes Mm 410 440 470
Tt Top Tubes Mm 611 633 655
Cs Chain Stays Mm 433 436 439
Hta Head Tube Angles Deg 68 68 68
Sta Seat Tube Angle Deg 75.3 75.3 75.3
Bd Bottom Bracket Drops Mm 65 65 65
Ht Head Tube Lengths Mm 95 105 115
Fl Fork Lengths Mm 506 506 506
R Reachs Mm 452 472 492
S Stacks Mm 606 615 624
Wb Wheel Base Mm 1146 1173 1199
Sh Stand Over Height Mm 704 710 731

Technologien

Back to overview

FLEX-STAY

Profil und Carbon-Layup von Ketten- und Sitzstreben wirken zusammen wie eine Blattfeder, nehmen Fahrbahnstöße auf und reduzieren Vibrationen – für einen spürbar höheren Komfort.

Watch Video
Back to overview

X-TAPER HEADTUBE

Die Verwendung eines Gabelschaftrohrs mit 1 1/8" Lager oben und 1 1/4" oder 1 1/2" Lager an der Unter­seite sorgt für höchste Steifigkeit und ein präzises, sicheres Lenkverhalten, das Vertrauen schafft.

Watch Video
Back to overview

INTERNAL CABLE ROUTING

Die Kabel werden im Rahmen geführt und treten durch unauffällige Anschläge ein und aus. Das Rad sieht schöner aus, während die Züge vor Feuchtigkeit und Schmutz geschützt sind.

Watch Video
Back to overview

DI2 READY

Räder und Rahmen mit dem Symbol „Di2 Ready“ sind für die Installation der Di2-Technologie vorbereitet. Der Akku wird in der Sattelstütze oder im Ga­belschaft untergebracht.

Watch Video
Back to overview

NANO MATRIX CARBON

Um bei Carbonrahmen maximale Festigkeit zu gewährleisten, werden die Fasern in ein Epoxidharz mit beigemengten Nano­partikeln eingebettet, was die Schlagfestigkeit um bis zu 40 % erhöht.

Watch Video
Back to overview

AWS

Bei der Fertigung einzelner Carbon-Elemente wird eine mit Luft gefüllte Blase verwendet, die sicherstellt, dass auf der Innenseite des Rohrs keine Falten entstehen, denn diese könnten das Gewicht erhöhen und Schwachstellen bilden. Das Ergebnis ist ein leichterer, steiferer und stabilerer Rahmen.

Watch Video
Back to overview

WIRE PORT

Selbstentwickelter Steuersatz mit speziellem Einlass für alle Steuerkabel. Neben der aufgeräumten Optik verhindert dieser gleichzeitig das Verkratzen des Rahmens durch freiliegende Zughüllen. Je nach Modell sind die Züge komplett innen verlegt (einschließlich Lenker & Vorbau) oder teilweise integriert, wenn die Züge unter dem Vorbau in den Rahmen geführt werden.
