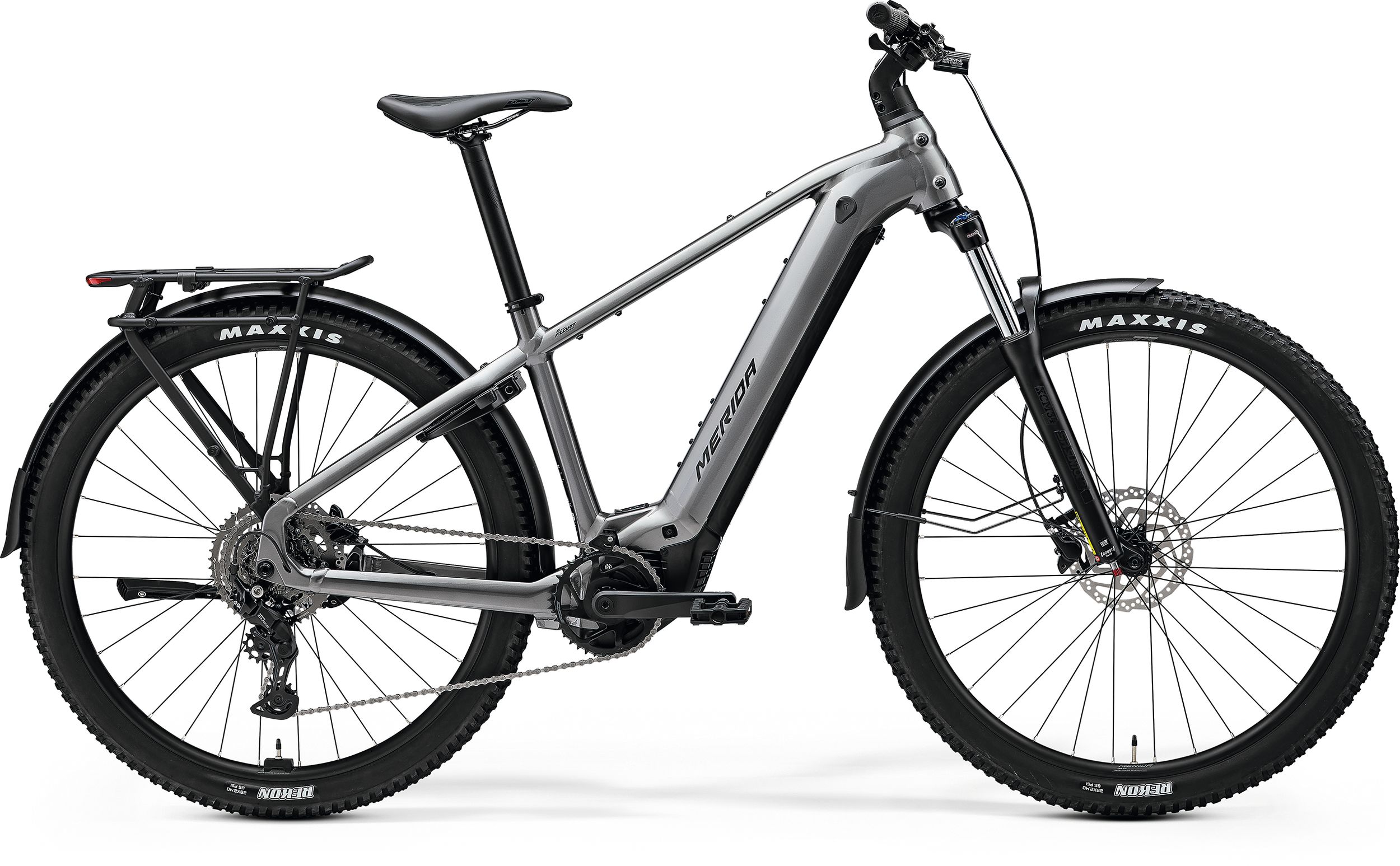

eFLOAT CC 400 EQ



A multitalented mixed-road machine. We pair fat MTB-style tyes and suspension fork for comfort on a robust aluminium frame with the power of a Bosch CX drive unit and 600 Wh battery for go-anywhere ability.

The eFLOAT CC 400 EQ offers an incredibly versatile e-bike at a great price. Combining our robust aluminium frame and a powerful Bosch CX drive unit plus 600 Wh battery with fat 2.4" MTB-style tyres on 29" wheels and a 120 mm suspension fork means this is an e-bike that's happy to explore off the beaten track. Whether you're in the city or exploring the forest, quality kit from Shimano and Suntour will get you safely there and back.

When life is busy, you need a bike that will help you get the most out of your time. Whether you’re getting to work, taking a cross-town shopping trip or escaping it all to recharge your batteries at the weekend, the MERIDA eFLOAT lineup has a bike for you. An e-bike is an incredibly versatile tool for work or play - but the eFLOAT lineup is more versatile than most thanks to practical and versatile frame designs paired with strong and supportive Bosch drive systems; each will give you more time to do the things that matter. Offering TK trekking, CC SUV-style and HD light cargo options, all bikes come with mudguards, a rear rack, a kickstand, a built-in lock, plus front and rear lights as standard, and each bike has a low step through frame option if you need more clearance. We also use our sleek WIRE PORT cable routing system as standard, so the bikes look as good as they ride. By combining our expertise in aluminium frame design with Bosch’s refined and powerful drive systems, numerous battery options and intuitive display units, we’ve created a trio of models that are subtly adapted to suit your needs.

  • All aluminium frame with 29" wheels
  • Off-road ready with Suntour XCM 120 mm fork
  • Maxxis Rekon 2.4" tyres with MTB-style tread
  • Powerful Bosch CX drive unit and removable 600 Wh battery
  • Shimano CUES U6000 9-speed drivetrain
  • Fully equipped with lights, guards, lock and kickstand
satellite_charging_port Bosch Cable PowerTube Charging Socket 350mm
  • material: aluminium
  • 29"x2.4" with fender max. wheelsize
  • 148x12mm axle standard
  • intube
frame size S, M, L, XL
  • Coil
  • 120mm suspension travel
  • 29x2.4" max wheelsize
motor unit MERIDA Custom Battery Cover
drive unit Bosch Performance Line CX
battery charger Bosch 2A Charger (220-240V)
display Bosch Purion 200
speed sensor Bosch Rim Magnet, EB11.200.015 + EB11.200.02S
  • 110x15mm width front hub
  • 148x12mm width rear hub
  • 28mm inner width
  • material: aluminium
  • Tubeless ready (tubeless tape and valves not included)
  • 29"
  • 15x100mm width front hub
  • 32 spoke holes
  • Centerlock
  • 12x148mm width rear hub
  • 32 spoke holes
  • Centerlock
  • including removeable lever, 6/4mm allen key
  • 11-46 teeth
  • 9 speed
chain Shimano LG500
shifters Shimano Cues U4000-9
headset Acros ICR MERIDA INTEGRATED neck w/ Blocklock
  • material: aluminium
  • 31.8mm diameter
  • S/M/W-S/W-M :70mm, L/XL/W-L/W-XL :90mm
stem size S/M/W-S/W-M :70mm, L/XL/W-L/W-XL :90mm
  • material: aluminium
  • 720mm width
  • 10mm rise
grip MERIDA COMP TK
  • material: aluminium
  • 34.9mm diameter
  • 0mm setback
seat clamp MERIDA EXPERT
carrier MERIDA MIK HD Carrier with Spring clip & Spanninga rear light
mudguard Sunnywheel SW-FA311-70A/ SW-FA311-70E1
kickstand Atranvelo ED-100-PC
frame lock Abus 4650 XL
pedal VP VPE-891
Bike Frame Geometry Image
Frame Size S M L XL
Tyre Sizes 29" 29" 29" 29"
St Seat Tubes mm 380 430 480 530
Tt Top Tubes mm 588 605 625 645
Cs Chain Stays mm 475 475 475 475
HTA head tube angle [°] 67.5 67.5 67.5 67.5
STA seat tube angle [°] 74.5 74.5 74.5 74.5
Bd Bottom Bracket Drops mm 62.5 62.5 62.5 62.5
Ht Head Tube Lengths mm 115 120 130 140
Fl Fork Lengths mm 538 538 538 538
R Reach mm 408 425 441 459
S Stacks mm 647 651 661 670
Wb Wheel Base mm 1176 1194 1215 1237
Sh Stand Over Height mm 729 758 759 760
Str Stack To Reach Ratio Pc 1.58 1.53 1.49 1.45
Seat Post Mounting Depth Max Mm 225 300 300 300
No. Item-No. Name Info Pieces Torque NM
1 A2191000255 HEAD SET Acros AZA-772 1
2 A2298000144 SCREW M5x0.8 L10mm 10 3~5
3 A2143000129 COVER for lock opening 1
4 A2263000074 COVER for battery 1
5 A2298000071 SCREW M5x0.8 L15mm 2 3~5
6 A2298000160 SCREW M4x0.7 L10mm 7 3~5
7 A2263000021 MOUNT for charging port 1
8 A2263000073 PROTECTOR for motor right side 1
9 A2300000256 SCREW M4x0.7 L10mm 1 3~5
10 A2263000072 PROTECTOR for motor left side 1
11 A2298000278 SCREW 3x16mm screw for plastic parts 2 2~4
12 A2232000064 CHAIN GUIDE for Bosch with 55mm chainline 1
13 A2300000204 NUT for fender; M6 1
14 A2300000521 SCREW M6x1 L25mm (TK, HD model) 1 10~12
15 A2300000520 SCREW A2063000002 1 10~12
16 A2258000117 CABLE PLUG for rear brake 1
17 A2311000149 RD-HANGER UDH 1
18 A2002000135 THRU AXLE EXPERT TR; L=178.5mm M12x1 TL=13.5mm 1
19 A2184000060 KICKSTAND for rear mount 1 10~12
20 A2184000095 KICKSTAND for center mount 1 15~17
25 A2298000178 SCREW M5x0.8 L8mm 4 6~8
26 A9085000045 MOUNT Bosch PT600/800 battery rail 1

To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.
