• material: aluminum
  • 29 wheelsize
  • 135x9mm axle standard
  • BSA bottom bracket standard
  • Smooth welding
frame size M, L, XL

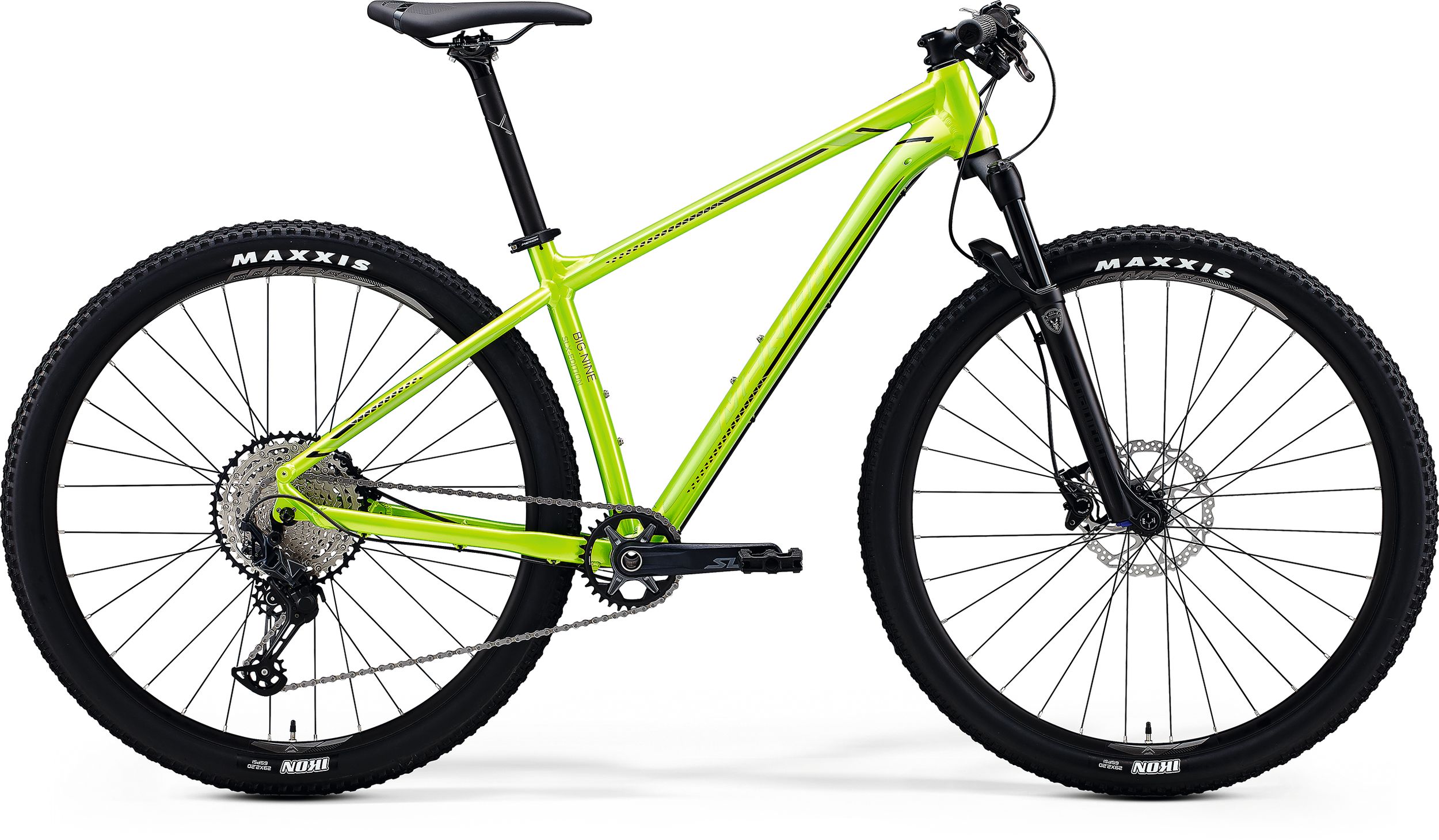

color GLOSSY GREEN (BLACK)
  • Air
  • 100mm suspension travel
  • Tapered
  • Remote lockout
  • 51mm fork offset
headset MERIDA M2331
  • material: aluminium
  • 720mm width
  • flat
  • material: aluminium
  • 31.8mm diameter
  • 6° stem angle
  • S-70 mm, M-80 mm, L-90 mm, XL-100 mm, XXL-110 mm
grip MERIDA COMP EC
derailleur (r) Shimano SLX Shadow+
  • material: aluminium
  • 30.9mm diameter
  • 0mm setback
saddle MERIDA COMP CC
  • 32 teeth
  • 170 mm-S, 175 mm-M up
bottom bracket Shimano BB-MT800
pedal VP VPE-891
chain Shimano SLX
crank 170 mm-S, 175 mm-M up
  • 10-51 teeth
  • 12 speed

weighed at frame size M and 29" wheels without pedals

Bike Frame Geometry Image
Frame Size M L XL
Tire Sizes 29" 29" 29"
St Seat Tubes Mm 430 470 510
Tt Top Tubes Mm 590 610 630
Cs Chain Stays Mm 440 440 440
Hta Head Tube Angles Deg 70 70 70
Sta Seat Tube Angle Deg 73 73 73
Bd Bottom Bracket Drops Mm 60 60 60
Ht Head Tube Lengths Mm 115 130 145
Fl Fork Lengths Mm 506 506 506
R Reachs Mm 398 414 429
S Stacks Mm 628 642 656
Wb Wheel Base Mm 1090 1110 1131
Sh Stand Over Height Mm 727 763 800
Body Height Cm 167 - 183 177 - 190 187 - 196

Category Highlights

Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we were able to gain in 48 years of bike production and manufacturing. The BIG.NINE and BIG.SEVEN range symbolises the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan'.

Following in the footsteps of BIG.NINE/SEVEN TFS frame which was introduced in 2018, the SPEED frame also received a makeover for the 2019 season. The introduction of slim tube shapes creates a new look and a more relaxed geometry, through a shorter top tube and a higher head tube, resulting in a more upright riding position and enhanced trail visibility. The new frame also comes with IS brake mounts that are positioned within the rear triangle as well as with kickstand and fender mounts.

6061 double butted and technoformed aluminium frame with more relaxed geometry. Comes equipped with class leading, premium technologies such as smooth welding, tapered head tube, inboard disc mounts, internal cable routing as well as F, C and K-mounts.

Dependent on frame size we offer 650B or 29er versions on our TFS and SPEED frame level. The requirements of smaller riders (reduced standover height, preferred lower cockpit) are best met by 650B on S and M frame sizes whilst at the other side of the spectrum, L and XL only come with 29er wheels. Size M is available in either 650B or 29er.

All models down to the BIG.NINE LITE frame level feature a 30.9 mm seat post, the enhanced connection area increases the strength around the top tube/seat tube join and allows the option of fitting a dropper seat post. Models down to BIG.NINE LIMITED allow internal cable routing for the dropper post while the remaining models would require external routing.

Cables, housings and brake hoses are clamped under tension to prevent rattling when the trail gets rough. All inlets are completely interchangeable to deal with Di2, hydraulic hoses, brake cable and gear cable housings etc.

Our carbon and LITE aluminium models feature a long 422 mm reach, steep 73.5° seat angle, slack 70° head angle and an 80 mm stem (BIG.NINE – M), affording the BIG.NINE next-generation XC geometry. Aggressive agility meets stable calmness; perfect for today’s demanding courses.

Technologies

Back to overview

X-TAPER HEADTUBE

Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.

Watch Video
Back to overview

SMOOTH WELDING

This is a process we use to give a nice flat finish to our welds instead of the scaled, 'stack of coins' effect TIG welded joints often have. The welder uses the welding torch to go over the joint twice, helping to smooth out the filler material. It takes a lot of skill to do this, but it delivers strong and smart-looking frames that have the appearance of a carbon fibre frame at first look.

Watch Video
Back to overview

INTERNAL CABLE ROUTING

On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.

Watch Video
Back to overview

DOWN TUBE EXIT

DOWN TUBE EXIT is a feature seen on some of our frames with internally routed cables. By slightly overlapping the downtube where it connects to the bottom bracket, it leaves a small space that allows cables to exit easily. This means they are easily accessible for routine maintenance or replacement, but it prevents excessive movement and noise that can cause wear and distraction.

Watch Video
Back to overview

RACELITE 61 ALUMINIUM

We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

Watch Video
Back to overview

TFS - TECHNO FORMING SYSTEM

Manipulating the tube shape and thickness greatly impacts the appearance, weight and functionality of our aluminium frames. One technology that allows us to do that is TECHNO FORMING, where plain aluminium tubes get mechanically formed by using an external form and an internal metal core. The result, beautifully shaped tubes with varying wall thickness, ready to be used to create our technoformed aluminium frames.

Watch Video
Back to overview

F-MOUNT

Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

Watch Video
Back to overview

K-MOUNT

When using your bike in an urban environment, where you might not always have the option to use a specific bike stand, a kickstand is an ideal solution to park your bike safely. Some of our bikes come with a neatly integrated K-MOUNT, which makes fitting a MERIDA kickstand (or any commercial kickstand) easy. And if you don’t want to have a kickstand and prefer the clean appearance of your frame, the K-MOUNT is neatly tucked away underneath your chainstay, difficult to spot if you don’t know it is there.

Watch Video
Back to overview

C-MOUNT

Similar to our F-MOUNT, where various fixing points for mudguards are part of the frame offering, the C-MOUNT equipped bikes have the fixing points for a rear rack already integrated, making fitting fast, simple and reliable. The C-MOUNTS are an additional feature that improves the day-to-day versatility by adding loading capacity to your bike, ideal for commuting and shopping trips. Please note that some bikes require model-specific rear racks.
