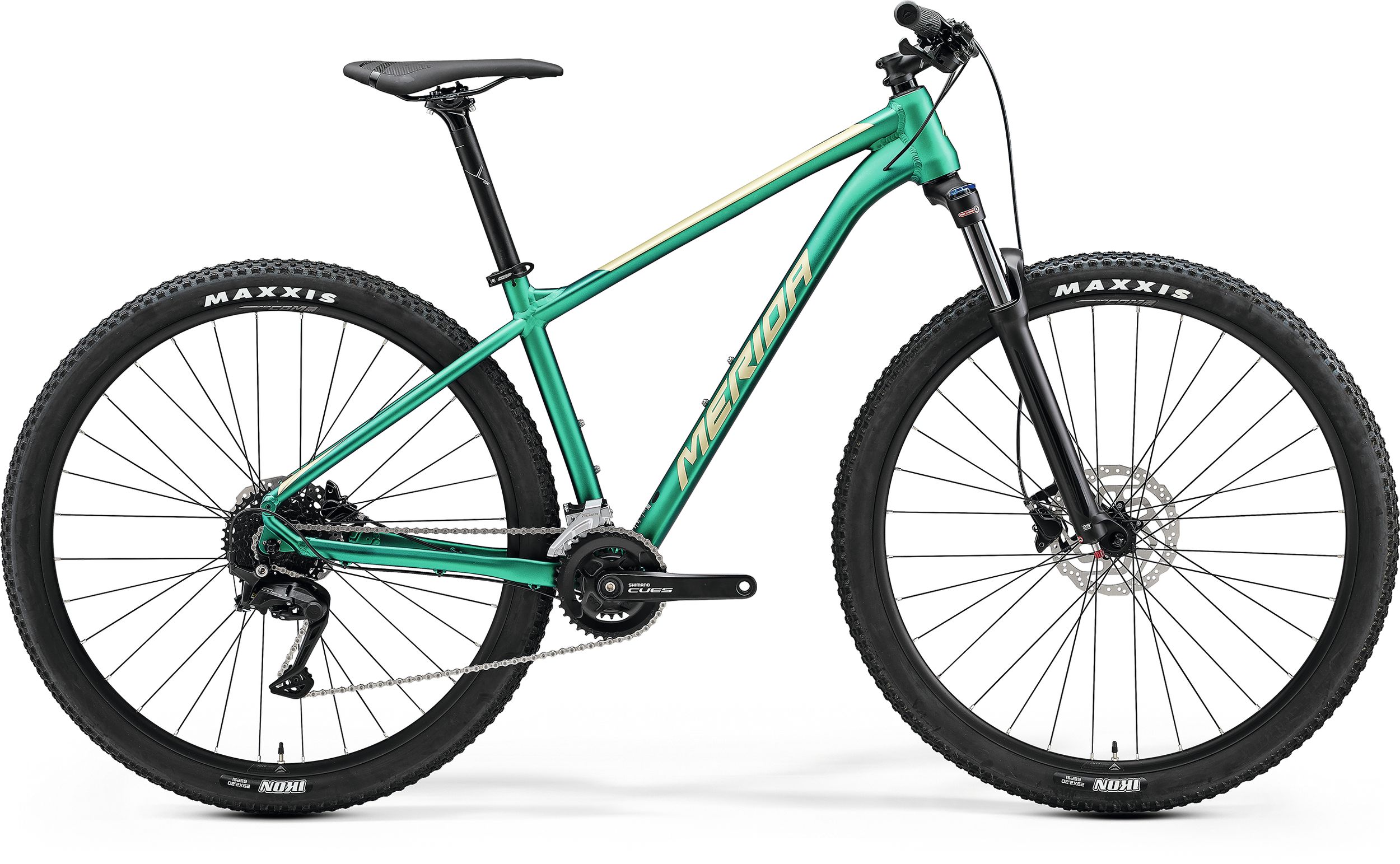

Featuring a 100 mm air suspension fork and fast-rolling 29er wheels, the BIG.NINE 100 allows you to cover ground quickly and comfortably. The slightly more minimalistic double chainring setup provides a broad range of gears, perfect for long off-road sessions and fast blasts through the urban jungle. The slightly more upright riding position puts less strain on the lower back and also improves the visibility of what lies ahead.
Mountain biking is one of the most varied cycling disciplines and probably the most demanding when it comes to equipment. While full suspension bikes offer amazing riding characteristics, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes in carbon and aluminium and features multiple geometry options. The updated CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today, with downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. The more relaxed geometry of the BIG.NINE TFS and SPEED offers a more comfortable, upright riding position. Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we could gain in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan' symbolises.
- Double butted aluminium frame with 29er wheels Less aggressive and more upright geometry for maximum control and comfort SR Suntour 100 mm travel air suspension fork with lockout Shimano 9-speed drivetrain with double chainring setup Hydraulic disc brakes* Internal cable routing
- material: aluminum
- 29" wheelsize
- 135x9 mm axle standard
- BSA bottom bracket standard
- Smooth welding
- Air
- 100 mm suspension travel
- Lockout
- 46 mm fork offset
- 36-22 teeth
- 170 mm-S, 175 mm-M up
- 11-36 teeth
- 9 speed
- 2 piston
- 2 piston
- 180 mm
- 160 mm
- 29x2.2"
- wire
- 29x2.2"
- wire
- 20 mm inner width
- material: aluminium
- material: aluminium
- 30.9 mm diameter
- 0 mm setback
- V-mount
weighed at frame size M
| Ramengröße | S | M | L | XL | XXL |
| Laufradgrösse | 29" | 29" | 29" | 29" | 29" |
| St Seat Tubes Mm | 370 | 430 | 470 | 510 | 560 |
| Tt Top Tubes Mm | 570 | 590 | 610 | 630 | 650 |
| Cs Chain Stays Mm | 440 | 440 | 440 | 440 | 440 |
| Hta Head Tube Angles Deg | 70 | 70 | 70 | 70 | 70 |
| Sta Seat Tube Angle Deg | 73 | 73 | 73 | 73 | 73 |
| Bd Bottom Bracket Drops Mm | 60 | 60 | 60 | 60 | 60 |
| Ht Head Tube Lengths Mm | 100 | 115 | 130 | 145 | 160 |
| Fl Fork Lengths Mm | 506 | 506 | 506 | 506 | 506 |
| R Reachs Mm | 382 | 398 | 414 | 429 | 445 |
| S Stacks Mm | 614 | 628 | 642 | 656 | 670 |
| Wb Wheel Base Mm | 1069 | 1090 | 1110 | 1131 | 1152 |
| Sh Stand Over Height Mm | 679 | 727 | 763 | 800 | 843 |
