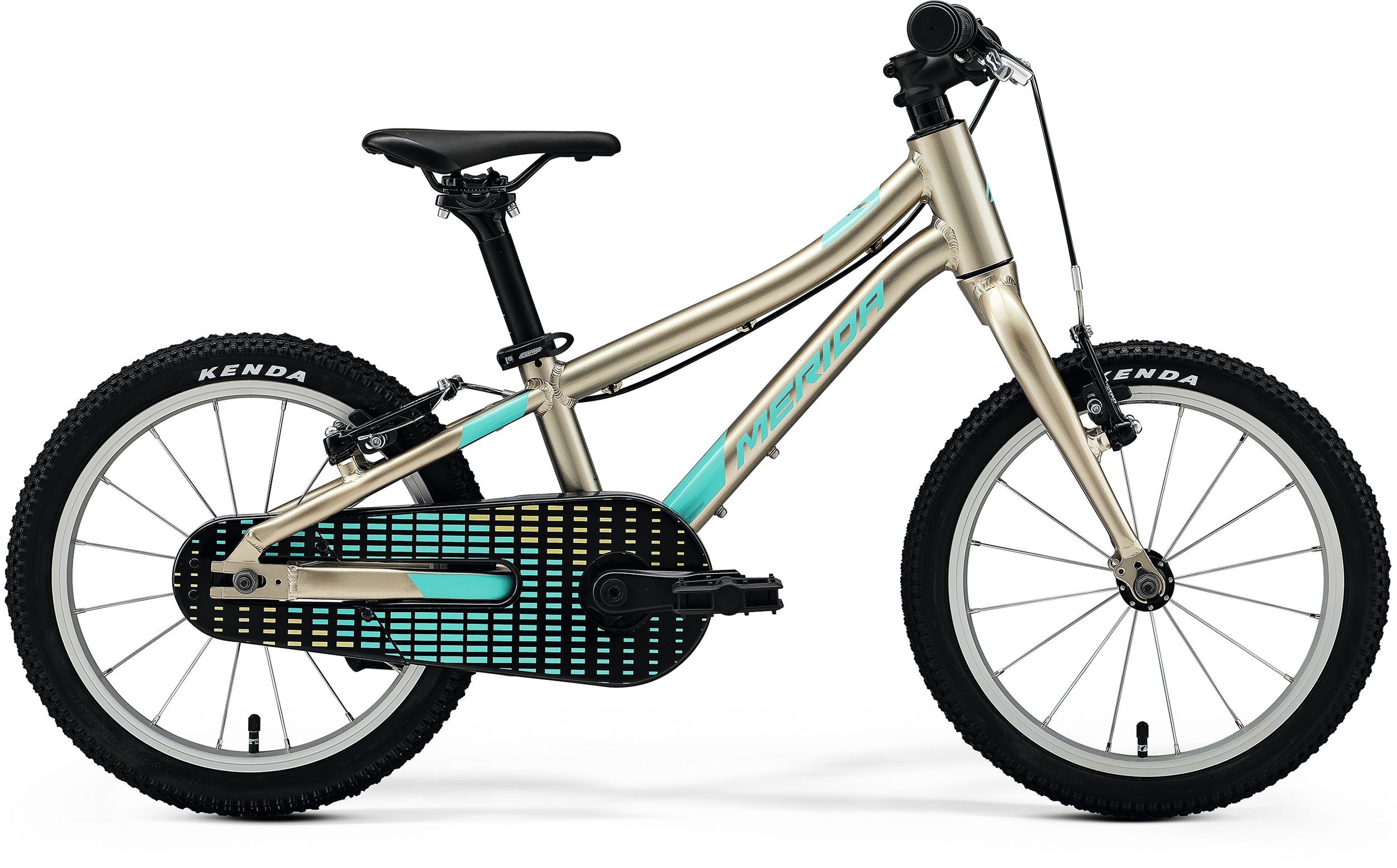

MATTS J. 16



Even the newest cyclists deserve a quality riding experience, with a bike that’s built from high-quality parts and based entirely around their needs.
Händler finden

With an updated frame that’s lighter than before, the MATTS J16 offers even the youngest riders seriously sorted handling and equipment designed around their needs. That means brakes with special levers designed for little hands to effectively control, plus easy to pedal gearing contained in a closed chain guard that keep hands safe and clothes clean. Lightweight wheels with fast rolling but grippy tyres ensure that that youth is no barrier to shredding. Suits heights from approx. 92-109 cm tall.

Our MATTS J range is designed for the heroes of tomorrow, which is why we put all the know-how gained from years of making adult bikes into lightweight, high-quality machines for kids to enjoy. High-quality components chosen specifically for the needs of children are married to our aluminium frames that are created with the same painstaking attention to detail and quality of finish as the rest of our bikes. That’s the only way to guarantee that young riders get the same enjoyment of cycling, safe in the knowledge that their bike will never let them down. Whatever your age, your level of ability or your size, we have the perfect first MERIDA ready for you. See you on the start line!

  • Lightweight aluminium frame
  • Closed chain guard keeps fingers safe and clothes clean
  • Easy to pedal gearing
  • Specially designed V-brake levers for small hands
  • Fast rolling but grippy tyres on 16” wheels
  • Kid specific finishing kit
  • material: aluminium
  • 16" wheelsize
  • 112x9/100x9 wheelsize
  • BMX bottom bracket standard
Rahmengrössen 8.5"
Farbe CREAM (TEAL)
  • 28 teeth
  • MAT Aluminium
  • 89 mm
Freilauf 16T, single.
Bremse vorne Tektro RX1F, 85mm, EN shoe 63mm, steel pipe.
Bremse hinten Tektro 837AL, 85mm, EN shoe 63mm, steel pipe.
Bremshebel VL219D alloy
Bremskabel 2P
  • material: aluminium
  • 500mm width
  • 19mm rise
Steuersatz FSA NO.10
  • material: aluminium
  • 31.8mm diameter
  • 7° stem angle
  • 50mm
Spacer Plastic 10mm*2
Griffe Kraton short, 102mm, w/plug.
  • material: aluminium
Speichen Steel UCP
Kette KMC S1 single
Pedale VP-225
  • 27.2mm diameter
  • 0mm setback
  • material: aluminium
Sattel MERIDA COMP JR
Sattelklemme MERIDA COMP QR
Gewicht (ca.) 6.7 kg
Bike Frame Geometry Image
Ramengröße 8.5"
Laufradgrösse 16"
St Seat Tubes Mm 210
Tt Top Tubes Mm 390
Cs Chain Stays Mm 293
Hta Head Tube Angles Deg 70
Sta Seat Tube Angle Deg 71
Bd Bottom Bracket Drops Mm 12
Ht Head Tube Lengths Mm 115
Fl Fork Lengths Mm 280
R Reachs Mm 262
S Stacks Mm 371
Wb Wheel Base Mm 723
Sh Stand Over Height Mm 388

Technologien

Back to overview

RACELITE 61 ALUMINIUM

Leichtes und hochwertiges Aluminium 6061 aus der Luftfahrt ist bei uns das Minimum. Mit zusätzlicher Wärmebehandlung und doppelt konifizierten Rohren können wir damit leichte, steife Rahmen auf der Höhe der Zeit produzieren.

Watch Video
Back to overview

F-MOUNT

 Mit „F-Mount“ ausgestattete Fahrräder verfügen über integrierte Befestigungs­teile für Schutzbleche, die die Montage schnell und einfach machen (einige Fahrräder benötigen modellspezifische  Schutzbleche).

Watch Video
Back to overview

K-MOUNT DROP-OUT

Integrierte Befestigungsbasis an der Kettenstrebe zur Aufnahme eines MERIDA-Seitenständers.

Watch Video
Back to overview

SLIDER DROPOUT

Die verstellbaren Ausfallenden bietet viel Platz für die horizontale Anpassungen der Kettenspannung, ohne einen Kettenspanner zu benötigen. Das großvolumige Design sorgt für optimale Rahmensteifigkeit.

Watch Video
