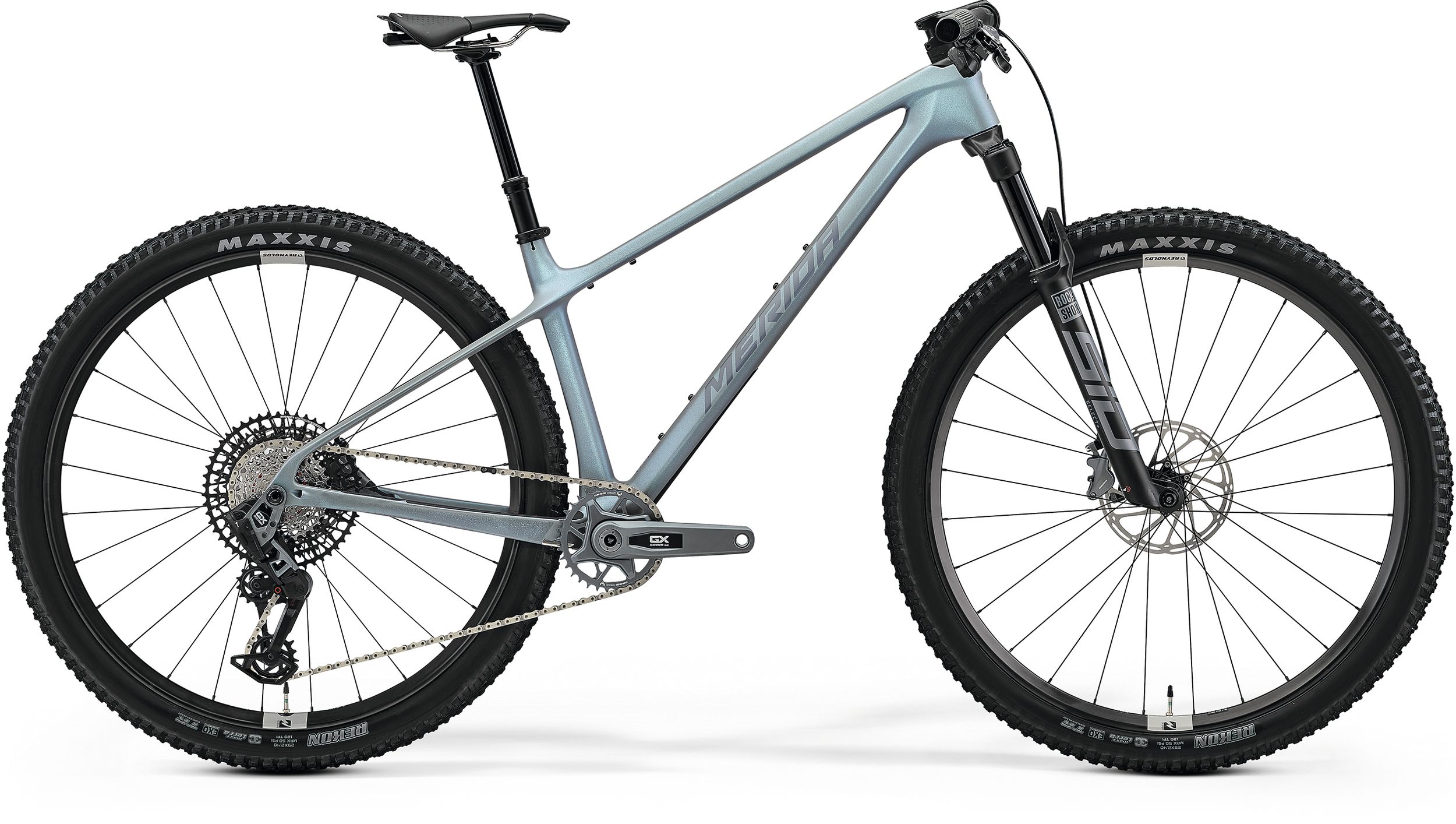

BIG.NINE TR 8000



Cross-country, downcountry - this bike is ready for it all. We've kept the speed of our latest carbon frame but boosted the travel to 120 mm, added trail-ready rubber and a dropper post for sublime control.
Händler finden

Cross-country speed, trail bike performance. The latest BIG.NINE TR 8000 boosts the descending capability of our latest progressive geometry carbon fibre frame by adding a longer travel 120 mm fork, more aggressive tyres and a dropper seatpost for improved control. A long travel dropper post and RockShox SID fork deliver control and precision while the wireless SRAM GX T-Type drivetrain and lightweight Reynold carbon wheelset offer blisteringly fast pace, uphill or down. Cross-country, downcountry - this bike is ready for it all.

When it comes to the demanding world of cross-country mountain biking, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes with the choice of carbon or two different aluminium frames to deliver a ride for all budgets. The latest CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today. They also have downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. For riders starting out, the updated BIG.NINE TFS offers more relaxed geometry and builds that deliver great value and versatility on or off the trail, with BIG.SEVEN TFS models using 27.5" wheels to deliver size for shorter riders. Our classic XC hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we have gained in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship that 'Made in Taiwan' stands for.

  • Lightweight CF3 carbon fibre frame with 2.4" tyre clearance
  • Progressive geometry with AGILOMETER sizing for confident handling
  • Fox 34 SC fork with 120 mm travel for improved descending ability
  • Wireless SRAM GX T-type 12-speed drivetrain
  • Lightweight carbon Reynolds wheelset and trail-ready tyres
  • Lightweight long travel MERIDA TEAM TR SL dropper seatpost with remote lever

Awards & Media

  • material: carbon
  • 29x2.4" max wheelsize
  • 148x12mm axle standard
  • BSA bottom bracket standard
Rahmengrössen M, L
Farbe SILK TRANSPARENT BLUE (SILVER)
  • Air
  • 120mm suspension travel
  • 2 position remote lockout
  • 29x2.4" max. wheelsize
  • 44mm fork offset
  • 34 teeth
  • 170 mm for all sizes
Bremskabel Seat post housing
  • material: carbon
  • 760mm width
  • 12.5mm rise
  • material: aluminium
  • 31.8mm diameter
  • -6° stem angle
  • incl. MERIDA SMART MOUNT
  • 60mm
Spacer 1*10mm, 1*5mm, 1*2.5mm
Griffe MERIDA TEAM CC
Schalthebel Vorne Sram dropper lever MMX
Schalthebel Hinten Sram AXS POD Controller
  • 29x2.4" WT
  • tubeless ready
  • 3C EXO
  • 29x2.4" WT
  • tubeless ready
  • 3C EXO
  • 110x15mm width front hub
  • 148x12mm width rear hub
  • 30mm inner width
  • Centerlock
  • Sram 12 Speed
  • material: carbon
  • Tubeless ready (tubeless tape and valves included)
  • Lifetime warranty
  • including removeable lever, 6/4mm allen key
  • 30.9mm diameter
  • 0mm setback
  • S/M: 150mm travel seatpost - L/XL/XXL: 170mm travel seatpost
  • V-mount adapter
  • incl. MERIDA minitool
Sattelklemme MERIDA EXPERT

weighed at frame size M

Bike Frame Geometry Image
Ramengröße M L
Laufradgrösse 29" 29"
St Seat Tubes Mm 410 440
Tt Top Tubes Mm 614 637
Cs Chain Stays Mm 433 436
Hta Head Tube Angles Deg 66.9 66.9
Sta Seat Tube Angle Deg 74.2 74.2
Bd Bottom Bracket Drops Mm 57 57
Ht Head Tube Lengths Mm 95 105
Fl Fork Lengths Mm 530 530
R Reachs Mm 440 460
S Stacks Mm 614 624
Wb Wheel Base Mm 1155 1182
Sh Stand Over Height Mm 711 717

Technologien

Back to overview

FLEX-STAY

Profil und Carbon-Layup von Ketten- und Sitzstreben wirken zusammen wie eine Blattfeder, nehmen Fahrbahnstöße auf und reduzieren Vibrationen – für einen spürbar höheren Komfort.

Watch Video
Back to overview

X-TAPER HEADTUBE

Die Verwendung eines Gabelschaftrohrs mit 1 1/8" Lager oben und 1 1/4" oder 1 1/2" Lager an der Unter­seite sorgt für höchste Steifigkeit und ein präzises, sicheres Lenkverhalten, das Vertrauen schafft.

Watch Video
Back to overview

INTERNAL CABLE ROUTING

Die Kabel werden im Rahmen geführt und treten durch unauffällige Anschläge ein und aus. Das Rad sieht schöner aus, während die Züge vor Feuchtigkeit und Schmutz geschützt sind.

Watch Video
Back to overview

DI2 READY

Räder und Rahmen mit dem Symbol „Di2 Ready“ sind für die Installation der Di2-Technologie vorbereitet. Der Akku wird in der Sattelstütze oder im Ga­belschaft untergebracht.

Watch Video
Back to overview

NANO MATRIX CARBON

Um bei Carbonrahmen maximale Festigkeit zu gewährleisten, werden die Fasern in ein Epoxidharz mit beigemengten Nano­partikeln eingebettet, was die Schlagfestigkeit um bis zu 40 % erhöht.

Watch Video
Back to overview

AWS

Bei der Fertigung einzelner Carbon-Elemente wird eine mit Luft gefüllte Blase verwendet, die sicherstellt, dass auf der Innenseite des Rohrs keine Falten entstehen, denn diese könnten das Gewicht erhöhen und Schwachstellen bilden. Das Ergebnis ist ein leichterer, steiferer und stabilerer Rahmen.

Watch Video
Back to overview

WIRE PORT

Selbstentwickelter Steuersatz mit speziellem Einlass für alle Steuerkabel. Neben der aufgeräumten Optik verhindert dieser gleichzeitig das Verkratzen des Rahmens durch freiliegende Zughüllen. Je nach Modell sind die Züge komplett innen verlegt (einschließlich Lenker & Vorbau) oder teilweise integriert, wenn die Züge unter dem Vorbau in den Rahmen geführt werden.

Watch Video
