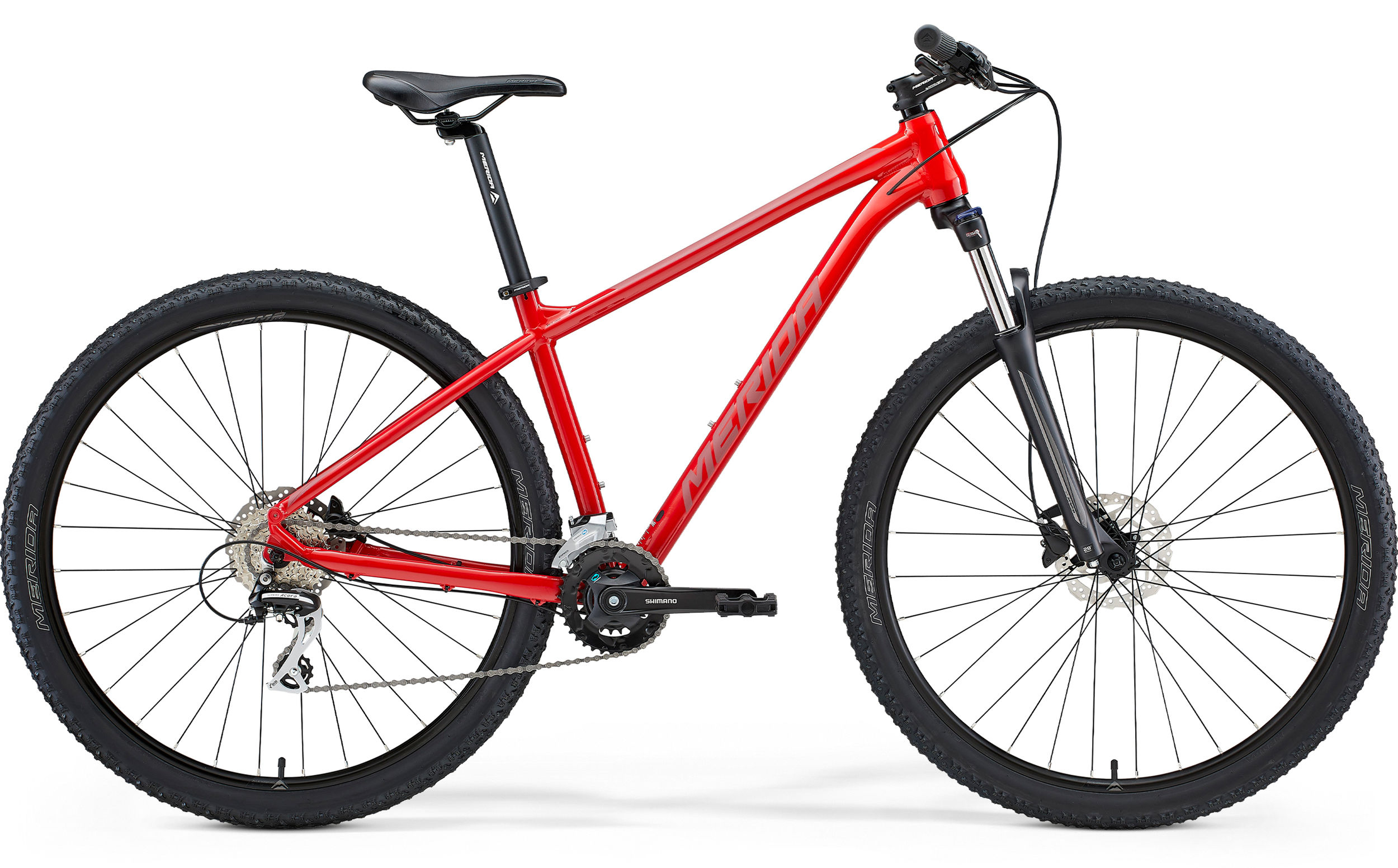

BIG.NINE 20

BIG.NINE 20



Contact Local Shop
  • material: aluminum
  • 29x2.25" max. wheelsize
  • 135x9mm axle standard
  • BSA bottom bracket standard
frame size S, M, L, XL, XXL
  • Coil
  • 100mm suspension travel
  • lockout
  • 29x2.25" max. wheelsize
  • 17mm inner width
  • material: aluminium
  • 100x9mm width front hub
  • 32 spoke holes
  • Centerlock
  • 135x9mm width rear hub
  • 32 spoke holes
  • Centerlock
  • 42-34-24 teeth
  • 170 mm-S, 175 mm-M/XXL
crank 170 mm-S, 175 mm-M/XXL
bottom bracket FSA TH-7420ST-W, Cartridge Bearing
  • 11-32 teeth
  • 8 speed
chain Sunrace M84
shifters Shimano ST-EF505 / microSHIFT TS39
front derailleur Shimano FD-TY700
rear derailleur Shimano RD-M360
  • BR-MT200 brake caliper / Power DS-100 HT
headset MERIDA M2345
  • material: aluminium
  • 31.8mm diameter
  • 6° stem angle
  • 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
stem size 70 mm-S, 80 mm-M, 90 mm-L, 100 mm-XL, 110 mm-XXL
  • material: aluminium
  • 690mm width
  • 15mm rise
grip MERIDA EC
  • material: aluminium
  • 30.9mm diameter
  • 15mm setback
seat clamp MERIDA COMP QR
saddle MERIDA Sport comfort
pedal VP VPE-891

weighed with 29" wheels and at frame size M, without pedals

Bike Frame Geometry Image
Frame Size S M L XL XXL
Tyre Sizes 29" 29" 29" 29" 29"
St Seat Tubes mm 370 430 470 510 560
Tt Top Tubes mm 570 590 610 630 650
Cs Chain Stays mm 440 440 440 440 440
HTA head tube angle [°] 70 70 70 70 70
STA seat tube angle [°] 73 73 73 73 73
Bd Bottom Bracket Drops mm 60 60 60 60 60
Ht Head Tube Lengths mm 100 115 130 145 160
Fl Fork Lengths mm 506 506 506 506 506
R Reach mm 382 398 414 429 445
S Stacks mm 614 628 642 656 670
Wb Wheel Base mm 1069 1090 1110 1131 1152
Sh Stand Over Height mm 679 727 763 800 843

To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.



HIGHLIGHTS

More relaxed geometry, through a shorter top tube and a higher head tube, resulting in a more upright riding position and enhanced trail visibility. The TFS frames feature internal cable routing, smooth welding, tapered head tube, inboard disc mounts, and mounts for mudguards, rear rack and kickstand.

Our classic hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we were able to gain in 48 years of bike production and manufacturing. The BIG.NINE and BIG.SEVEN range symbolises the symbiosis between modern frame technology, attention to detail and craftsmanship 'Made in Taiwan'.

Technology

Back to overview

X-TAPER HEADTUBE

Steering precision is vital to safe and confident handling, and the X-TAPER HEADTUBE allows us to significantly boost this precision. A larger headset diameter at the bottom paired with a smaller one at the top helps to deal with the strains modern riding and equipment can put on the headtube, all without adding unnecessary weight. It allows tapered forks to be fitted with ease and delivers precise and confidence-inspiring steering.

Watch Video
Back to overview

SMOOTH WELDING

This is a process we use to give a nice flat finish to our welds instead of the scaled, 'stack of coins' effect TIG welded joints often have. The welder uses the welding torch to go over the joint twice, helping to smooth out the filler material. It takes a lot of skill to do this, but it delivers strong and smart-looking frames that have the appearance of a carbon fibre frame at first look.

Watch Video
Back to overview

INTERNAL CABLE ROUTING

On the majority of our frames, we run the gear and brake cables and hoses through the frame. The cables enter and exit the frame through smooth sockets, or we use one of our other systems like SMART ENTRY or WIRE PORT to be routed through. Running the cables inside the frame protects them from the elements, gives a clean and neat look and can offer aerodynamic advantages.

Watch Video
Back to overview

DOWN TUBE EXIT

DOWN TUBE EXIT is a feature seen on some of our frames with internally routed cables. By slightly overlapping the downtube where it connects to the bottom bracket, it leaves a small space that allows cables to exit easily. This means they are easily accessible for routine maintenance or replacement, but it prevents excessive movement and noise that can cause wear and distraction.

Watch Video
Back to overview

RACELITE 61 ALUMINIUM

We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

Watch Video
Back to overview

TFS - TECHNO FORMING SYSTEM

Manipulating the tube shape and thickness greatly impacts the appearance, weight and functionality of our aluminium frames. One technology that allows us to do that is TECHNO FORMING, where plain aluminium tubes get mechanically formed by using an external form and an internal metal core. The result, beautifully shaped tubes with varying wall thickness, ready to be used to create our technoformed aluminium frames.

Watch Video
Back to overview

F-MOUNT

Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

Watch Video
Back to overview

K-MOUNT

Integrated mount on the chainstay to fit a Merida kickstand (or any commercial kickstand).

Watch Video
Back to overview

C-MOUNT

Similar to our F-MOUNT, where various fixing points for mudguards are part of the frame offering, the C-MOUNT equipped bikes have the fixing points for a rear rack already integrated, making fitting fast, simple and reliable. The C-MOUNTS are an additional feature that improves the day-to-day versatility by adding loading capacity to your bike, ideal for commuting and shopping trips. Please note that some bikes require model-specific rear racks.

Watch Video
