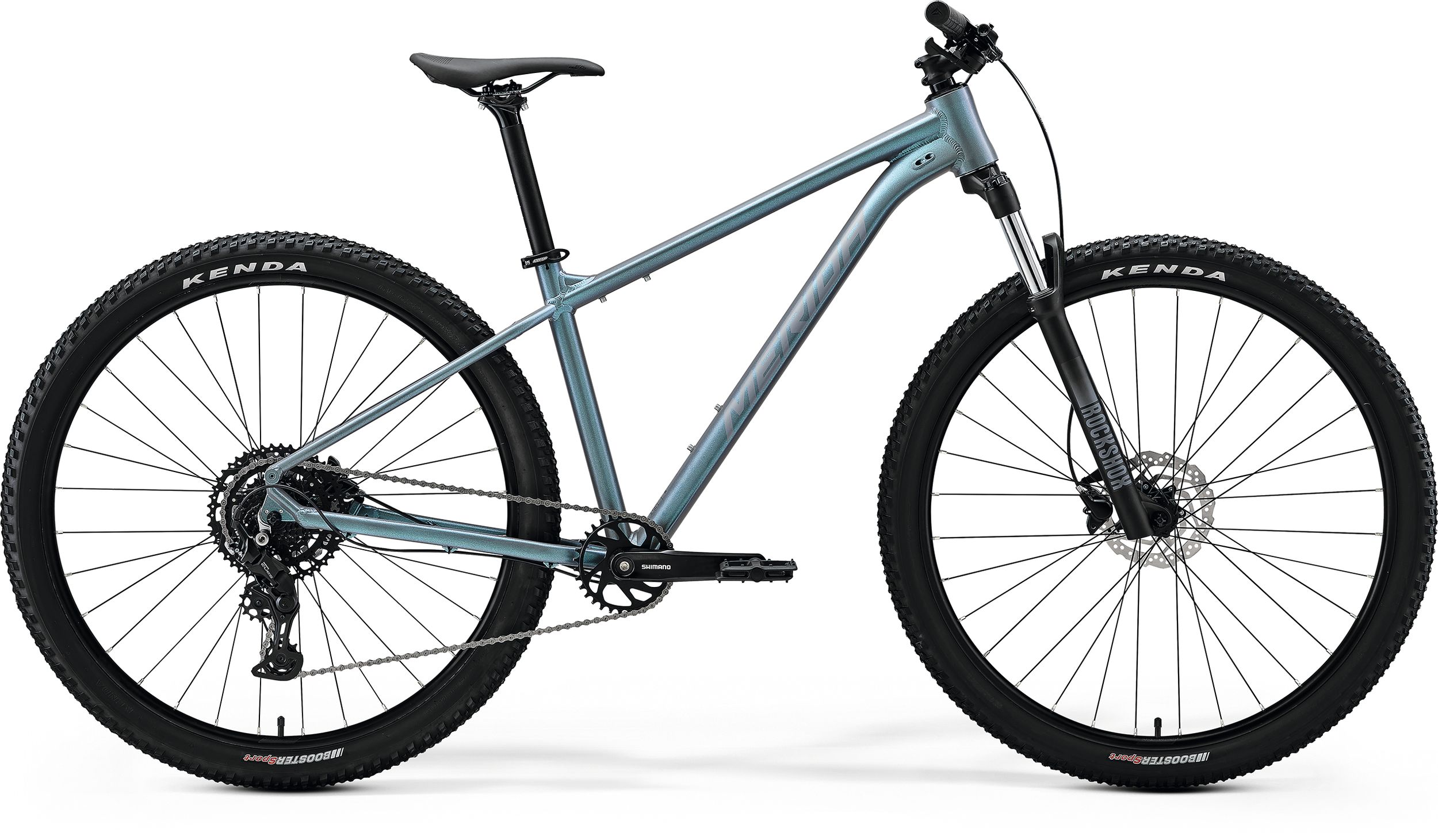

BIG.NINE 80



A tough but lightweight aluminium frame, smooth rolling 29" wheels and geometry that'll help you down your first mountain bike trails as well as anywhere else you fancy. Add in a 100 mm travel RockShox fork plus smooth Shimano 1x9-speed drivetrain and you're set.
Find Dealer

Your mountain bike journey starts here. The BIG.NINE 80 offers a lightweight but tough aluminium frame, smooth rolling 29" wheels and a bump-taming 100 mm RockShox fork. We've adjusted the geometry so it's even more capable off-road, without losing the versatility and fun handling our mountain bike hardtails are known for. Combine that with hydraulic disc brakes and a smooth 1x9-speed drivetrain from Shimano, and you've got a high-quality, long-lasting package for the trail ahead.

When it comes to the demanding world of cross-country mountain biking, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes with the choice of carbon or two different aluminium frames to deliver a ride for all budgets. The latest CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today. They also have downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. For riders starting out, the updated BIG.NINE TFS offers more relaxed geometry and builds that deliver great value and versatility on or off the trail, with BIG.SEVEN TFS models using 27.5" wheels to deliver a fit for for shorter riders. Our classic XC hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we have gained in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship that 'Made in Taiwan' stands for.

  • Updated TFS aluminium frame with clearance for 2.4" tyres
  • Updated geometry for confident off-road handling
  • RockShox suspension fork with 100 mm travel
  • Shimano hydraulic disc brakes and CUES 1x9-speed drivetrain
  • MERIDA COMP CC 29" wheelset and 2.4" tyres
  • MERIDA finishing kit including size-tuned handlebars
  • material: aluminum
  • 29 wheelsize
  • 135x9mm axle standard
  • BSA bottom bracket standard
frame size S, M, L, XL, XXL
color SILK TRANSPARENT BLUE (SILVER)
  • Coil
  • 100mm suspension travel Lockout
  • 46mm fork offset
  • 29x2.4" max. wheelsize
  • hydraulic brake
headset FSA NO.55R/57SC/57B
  • material: aluminium
  • 15mm rise
  • S: 720mm width
  • M/L/: 740mm width
  • XL/XXL: 760mm width
  • material: aluminium
  • 31.8mm diameter
  • 7° stem angle
  • S: 50mm, M/L:60 mm, XL/XXL: 70 mm
grip MERIDA COMP TR
shifters Shimano Cues U4000
  • material: aluminium
  • 30.9mm diameter
  • 0mm setback
seat clamp MERIDA COMP QR
saddle MERIDA COMP SL
pedal VP VPE 536
chain KMC xGlide
  • 32 teeth
  • MAT Aluminium
  • S: 165mm, M/L/XL/XXL: 170mm
bottom bracket Shimano UN101 LL123
  • 100x9mm width front hub
  • 32 spoke holes
  • Centerlock
  • 135x9mm width rear hub
  • 32 spoke holes
  • Centerlock
  • 25mm inner width
  • material: aluminium
  • tubeless ready
spokes Black steel
approx. weight 13.7 kg
Bike Frame Geometry Image
Frame Size S M L XL XXL
Tyre Sizes 29" 29" 29" 29" 29"
ST seat tube [mm] 370 420 460 510 560
TT top tube [mm] 559 581 603 630 657
CS chain stay length [mm] 460 460 460 460 460
HTA head tube angle [°] 67 67 67 67 67
STA seat tube angle [°] 74 74 74 74 74
BD bottom bracket drop [mm] 53 53 53 53 53
HT head tube [mm] 100 105 115 130 140
FL fork length [mm] 535 535 535 535 535
FO fork offset [mm] 46 46 46 46 46
R reach [mm] 390 410 430 450 470
S stack [mm] 619 624 633 643 652
WB wheel base [mm] 1136 1158 1182 1206 1229
SH stand over height [mm] 694 744 773 813 852

To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.
