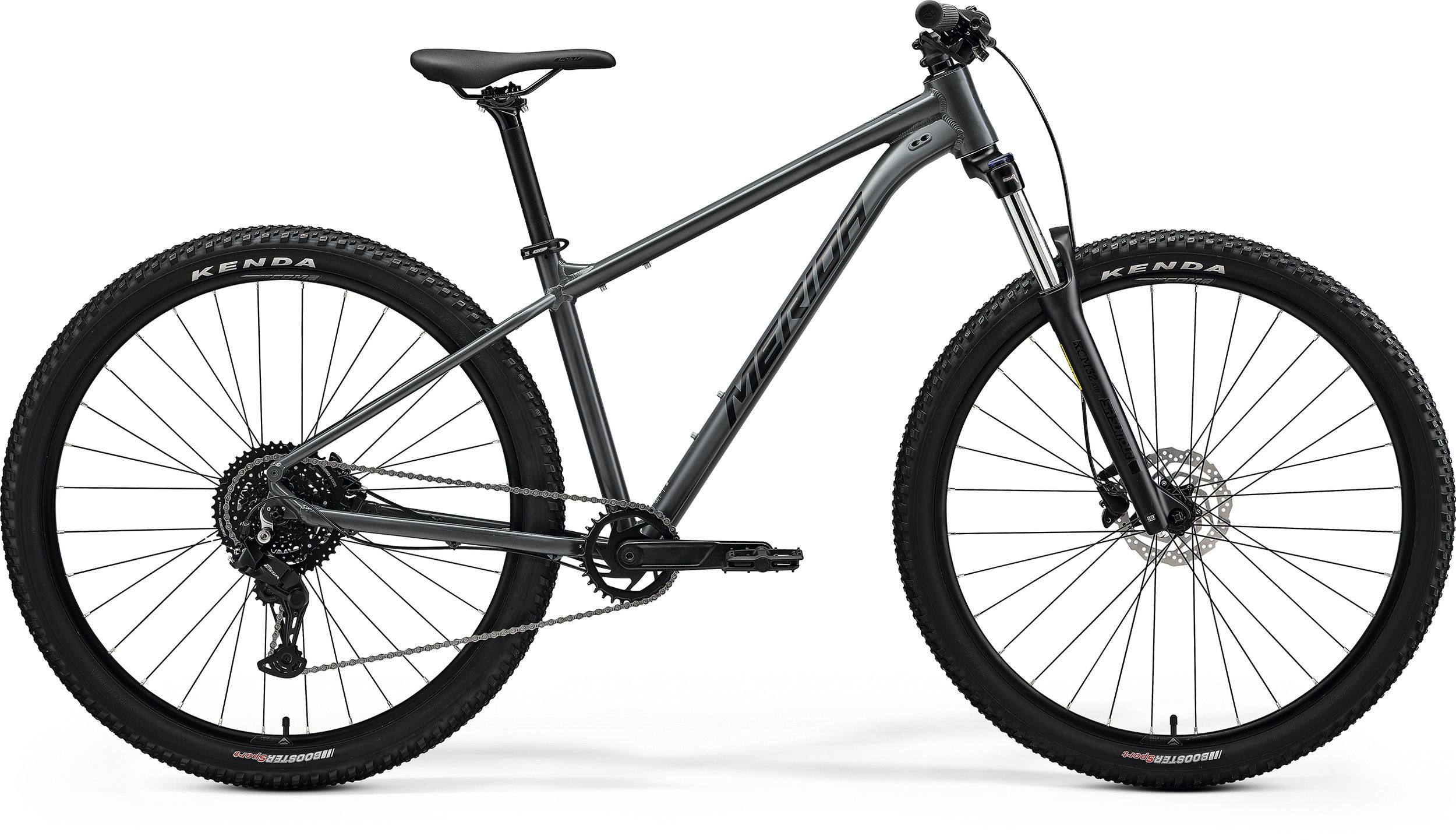

BIG.NINE 20



Ready to ride with our latest aluminium frame and trail-capable geometry. Now with a 120 mm travel fork, an easy-to-use single ring drivetrain and hydraulic disc brakes, this is the way to mountain bike fun.
Find Dealer

With hydraulic disc brakes, an easy-to-use single ring drivetrain, our latest TFS aluminium frame and a trail-ready 120 mm travel fork, the BIG.NINE 20 is ready to ride. Whether you need a versatile bike for weekend trail fun or a rugged way to get about, the smooth-rolling 29" wheels and updated, confidence-inspiring geometry will have you covered.

When it comes to the demanding world of cross-country mountain biking, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes with the choice of carbon or two different aluminium frames to deliver a ride for all budgets. The latest CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today. They also have downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. For riders starting out, the updated BIG.NINE TFS offers more relaxed geometry and builds that deliver great value and versatility on or off the trail, with BIG.SEVEN TFS models using 27.5" wheels to deliver a fit for for shorter riders. Our classic XC hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we have gained in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship that 'Made in Taiwan' stands for.

  • Updated TFS aluminium frame with clearance for 2.4" tyres
  • Updated geometry for confident off-road handling
  • Suntour suspension fork with 120 mm travel
  • Shimano hydraulic disc brakes and 1x8-speed drivetrain
  • MERIDA COMP CC 29" wheelset and Kenda tyres
  • MERIDA finishing kit including size-tuned handlebars
  • material: aluminum
  • 29 wheelsize
  • 135x9mm axle standard
  • BSA bottom bracket standard
frame size S, M, L, XL, XXL
color SILK DARK GREY (BLACK)
  • Coil
  • 120mm suspension travel
  • lockout
  • 29x2,4" max. wheelsize
  • hydraulic brake
headset FSA NO.55R/57SC/57B
  • material: aluminium
  • 15mm rise
  • S: 720mm width
  • M/L/: 740mm width
  • XL/XXL: 760mm width
  • material: aluminium
  • 31.8mm diameter
  • 7° stem angle
  • S: 50mm, M/L:60 mm, XL/XXL: 70 mm
grip MERIDA EC
shifters Shimano Essa SL-315-8R
  • material: aluminium
  • 30.9mm diameter
  • 0mm setback
seat clamp MERIDA COMP QR
saddle MERIDA Sport
pedal VP VPE 536
chain KMC Z8.3
  • 32 teeth
  • MAT Aluminium
  • S: 165mm, M/L/XL/XXL: 170mm
  • 11-45 teeth
  • 8 speed
bottom bracket Shimano UN101 LL123
  • 100x9mm width front hub
  • 32 spoke holes
  • Centerlock
  • 135x9mm width rear hub
  • 32 spoke holes
  • Centerlock
  • 20mm inner width
  • material: aluminium
spokes Black steel
approx. weight 14.4 kg
Bike Frame Geometry Image
Frame Size S M L XL XXL
Tyre Sizes 29" 29" 29" 29" 29"
ST seat tube [mm] 370 420 460 510 560
TT top tube [mm] 559 581 603 630 657
CS chain stay length [mm] 460 460 460 460 460
HTA head tube angle [°] 67 67 67 67 67
STA seat tube angle [°] 74 74 74 74 74
BD bottom bracket drop [mm] 53 53 53 53 53
HT head tube [mm] 100 105 115 130 140
FL fork length [mm] 535 535 535 535 535
FO fork offset [mm] 46 46 46 46 46
R reach [mm] 390 410 430 450 470
S stack [mm] 619 624 633 643 652
WB wheel base [mm] 1136 1158 1182 1206 1229
SH stand over height [mm] 694 744 773 813 852

To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.
