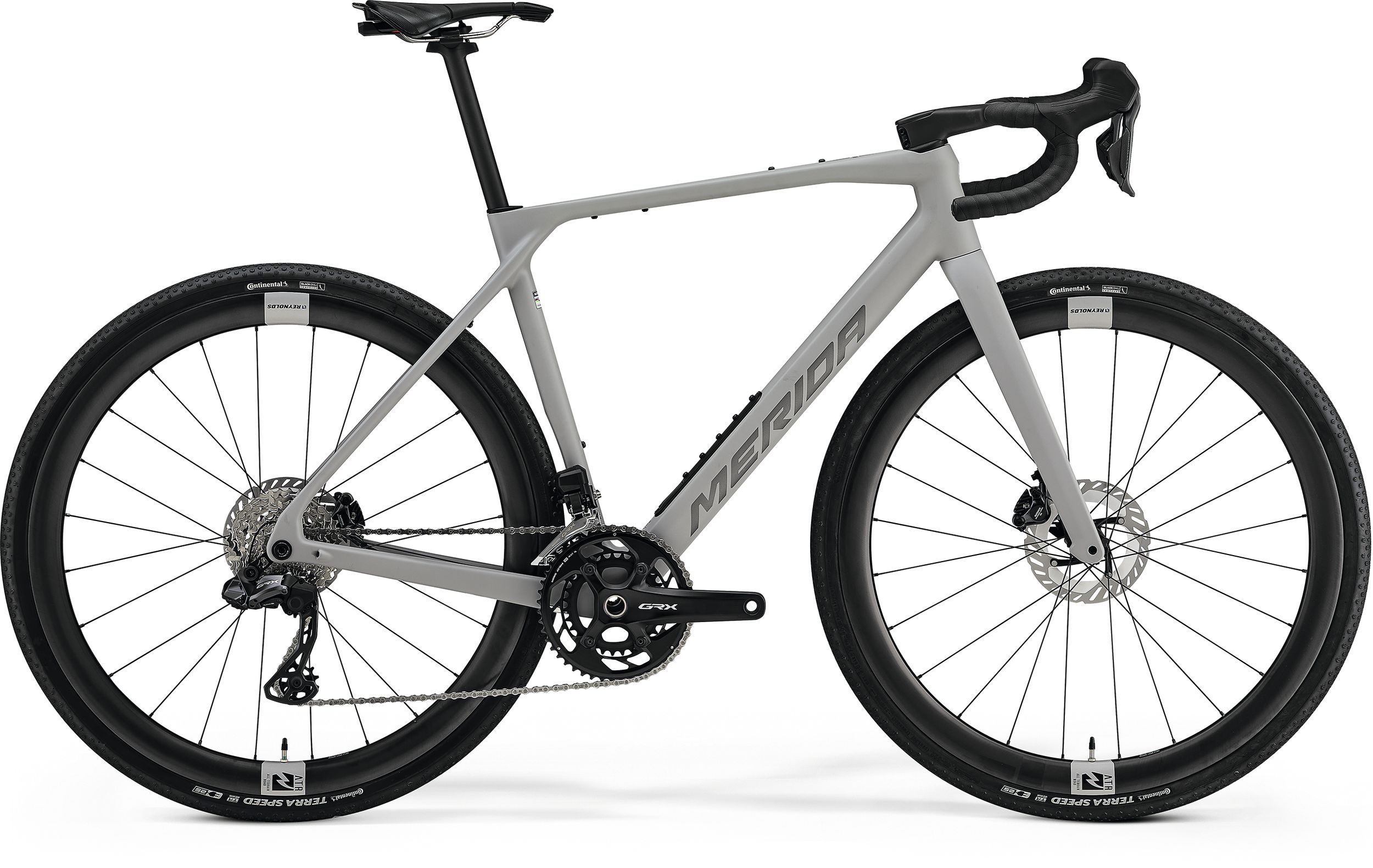

Whether it's a gravel race, a multi-surface outing or some chain gang action, the 2x12-speed Mission 7000 feels at home in all of these situations. With our new CF4 carbon MISSION frame featuring a geometry that is more race-focused than that of our SILEX bike, which is more geared towards bikepacking and adventure, the MISSION 7000 perfectly combines a more aggressive riding position with the surefooted handling you expect from a gravel race bike. Shimano's proven GRX Di2 speed groupset provides pinpoint-accurate shifting, even on the roughest gravel tracks, and Reynolds' ATR carbon wheels keep things rolling whatever the surface.
Our new MISSION truly embodies its ‘fast on any surface’ intentions. It is a gravel race bike that combines key geometry and frame elements from the SCULTURA ENDURANCE and the SILEX, sprinkles them with a heavy dose of road racing DNA to deliver a fast and responsive ride on pretty much any surface.
Whether you're tackling fast-paced gravel races to tarmac-based chain gang outings, the MISSION delivers. With up to 40 mm tyre clearance, there is scope for wider gravel racing tyres or large volume road tyres, and its low weight of around 7.8 kg of the 10K model makes it fly up the hills, keeps it super responsive and catapults it out of corners. The MISSION’s built-in storage compartment improves the accessibility and organisation of crucial mid-race nutrition and spares, further enhancing the efficiency when every second counts.
Finally, the ability to seamlessly fit 1x or 2x drivetrains gives riders more flexibility to find their preferred setup for whatever riding or racing style they want to focus on. Welcome to your MISSION - Fast on any surface.
- Lightweight CF4 carbon frame with gravel race-orientated geometry
- Shimano GRX Di2 2x12-speed electronic drivetrain
- Lightweight Reynolds ATR TSS CL carbon wheelset
- Down tube storage trunk with Fidlock cover for race nutrition and spares
- Powerful but controllable Shimano GRX hydraulic disc brakes
- Continental Terra Speed ProTection 40 mm tyres
- material: carbon
- 700x40C max.WHS
- 100x12/142x12mm axle standard
- BSA bottom bracket standard
- Tapered
- material: carbon
- 700x45C max. wheelsize
- 160mm
- VP-MRBHB (SE-301 neck)
- Hydraulic disc
- 27.2mm diameter
- 0mm setback
- Carbon
- V-mount adapter
- incl. MERIDA minitool
- 48-31 teeth
- 170mm XXS/XS/S/M, 172,5mm L/XL
- 11-36 teeth
- 12 speed
- 100x12mm width front hub
- 142x12mm width rear hub
- 25mm inner width
- 42mm height
- Centerlock
- material: carbon
- 40-622
- TLR
- foldable skin SL
- 40-622
- TLR
- foldable skin SL
- L=165,5mm M12x1,0 *including removable lever
- 6/4mm allen key
| Frame Size | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 445 | 470 | 490 | 510 | 530 | 560 |
| TT top tube [mm] | 522 | 532 | 543 | 560 | 571 | 586 |
| CS chain stay length [mm] | 419 | 419 | 419 | 419 | 419 | 419 |
| HTA head tube angle [°] | 70 | 70 | 71 | 72 | 72 | 72.5 |
| STA seat tube angle [°] | 74 | 74 | 74 | 73.5 | 73.5 | 73.5 |
| BD bottom bracket drop [mm] | 72 | 72 | 72 | 72 | 72 | 72 |
| HT head tube [mm] | 103 | 117 | 126 | 137 | 153 | 178 |
| FL fork length [mm] | 400 | 400 | 400 | 400 | 400 | 400 |
| FO fork offset [mm] | 45 | 45 | 45 | 45 | 45 | 45 |
| R reach [mm] | 370 | 377 | 384 | 391 | 398 | 405 |
| S stack [mm] | 529 | 542 | 555 | 569 | 584 | 610 |
| WB wheel base [mm] | 997 | 1009 | 1011 | 1013 | 1024 | 1035 |
| SH stand over height [mm] | 741 | 764 | 781 | 798 | 816 | 844 |
| No. | Item-No. | Name | Info | Pieces | Torque NM |
| 1 | A2298000210 | SCREW | M5x0.8 L15mm Aluminium | 11 | 4~5 |
| 2 | A2143000117 | BLIND PLUG | for M5 threaded hole | 11 | |
| 3 | A2347000026 | COVER | for seatpost clamp | 1 | |
| 4 | A2247000120 | CLAMP | for seatpost | 1 | |
| 5 | A2030000038 | MOUNT | Frame of G.U.T. | 1 | |
| 6 | A2298000160 | SCREW | M4x0.7 L10mm | 6 | 3~4 |
| 7 | A2263000078 | COVER | Cover of G.U.T. (Bag for Inside: A2276000092) | 1 | |
| 8 | A2263000070 | COVER MOUNT | Fidlock Pinlock vertical Female | 1 | |
| 9 | A2263000071 | COVER MOUNT | Fidlock Pinlock vertical Male | 1 | |
| 10 | A2030000037 | MOUNT | SSB | 1 | |
| 11 | A2298000360 | SCREW | M4x0.7 L6mm | 2 | 3~4 |
| 12 | A2298000154 | SCREW | M5x0.8 L12mm | 3 | 4~5 |
| 13 | A2298000361 | SCREW | M4x0.7 L12mm | 4 | 3~4 |
| 14 | A2164000060 | DISC COOLER | front; for FM160/FM180 | 1 | |
| 15 | A2294000233 | MOUNT | adapter for mounting a front derailleur | 1 | |
| 16 | A2136000152 | MOUNT | for mounting a front derailleur | 1 | |
| 17 | A2298000198 | SCREW | M5x0.8 L16mm | 2 | 4~5 |
| 18 | A2143000163 | CABLE PLUG | for Di2/ speed sensor | 1 | |
| 19 | A2143000130 | BLIND PLUG | for wireless RD/ FD | 1 | |
| 20 | A2322000058 | PROTECTOR | 1 | ||
| 21 | A2311000149 | RD-HANGER | UDH | 1 | |
| 22 | A2311000161 | RD-HANGER | UDH; SHIMANO direct mount | 1 | |
| 23 | A2143000131 | BLIND PLUG | for wireless RD | 1 | |
| 24 | A2143000160 | CABLE PLUG | for speed sensor/Di2 cable | 1 | |
| 25 | A2143000082 | CABLE GUIDE | for mechanical RD cable | 1 | |
| 26 | A2164000061 | DISC COOLER | rear; for FM140/FM160 | 1 | |
| 27 | A2002000200 | THRU AXLE | EXPERT SL; L=165.5mm M12x1.0 TL=14.5mm | 1 | |
| 28 | A2029000037 | TUBE | foam; ID6mm L450mm | 1 | |
| 29 | A2002000120 | THRU AXLE | EXPERT TR; L=120mm M12x1.5 TL=12mm | 1 | |
| 30 | A2029000055 | TUBE | woven; L40mm; protecting Headtube steerer | 1 | |
| 30 | A2029000056 | TUBE | woven; L60mm; protecting Headtube steerer | 1 | |
| 30 | A2029000080 | TUBE | woven; L50mm; protecting Headtube steerer | 1 | |
| 30 | A2029000088 | TUBE | woven; L80mm, protecting Headtube steerer | 1 | |
| 31 | A2192000013 | COVER | special for MY22 Scultura Endurance CF II onwards | 1 | |
| 32 | A2208000071 | COMPRESSION RING | 1 | ||
| 33 | A2221000047 | BEARING | MH-P16 | 2 | |
| 34 | A2191000242 | HEAD SET | Acros AIX-631 320.52.631 (without fork cone, for carbon fork) | 1 | |
| 35 | A2143000193 | BLIND PLUG | for FD Mount | 1 | |
| 36 | A2292000028 | WASHER | OD9mm ID5.2mm H3mm |
