    • material: aluminium
    • 700C wheelsize
    • 135x9mm axle standard
    • BSA bottom bracket standard
    frame size XS, S, M, L
    • Coil
    • 63mm suspension travel
    brakes Jak J8 disc
    brake lever Shimano ST-EF500
    headset FSA TH888
    • material: aluminium
    • 660mm width
    • 25mm rise
    • material: aluminium
    • 25.4mm diameter
    • adjustable
    • 100 mm all sizes
    grip MERIDA EC
    derailleur (f) Shimano FD-TY710
    derailleur (r) Shimano RD-M310
    shifters Shimano ST-EF500
    • 27.2mm diameter
    • 13mm setback
    • 40mm seatpost suspension travel
    seat clamp MERIDA COMP QR
    saddle MERIDA Cross Sport
    pedal VP VPE-891
    chain KMC M700
    chainguard attached
    • 48-38-28 teeth
    • 170 mm-XXS/SM, 175 mm-ML/XXL
    crank 170 mm-XXS/SM, 175 mm-ML/XXL
    • 11-32 teeth
    • 8 speed
    bottom bracket FSA TH-7420ST-W, Cartridge Bearing
    • 100x9mm width front hub
    • 32 spoke holes
    • 6 bolt
    • 135x9mm width rear hub
    • 32 spoke holes
    • 6 bolt
    • 17mm inner width
    • material: aluminium
    spokes Steel UCP

    weighed at frame size S without pedals

    Bike Frame Geometry Image
    Frame Size XS S M L
    Tyre Sizes 28" 28" 28" 28"
    ST seat tube [mm] 390 430 470 510
    TT top tube [mm] 565 575 585 600
    CS chain stay length [mm] 450 450 450 450
    HTA head tube angle [°] 71 71 71 71.5
    STA seat tube angle [°] 74 73.5 73.5 73
    BD bottom bracket drop [mm] 70 70 70 70
    HT head tube [mm] 135 140 140 170
    FL fork length [mm] 450 450 450 450
    R reach [mm] 391 394 404 404
    S stack [mm] 607 612 612 642
    WB wheel base [mm] 1073 1078 1088 1092
    SH stand over height [mm] 592 590 592 590

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.

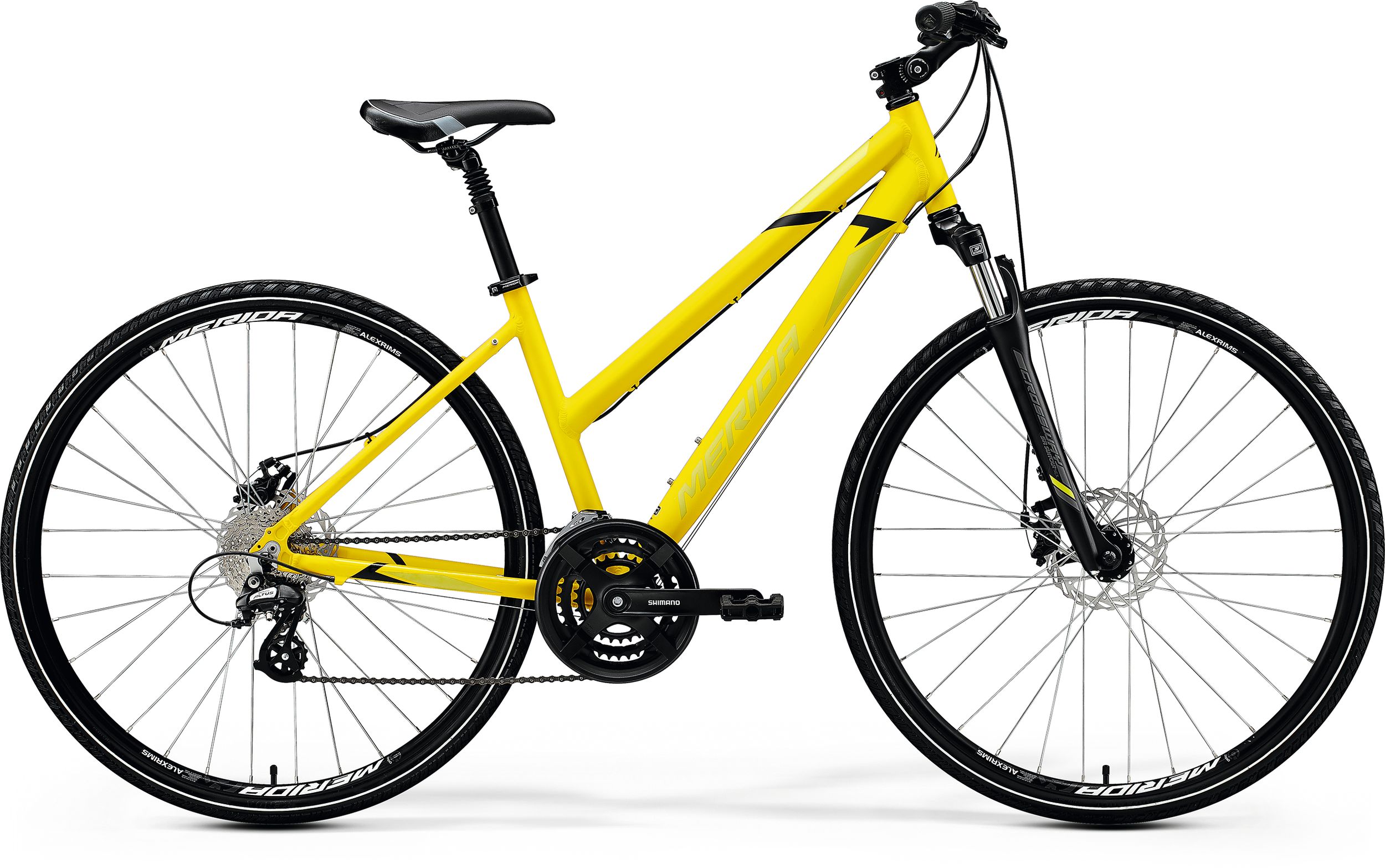

    Most CROSSWAY models are also available in a low step through frame, providing an opportunity to find the perfect fit without compromising on equipment and functionality.

    6061 double butted and technoformed aluminium frame. Equipped with mounts for rack, mudguards and kickstand.

    All our CROSSWAY models are equipped with suspension forks to iron out any surface bumps. Adjustable ahead stems and suspension seat posts are also fitted on most SPEED models, providing extra comfort and an adjustable riding position. The sportier TFS models feature a regular seat post and stem to reduce weight.

    All CROSSWAY 100 up to XT-EDITION models feature tyres with reflective strips on their sidewalls, improving visibility on the road.

    Mudguards, racks and kickstands can be added to all CROSSWAY models, making them usable in many circumstances.


    Back to overview


    We use a minimum of 6061 grade aluminium on all our bikes. It’s particularly well suited to being shaped with our hydroforming and technoforming processes, which allow us to vary the wall thickness to create double-butted tubing and complex frame shapes. It’s also an alloy that welds easily, and once it has been carefully heat treated to maximise strength, it means we can create strong and lightweight bicycle frames for you to enjoy.

    Watch Video
    Back to overview


    Manipulating the tube shape and thickness greatly impacts the appearance, weight and functionality of our aluminium frames. One technology that allows us to do that is TECHNO FORMING, where plain aluminium tubes get mechanically formed by using an external form and an internal metal core. The result, beautifully shaped tubes with varying wall thickness, ready to be used to create our technoformed aluminium frames.

    Watch Video
    Back to overview


    Being able to turn your bike into an all-weather commuter that has mudguards and other fittings can be a real plus, in particular when riding on wet and perhaps muddy roads and tracks on a regular basis. To make fitting easy, some of our bikes are F-MOUNT equipped. These integrated fittings mounts make adding mudguards fast and simple. Please note that some bikes require model-specific mudguards.

    Watch Video
    Back to overview


    When using your bike in an urban environment, where you might not always have the option to use a specific bike stand, a kickstand is an ideal solution to park your bike safely. Some of our bikes come with a neatly integrated K-MOUNT, which makes fitting a MERIDA kickstand (or any commercial kickstand) easy. And if you don’t want to have a kickstand and prefer the clean appearance of your frame, the K-MOUNT is neatly tucked away underneath your chainstay, difficult to spot if you don’t know it is there.

    Watch Video
    Back to overview


    Similar to our F-MOUNT, where various fixing points for mudguards are part of the frame offering, the C-MOUNT equipped bikes have the fixing points for a rear rack already integrated, making fitting fast, simple and reliable. The C-MOUNTS are an additional feature that improves the day-to-day versatility by adding loading capacity to your bike, ideal for commuting and shopping trips. Please note that some bikes require model-specific rear racks.
