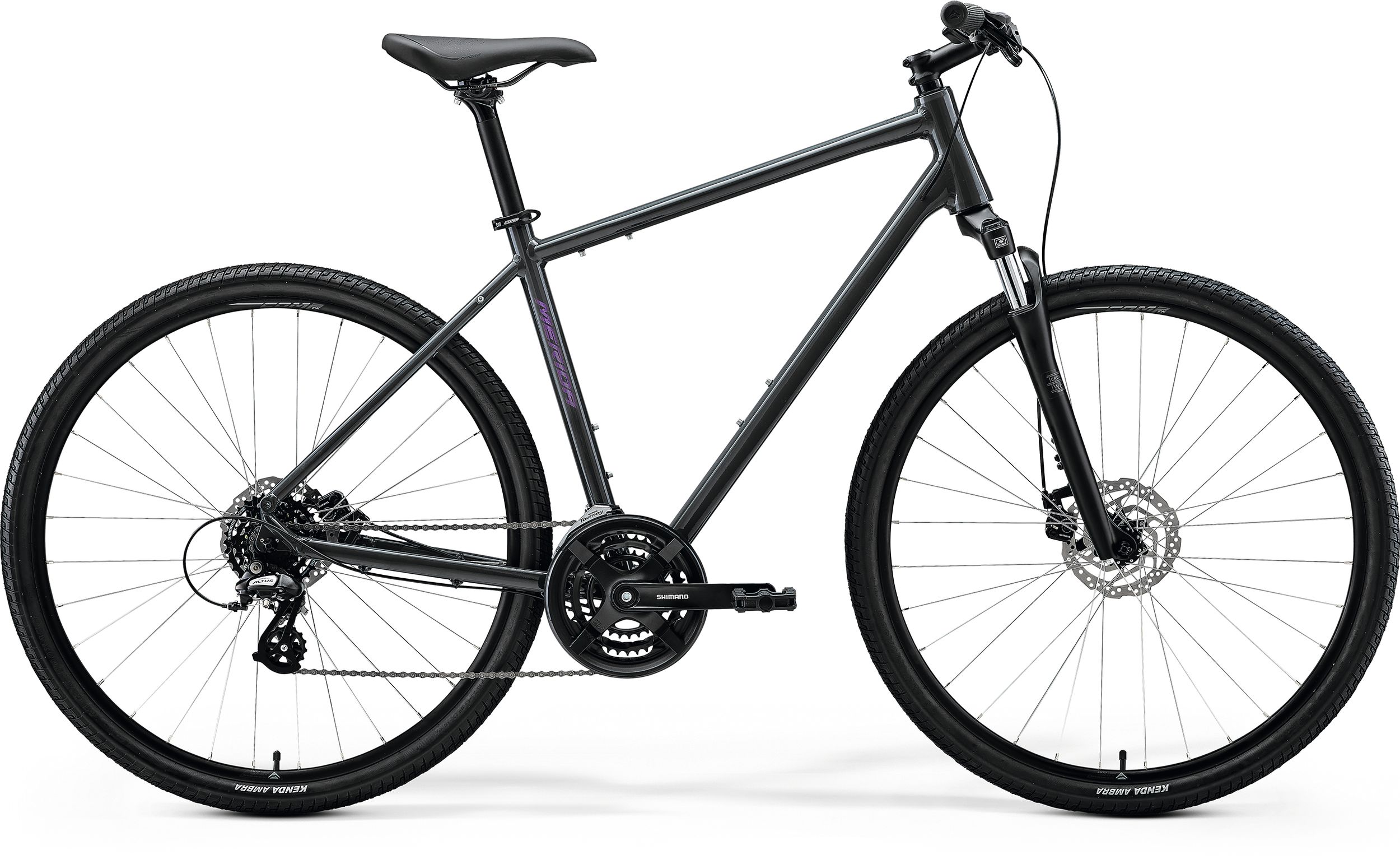

You don't always have to spend big-ticket money to get a reliable lightweight aluminium hybrid that delivers when it comes to day-to-day usability, built-in weekend fun and all-round riding comfort. Our CROSSWAY 10 comes with easy to modulate and low maintenance disc brakes, a broad 3x7 speed gear range that gets you to your destination quickly as well as climbs steeper slopes with ease. A suspension fork provide extra comfort and riding safety.
The CROSSWAY family is our versatile and proven way of getting around. Suitable for fitness training, commuting and leisurely rides through forests and on trails, they are designed to provide a comfortable place to take in the surroundings thanks to an upright riding position. Comfort-focused equipment such as suspension fork and adjustable stems on selected models means they offer the perfect blend of comfort, enjoyment and all-round functionality. An updated, high-quality aluminium frame now offers greater clearance for 50mm tyres on 700c wheels so you can cover ground quickly with added puncture protection, grip and comfort. With the ability to mount mudguards, racks and kickstands (available separately as the EQ kit), the CROSSWAY range is the perfect choice for everyday riding. All CROSSWAY models are available as a low step-through frame, making mounting and dismounting straightforward.
- Updated lightweight aluminium frame with greater tyre clearance
- Comfort geometry
- Suspension fork and 45 mm wide tyres
- Shimano 3x7 speed drivetrain and mechanical disc brakes
- Multiple fixing points for rear rack and fenders
- EQ finishing kit available separately
- material: aluminium
- 700x50C max. wheelsize
- 135x9mm axle standard
- BSA bottom bracket standard
- Coil
- 63mm suspension travel
- 700x50C max. wheelsize
- mechanical disc brake
- 160 mm
- material: aluminium
- 30.9mm diameter
- 0mm setback
- 48-38-28 teeth
- MAT Aluminium
- 170 mm-XXS/SM, 175 mm-ML up
- 12-32 teeth
- 7 speed
- 100x9mm width front hub
- 32 spoke holes
- Centerlock
- 135x9mm width rear hub
- 32 spoke holes
- Centerlock
- 17mm inner width
- material: aluminium
- 700x45C
- wire
- 700x45C
- wire
weighed at frame size M
| Frame Size | XXS | XS | S | M | L | XL |
| Tyre Sizes | 28" | 28" | 28" | 28" | 28" | 28" |
| ST seat tube [mm] | 390 | 430 | 470 | 510 | 550 | 590 |
| TT top tube [mm] | 560 | 565 | 580 | 590 | 610 | 630 |
| CS chain stay length [mm] | 460 | 460 | 460 | 460 | 460 | 460 |
| HTA head tube angle [°] | 70.5 | 70.5 | 71 | 71 | 71.5 | 71.5 |
| STA seat tube angle [°] | 74 | 74 | 73.5 | 73.5 | 73 | 73 |
| BD bottom bracket drop [mm] | 70 | 70 | 70 | 70 | 70 | 70 |
| HT head tube [mm] | 130 | 130 | 140 | 155 | 175 | 205 |
| FL fork length [mm] | 468 | 468 | 468 | 468 | 468 | 468 |
| FO fork offset [mm] | 42 | 42 | 42 | 42 | 42 | 42 |
| R reach [mm] | 382 | 387 | 393 | 399 | 406 | 418 |
| S stack [mm] | 620 | 620 | 631 | 645 | 667 | 695 |
| WB wheel base [mm] | 1076 | 1081 | 1085 | 1096 | 1104 | 1125 |
| SH stand over height [mm] | 678 | 713 | 748 | 782 | 817 | 854 |
