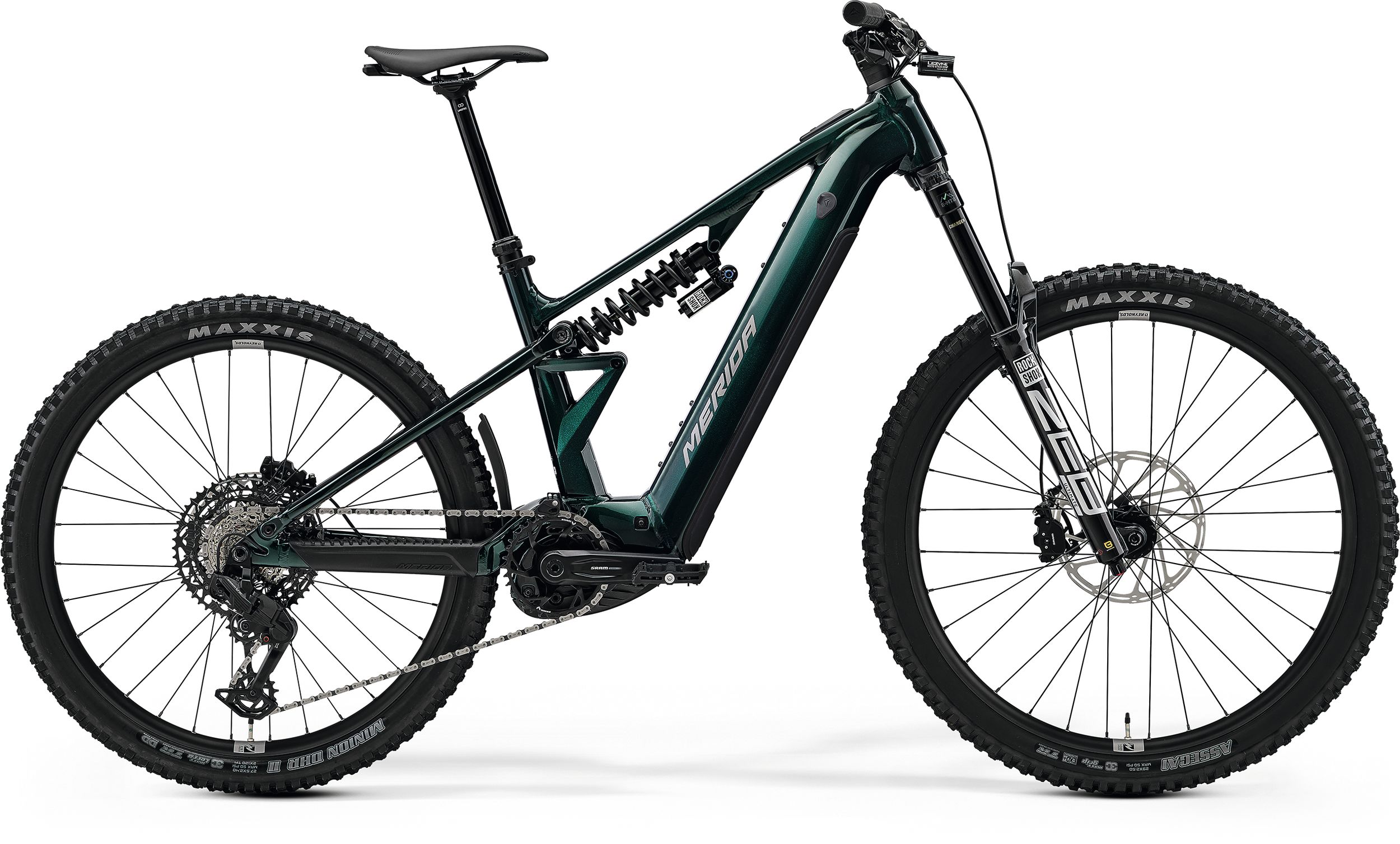

eONE-EIGHTY FR 800



How do you make our most capable e-MTB even harder hitting? Add in a coil shock for ultimate chaos control and eye-poppingly powerful brakes, that's how. A big Bosch battery and CX power will get you lapping all day.
Find Dealer

This one goes up to 11. We've made our hard-hitting eONE-EIGHTY even more capable by speccing a coil-sprung rear shock and kit that prioritises suspension and stopping performance over the parts that break or wear out. That means the flawless performance of a RockShox Zeb Ultimate fork and Vivid Coil Ultimate rear shock kicking out 180 mm of travel countered by the relentless power of SRAM's Maven Base disc brakes. Add in a huge 800 Wh battery powering the torquey Bosch CX drive unit and you've just made the uplift pointless.

Calling all heavy hitters, bike park senders and big mountain brawlers, this one’s for you. The new eONE-EIGHTY has landed, and it’s ready to ride the biggest lines and burliest tracks - and you can say goodbye to waiting in the uplift queue because it can rip and repeat all day long thanks to a big 800 Wh battery and Bosch CX power.It’s our longest travel e-bike ever, with 180 mm of suspension at either end on a robust aluminium frame with a new suspension platform that builds on our award-winning FAST kinematic from the eONE-SIXTY and sends it to new heights. Add in coil shock compatibility, mixed-wheel size only setup, plus a whole host of other features and getting rowdy is where the eONE-EIGHTY starts, not finishes. Up or down, it’s ready to rock.It’s also our first e-MTB to use the Bosch Performance Line CX drive unit, which offers powerful assistance and silent performance with up to 100 Nm on tap. There’s a serious amount of range on offer too, thanks to the new 800 or 600 Wh battery - plus the option of a 250 Wh range extender. You can easily remove the battery for off-bike charging or replacement on a really big ride, plus we’ve also got a new cover that protects from dirt, impacts and moisture - and it holds itself in place with the magic of Fidlock magnets.It’s rated for Category 5 riding too, so you can get stuck into as many bike park laps or downhill tracks as you like without voiding the 5-year warranty.

  • Tough aluminium frame with 180 mm rear wheel travel and mixed wheel sizes as standard for fun and agile handling
  • RockShox Zeb Ultimate fork with 180 mm travel, RockShox Vivid Coil Ultimate rear shock
  • SRAM Eagle 70 direct-mount drivetrain, Reynolds 309 Enduro Comp rims
  • Incredibly powerful SRAM Maven Base brakes, tough reinforced Maxxis tyres
  • User removable 800 Wh battery with optional 250 Wh range extender, powerful Bosch CX drive unit
  • Reach-based AGILOMETER sizing system with 30-230 mm adjustable dropper post

Awards & Media

  • material: Aluminum
  • 180mm suspension travel
  • 29” x 2,6” max. wheelsize
  • 148x12mm axle standard
  • intube *
frame size Short, Mid, Long, XLong
color HALO GREEN (GREY)
  • Air
  • 180mm suspension travel
  • Tapered
  • 44mm fork offset
  • 29x2.6" max wheelsize
  • coil spring rates: XSHORT and SHORT: 300lbs - MID: 350 lbs - LONG: 400 lbs - XLONG: 450 lbs
headset Acros ICR MERIDA EXTERNAL neck w/ Blocklock
  • material: aluminium
  • 35mm diameter
  • 0° stem angle
  • Supernova mount
  • 40 mm all sizes
grip MERIDA EXPERT TR
derailleur (r) Sram Eagle 70 Transmission
shifters Sram Dropper Lever MMX / Sram Eagle 70 Transmission Shifter
  • 34.9mm diameter
  • 0mm setback
  • SHORT, MID, LONG and XLONG 30-230mm travel seatpost
  • XSHORT 30-200mm travel seatpost
seat clamp MERIDA EXPERT
  • V-mount
  • incl. MERIDA minitool
pedal VP 532
crank Sram S1000 Eagle E-MTB Crank, 160mm all sizes
  • 10-52 teeth
  • 12 speed
  • 110x15mm width front hub
  • 32 spoke holes
  • 6 bolt
  • 148x12mm width rear hub
  • 32 spoke holes
  • 6 bolt
  • 30mm inner width
  • material: aluminium
  • Tubeless ready (tubeless tape installed)
  • front 29"
  • rear 27.5"
  • 29x2.5 "
  • fold
  • TR EXO+ 3C MaxxGrip
  • 27.5x2.4 "
  • fold
  • 3C DD TR MaxxTerra
  • including removeable lever, 6/4mm allen key
light rear USB REAR Light CG-214RG
fender RF-001 mini fender
drive unit Bosch Performance Line CX
battery lock Abus Key
display Bosch Purion 400

weighed at frame size M

Bike Frame Geometry Image
Frame Size Short Mid Long XLong
Tyre Sizes 29/27.5" 29/27.5" 29/27.5" 29/27.5"
ST seat tube [mm] 410 425 445 465
TT top tube [mm] 577 604 630 652
CS chain stay length [mm] 435 435 435 435
HTA head tube angle [°] 64.5 64.5 64.5 64.5
STA seat tube angle [°] 78.5 78.5 78.5 78.5
BD bottom bracket drop [mm] 12 12 12 12
HT head tube [mm] 115 120 125 130
FL fork length [mm] 600 600 600 600
R reach [mm] 435 460 485 505
S stack [mm] 657 661 666 670
WB wheel base [mm] 1218 1245 1272 1294
Str Stack To Reach Ratio Pc 1.51 1.44 1.37 1.33
No. Item-No. Name Info Pieces Torque NM
1 A2300000696 BOLT M6x1 OD15/17mm L74mm 1
2 A2221000040 BEARING 172607V-2RS OD26mm ID17mm W7mm 1
3 A2294000102 WASHER OD21mm ID17.1mm H3mm 1
4 A2294000016 WASHER OD19mm ID15.1mm H3mm 3
5 A2221000043 BEARING 3802V-2RS OD24mm ID15mm W7mm 3
6 A2300000609 SCREW M10x1 L15mm 1 15~17
7 A2300000736 BOLT M6x1 OD10mm L39mm 1
8 A2298000113 SCREW M6x1 L16mm 2 8~10
9 A2294000196 WASHER for M6 sunkenhead screw OD16mm 4
10 A2300000693 BOLT M6x1 OD12mm L62mm 1
11 A2300000737 SCREW M8x1 L49mm 1 18~20
12 A2294000224 LOCK RING for ID21 1
13 A2294000223 WASHER OD12.1mm ID15.5mm H3mm 2
14 A2221000035 BEARING 6801V-2RS OD21mm ID12mm W5mm 2
15 A2031000094 LINK 1
16 A2262000059 WASHER OD15.5mm ID12.1mm H31mm 1
17 A2300000743 SCREW M15x1 L20.5mm 2 23~25
18 A2294000225 LOCK RING for ID24 2
19 A2300000652 BOLT M6x1 OD10mm L18.8mm 2
20 A2294000212 WASHER OD14mm ID10.1mm H3.1mm 4
21 A2294000211 LOCK RING for ID22 2
22 A2221000060 BEARING 6900V-2RS OD22mm ID10mm W6mm 2
23 A2292000141 WASHER OD13mm ID9mm H1mm 1

To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.
