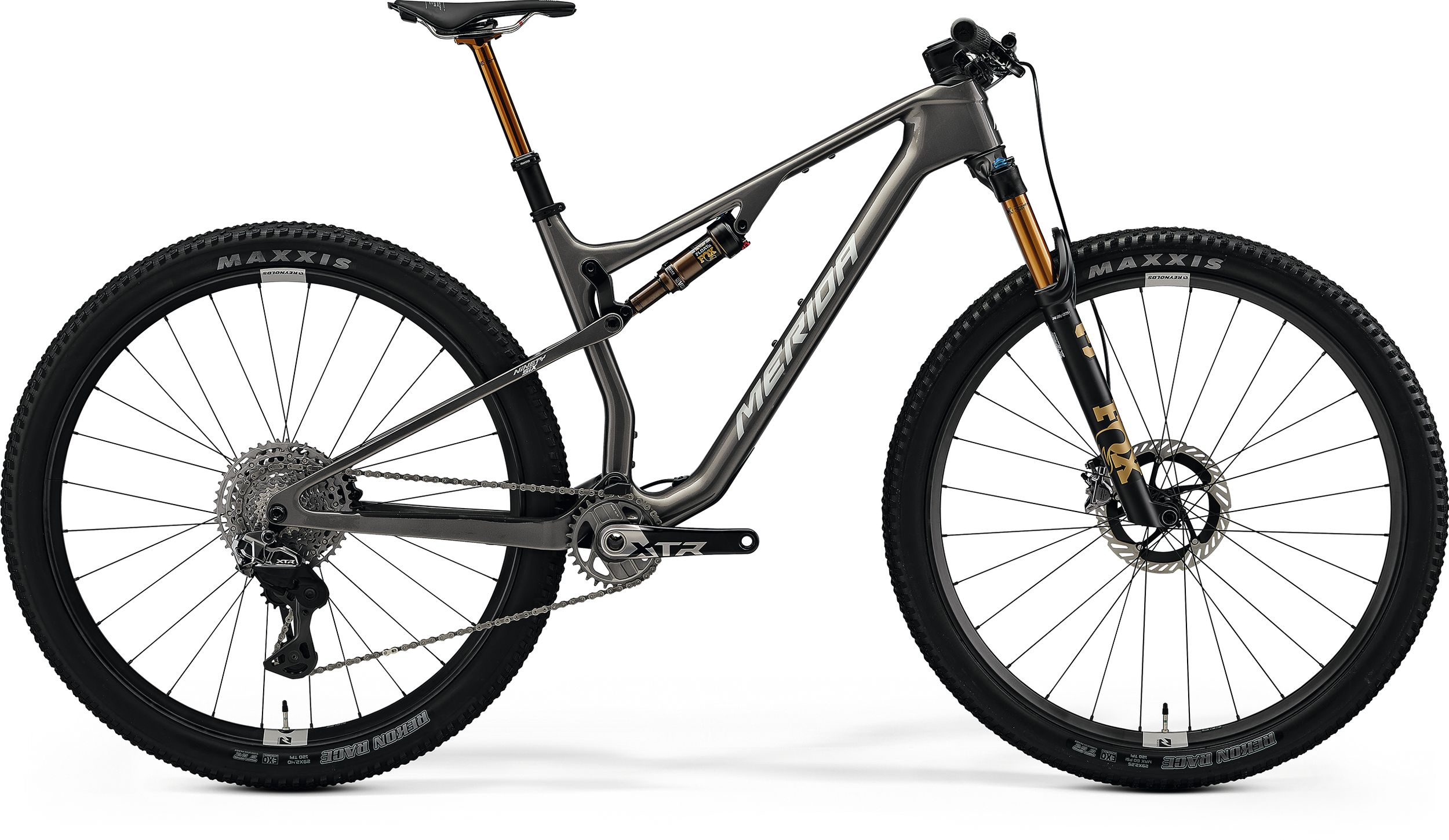

Just because you push your limits on climbs doesn't mean you want to take things easy on the descents, which is why we made the NINETY-SIX 9000. The lightweight P-FLEX carbon frame and fast rolling tyres provides the cross-country racing genes while downcountry capability is boosted thanks to a 120 mm travel Fox 34 SC fork and 150 mm dropper post. Add to that the latest Shimano Di2 XTR wireless drivetrain, powerful yet lightweight XTR brakes, a FSA NS SIC one-piece carbon cockpit and Reynolds carbon wheels, and you've got an impeccable package.
The NINETY-SIX is the latest incarnation of our former World Cup proven XC and marathon machine. It inherits the forward-surging race genes of the old NINETY-SIX and combines it with a new readiness and ability to tackle today’s demanding XC and marathon courses. The carbon fibre frame platform and P-FLEX suspension is the perfect basis for a fun-packed, fast and trail loving short travel full suspension machine that helps define what a modern cross-country race bike should be. It's able to take on the rougher than ever world-class race tracks as well as the trail riders who want hyper-speed climbing with the ability to descend like never before.
- Lightweight CF4 carbon frame with 100 mm travel and P-FLEX technology
- Modern aggressive geometry with wireless dropper post
- 120 mm travel Fox 34 SC fork with low friction Kashima coating
- Carbon fibre Reynolds TR 309 wheels and fast rolling Maxxis tyres
- Powerful yet lightweight Shimano XTR brakes
- The latest 12-speed wireless Shimano XTR Di2 drivetrain
- 100mm suspension travel
- material: carbon
- 29x2.35" max. wheelsize
- 148x12mm axle standard
- BSA bottom bracket standard
- Air
- 120mm suspension travel
- Tapered
- 3Pos Remote lockout
- 44mm fork offset
- 29x2.4" max. wheelsize
- Large Volume aircan
- 3 Pos PTL remote lockout
- 29x2.5" max. WHS
- 180mm
- Upper and lower IPS sealing
- wireless
- GS
- wireless
- 30.9mm diameter
- 0mm setback
- S/M/L/XL: 150mm travel seatpost
- 30 teeth
- 170 mm for all sizes
- BSA
- 24mm axle
- 110x15mm width front hub
- 148x12mm width rear hub
- 30mm inner width
- Centerlock
- Shimano MS 12 Speed
- material: carbon
- Tubeless ready (tubeless tape and valves included)
- Lifetime warranty
- 29x2.4" WT
- tubeless ready
- 3C MaxxTerra EXO
- 29x2.25"
- fold
- TR EXO 120 TPI
- including removeable lever, 6/4mm allen key
weighed at frame size M
| Frame Size | S | M | L | XL |
| Tyre Sizes | 29" | 29" | 29" | 29" |
| ST seat tube [mm] | 400 | 440 | 470 | 500 |
| TT top tube [mm] | 581 | 601 | 624 | 648 |
| CS chain stay length [mm] | 435 | 435 | 435 | 435 |
| HTA head tube angle [°] | 67 | 67 | 67 | 67 |
| STA seat tube angle [°] | 75 | 75 | 75 | 74.5 |
| BD bottom bracket drop [mm] | 36 | 36 | 36 | 36 |
| HT head tube [mm] | 95 | 95 | 105 | 115 |
| FL fork length [mm] | 530 | 530 | 530 | 530 |
| R reach [mm] | 420 | 440 | 460 | 480 |
| S stack [mm] | 595 | 595 | 605 | 614 |
| WB wheel base [mm] | 1136 | 1156 | 1180 | 1203 |
| SH stand over height [mm] | 740 | 741 | 747 | 749 |
| No. | Item-No. | Name | Info | Pieces | Torque NM |
| 1 | A2191000227 | HEAD SET | Acros AIX-585 | 1 | |
| 2 | A2136000017 | MOUNT | for bottle cage | 1 | |
| 3 | A2298000185 | SCREW | M5x0.8 L10mm | 4 | 3~5 |
| 4 | A2298000145 | SCREW | M5x0.8 L20mm | 1 | 3~5 |
| 5 | A2300000477 | BOLT | M10x1 OD15/17mm L65mm | 1 | |
| 6 | A2300000476 | SCREW | M10x1 L15mm | 1 | 14~16 |
| 7 | A2221000040 | BEARING | 172607V-2RS OD26mm ID17mm W7mm | 1 | |
| 8 | A2221000043 | BEARING | 3802V-2RS OD24mm ID15mm W7mm | 1 | |
| 9 | A2294000102 | WASHER | OD21mm ID17.1mm H3mm | 1 | |
| 10 | A2294000016 | WASHER | OD19mm ID15.1mm H3mm | 1 | |
| 11 | A2300000577 | SCREW | M6x1 L13,5mm | 3 | 6~8 |
| 12 | A2300000471 | BOLT | M6x1 OD10mm L39mm | 1 | |
| 13 | A2300000472 | BOLT | M6x1 OD10mm L34mm | 1 | |
| 14 | A2300000473 | BOLT | M6x1 OD10mm L55mm | 1 | |
| 15 | A2181000005 | WASHER | OD15mm ID10.1mm H27mm | 1 | |
| 16 | A2221000034 | BEARING | 6800V-2RS OD19mm ID10mm W5mm | 3 | |
| 17 | A2294000085 | WASHER | OD15.5mm ID10.1mm H2mm | 3 | |
| 18 | A2300000578 | SCREW | M6x1 L13mm | 1 | 6~8 |
| 19 | A2300000475 | BOLT | M6x1 OD10/12mm L55mm | 1 | |
| 20 | A2221000035 | BEARING | 6801V-2RS OD21mm ID12mm W5mm | 1 | |
| 21 | A2294000105 | WASHER | OD17mm ID12.1mm H2mm | 1 | |
| 22 | A2258000225 | CABLE GUIDE | for RD and rear brake | 1 | |
| 23 | A2300000501 | SCREW | M4x0.7 L16mm | 1 | 1,5~2 |
| 24 | A2300000485 | SCREW | M4x0.7 L6mm | 1 | 1,5~2 |
| 25 | A2298000113 | SCREW | M6x1 L16mm | 1 | 6~8 |
| 26 | A2300000484 | SCREW | M4x0.7 L10mm | 1 | 1,5~2 |
| 27 | A2294000167 | WASHER | OD12mm ID6.4mm H0.5mm | 1 | |
| 28 | A2232000030 | MOUNT | Mount for chain guide | 1 | |
| 29 | A2232000028 | CHAIN GUIDE | for 28T-36T | 1 | |
| 30 | A2258000079 | CABLE PLUG | for rear brake | 1 | |
| 31 | A2258000052 | BLIND PLUG | 1 | ||
| 32 | A2311000102 | RD-HANGER | UDH | 1 | |
| 33 | A2298000059 | SCREW | M5x0.8 L15mm | 2 | 3~5 |
| 34 | A2002000135 | THRU AXLE | EXPERT TR; L=178.5mm M12x1 TL=13.5mm | 1 | |
| 35 | A2358000113 | PROTECTOR | for down tube | 1 | |
| 36 | A2352000066 | PROTECTOR | for chain stay | 1 | |
| 37 | A2352000037 | TUBE | foam; ID6mm L450mm | 1 | |
| 38 | A2352000037 | TUBE | foam; ID6mm L450mm | 1 |
