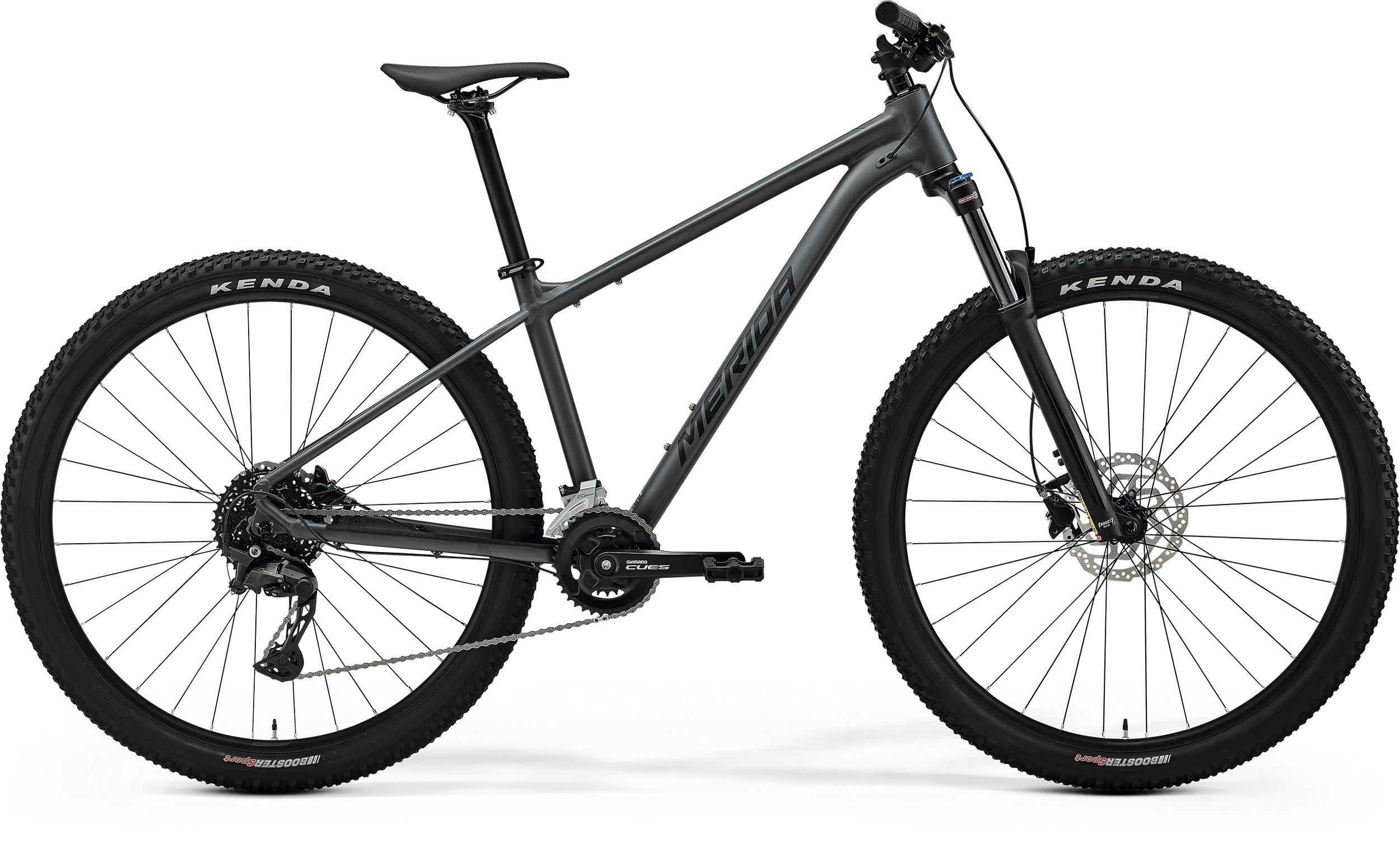

With fast-rolling 29" wheels and a bump-taming and easily tuneable air-sprung 120 mm fork, the BIG.NINE 300 is a confident off-road machine. Our latest aluminium frame has revised geometry for better trail performance but it's still a great do-anything bike thanks to powerful hydraulic disc brakes and a Shimano 1x10-speed drivetrain.
When it comes to the demanding world of cross-country mountain biking, the classic hardtail remains one of the purest tools for the job. Our 29er wheel equipped BIG.NINE range comes with the choice of carbon or two different aluminium frames to deliver a ride for all budgets. The latest CF carbon and LITE aluminium framed BIG.NINE offer truly modern geometry with increased standover clearance and handling stability to better deal with the tough race tracks of today. They also have downcountry ready TR options that boost fork travel and add in aggressive tyres and dropper posts. For riders starting out, the updated BIG.NINE TFS offers more relaxed geometry and builds that deliver great value and versatility on or off the trail, with BIG.SEVEN TFS models using 27.5" wheels to deliver a fit for for shorter riders. Our classic XC hardtails are the backbone of our range and showcase the enormous wealth of experience and knowledge we have gained in over half a century of bike production and manufacturing. The BIG.NINE range represents the symbiosis between modern frame technology, attention to detail and craftsmanship that 'Made in Taiwan' stands for.
- Updated TFS aluminium frame with clearance for 2.4" tyres
- Updated geometry for confident off-road handling
- Air-sprung Suntour suspension fork with 120 mm travel
- Shimano hydraulic disc brakes and CUES 1x10-speed wide-range drivetrain
- MERIDA COMP CC 29" II tubeless-ready wheelset and 2.4" tyres
- MERIDA finishing kit including size-tuned handlebars
- material: aluminum
- 29 wheelsize
- 135x9mm axle standard
- BSA bottom bracket standard
- Smooth welding
- Air
- 120mm suspension travel
- 29x2.4" max. wheelsize
- Lockout
- 46mm fork offset
- 2 piston
- 180mm
- 160mm
- material: aluminium
- 30.9mm diameter
- 0mm setback
- V-mount
- 36-22 teeth
- 170mm for all sizes
- 11-39 teeth
- 10 speed
- 110x15mm width front hub
- 32 spoke holes
- Centerlock
- 135x9mm width rear hub
- 32 spoke holes
- Centerlock
- 25mm inner width
- material: aluminium
- tubeless ready
- 29x2.4
- wired
- 29x2.4
- wired
Frame Size | S | M | L | XL | XXL |
Tyre Sizes | 29" | 29" | 29" | 29" | 29" |
ST seat tube [mm] | 370 | 420 | 460 | 510 | 560 |
TT top tube [mm] | 559 | 581 | 603 | 630 | 657 |
CS chain stay length [mm] | 460 | 460 | 460 | 460 | 460 |
HTA head tube angle [°] | 67 | 67 | 67 | 67 | 67 |
STA seat tube angle [°] | 74 | 74 | 74 | 74 | 74 |
BD bottom bracket drop [mm] | 53 | 53 | 53 | 53 | 53 |
HT head tube [mm] | 100 | 105 | 115 | 130 | 140 |
FL fork length [mm] | 535 | 535 | 535 | 535 | 535 |
FO fork offset [mm] | 46 | 46 | 46 | 46 | 46 |
R reach [mm] | 390 | 410 | 430 | 450 | 470 |
S stack [mm] | 619 | 624 | 633 | 643 | 652 |
WB wheel base [mm] | 1136 | 1158 | 1182 | 1206 | 1229 |
SH stand over height [mm] | 694 | 744 | 773 | 813 | 852 |
