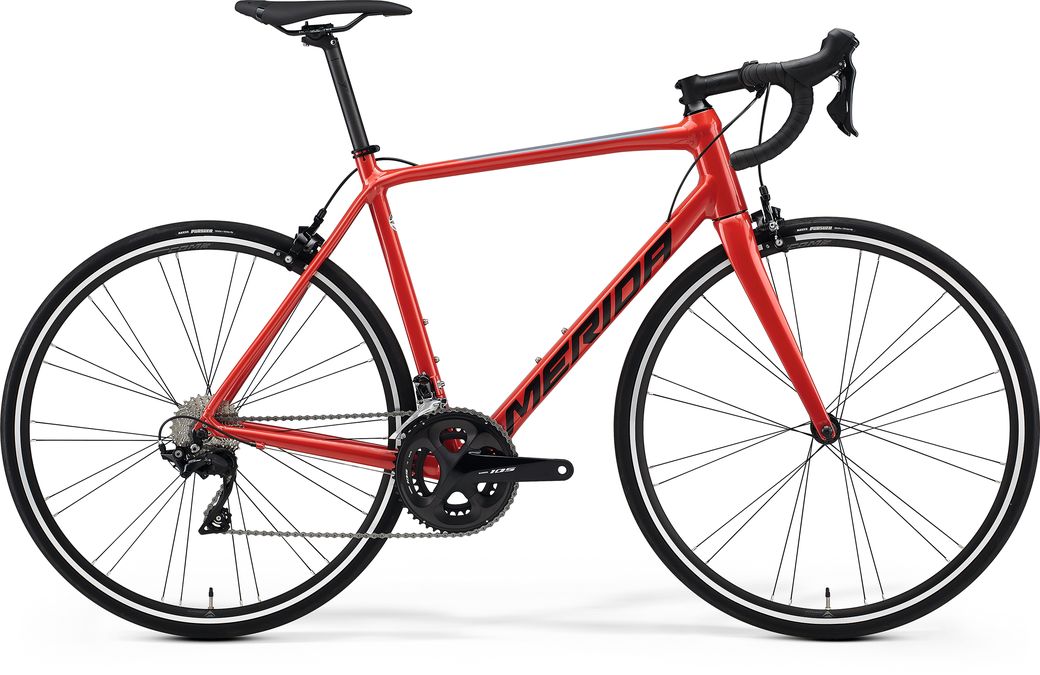

SCULTURA RIM 400

SCULTURA RIM 400



Find Dealer
  • THIS IS AN ARCHIVED MODEL

  • VIEW ALL CURRENT MODELS
    • material: aluminium
    • 700x25C max. wheelsize
    • 100x9/ 135x9mm axle standard
    • Pressfit bottom bracket standard
    frame size 4XS, 3XS, XXS, XS, S, S/M, M/L, L, XL
    color GOLDEN RED (GREY)
    • 700x25C max. wheelsize
    brakes Shimano 105
    brake lever Shimano 105
    headset MERIDA M2331 Neck
    • material: aluminium
    • 380mm(4XS,3XS,XXS) , 400mm (XS-S) , 420mm (S/M-M/L) , 440mm (L-XL)
    • 31.8mm diameter
    • material: aluminium
    • -5° stem angle
    • 70 mm-4S/3S, 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL
    grip MERIDA ROAD EXPERT
    derailleur (f) Shimano 105
    shifters Shimano 105
    • 27.2mm diameter
    • 15mm setback
    • Carbon
    seat clamp MERIDA EXPERT
    chain KMC X11
    • 50-34 teeth
    • 165 mm-4S/3S/XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
    crank 165 mm-4S/3S/XXS, 170 mm-XS/S, 172.5 mm-SM/ML, 175 mm-L/XL
    • 11-30 teeth
    • 11 speed
    bottom braket SM-BB71-41B, Pressfit 86.5
    • 100x9mm width front hub
    • 24 spoke holes
    • 130x9mm width rear hub
    • 28 spoke holes
    • 17mm inner width
    • 24mm height
    • material: aluminium
    • Tubeless ready (tubeless tape and valves not included)
    axles QR
    spokes Double Butted Black stainless

    weighed with 700C wheels and at frame size M-L, without pedals

    max. weight 120 kg
    Bike Frame Geometry Image
    Frame Size 4XS 3XS XXS XS S S/M M/L L XL
    Tyre Sizes 28" 28" 28" 28" 28" 28" 28" 28" 28"
    ST seat tube [mm] 380 410 440 470 500 520 540 560 590
    TT top tube [mm] 490 500 515 520 530 545 560 575 590
    CS chain stay length [mm] 408 408 408 408 408 408 408 408 408
    HTA head tube angle [°] 70 70.5 71 71 72 73 73 73 73.5
    STA seat tube angle [°] 75 75 75 74.5 74 74 73.5 73 73
    BD bottom bracked drop [mm] 70 70 66 66 66 66 66 66 66
    HT head tube [mm] 95 100 120 130 140 150 170 190 215
    FL fork length [mm] 375 375 375 375 375 375 375 375 375
    R reach [mm] 358 366 376 373 375 386 390 394 401
    S stack [mm] 492 499 519 529 542 555 574 593 619
    WB wheel base [mm] 972 979 982 983 979 985 995 1005 1014
    SH stand over height [mm] 654 669 697 720 744 762 779 798 826

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.

    HIGHLIGHTS

    All models feature a full carbon fork with a tapered steerer to give precise, confidence-inspiring steering. All SCULTURA Alloy and CF2 carbon models feature a ‘regular’ 1 1/8" to 1 1/2" taper. The high-end SCULTURA CF4 frame has a slimmed down front profile and uses a 1 1/8" to 1 1/4" taper, the new REACTO frames a 1 1/2" to 1 1/4"taper.

    Our wind tunnel learnings from the REACTO design project have been used to create a smaller aerodynamically optimised ‘NACA Fastback’ tube profile. The more extreme truncation of the teardrop shaped tubes enables perfect airflow at the lowest possible weight.

    Technologies


    PROLITE 66 TRIPLE BUTTED ALUMINUM

    Our proven high-end aluminium (6066) is extremely light and durable. Using triple butted wall thicknesses and hydroforming technology, we can tune the aluminium tubes to give the best possible stiffness to weight ratio.


    HFS - HYDRO FORMING SYSTEM

    Tubes are inserted into negative moulds and a hot emulsion of water and oil is forced through at pressure, enabling them to be formed into complex shapes.


    X-TAPER HEADTUBE

    Our X-Tapered headtube offers the space for a tapered fork to be fitted. Tapered forks offer superb stiffness and precise and deliver confidence-inspiring steering.

    X-TAPER HEADTUBE

    SMOOTH WELDING

    Sometimes called ‘double pass welding’, a second pass over the weld gives a clean organic look to the frame. At first glance, you will be convinced it is carbon.


    INTERNAL CABLE ROUTING

    Cables are routed through the frame, entering and exiting through smooth sockets. The bike looks neat, whilst the cables are protected from moisture and dirt.
