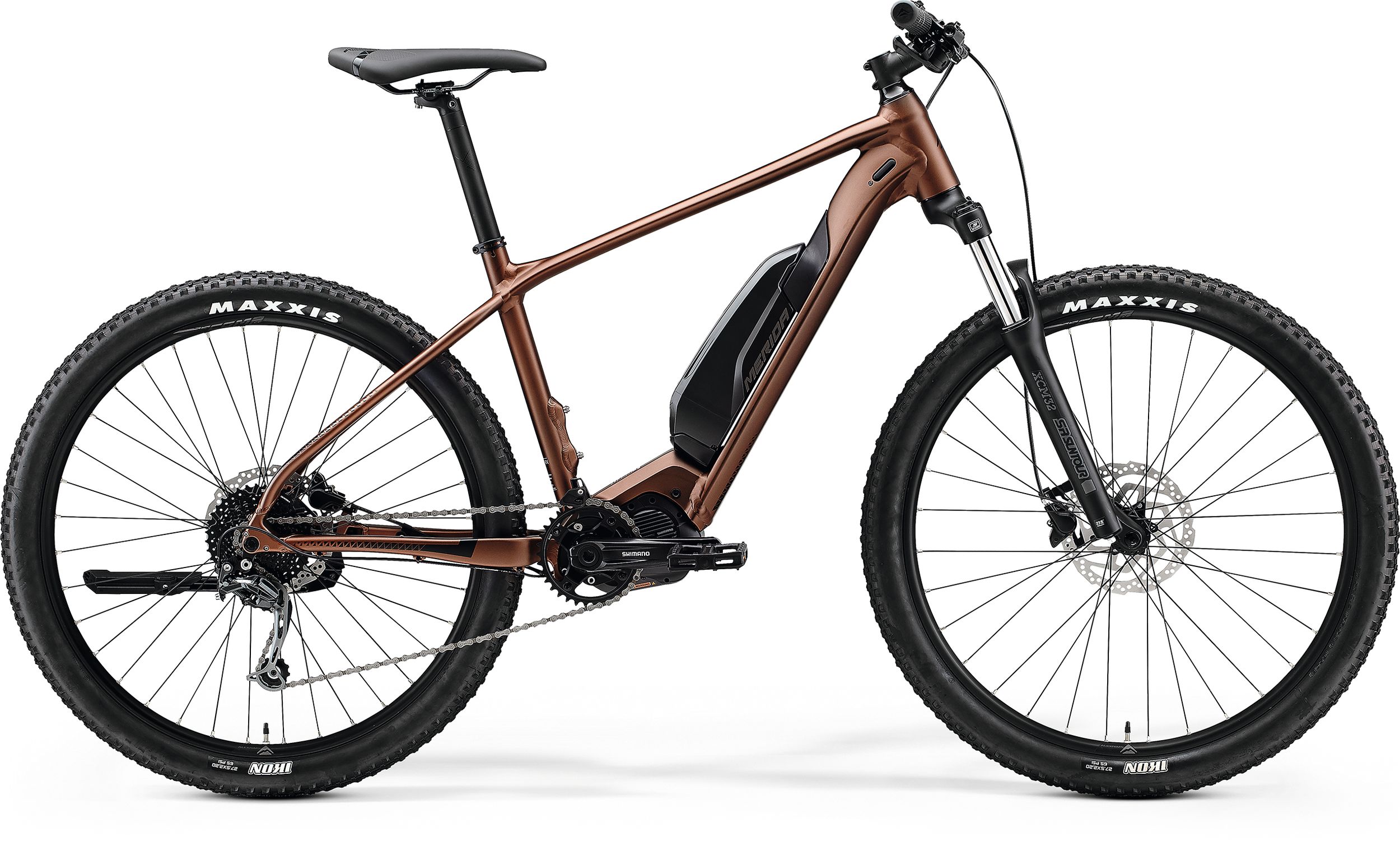

eBIG.SEVEN 300 SE

eBIG.SEVEN 300 SE



Find Dealer
  • THIS IS AN ARCHIVED MODEL

  • VIEW ALL CURRENT MODELS
    • material: aluminium
    • 27.5x2.25" max. wheelsize
    • 148x12mm axle standard
    • external
    • max. 504 Wh
    frame size XS, S, M
    color SILK BRONZE (BLACK)
    • Coil
    • 100mm
    • Tapered
    • 47mm fork offset
    • 27.5x2.2" max wheelsize
    headset Merida 2341 Neck
    • 720mm width
    • 10mm rise
    • 31,8mm diameter
    • 6° stem angle

    • 70 mm-S, 80 mm-M

    grip MERIDA EXPERT EC
    derailleur (r) Shimano Deore RDM592 9
    shifters Shimano Alivio M3100 9
    • 30.9mm diameter
    • 15mm setback
    seat clamp MERIDA EXPERT clamp
    pedal VP VPE-537
    chain HG53
    • 34 teeth
    • Shimano FC-E8000
    • 160 mm for all sizes
    • 11-36 teeth
    • 9 speed
    bottom braket included
    • 110x15mm width front hub
    • 32 spoke holes
    • Centerlock
    • 148x12mm width rear hub
    • 36 spoke holes
    • Centerlock
    • 20mm inner width
    • material: aluminium
    • 27.5x2.2"
    • kevlar bead
    • 27.5x2.2"
    • kevlar bead
    • including removeable lever, 6/4mm allen key
    spokes Black stainless
    light front CG-119PG-BLACK(1)
    light rear CG-404RG-BLK
    carrier no
    fender no
    kickstand CL-KA98
    battery Shimano E8010 504Wh
    battery lock Abus key
    display Shimano SC-E5000

    weighed with 27.5" wheels and at frame size M

    max. weight 140 kg
    Bike Frame Geometry Image
    Frame Size XS S M
    Tyre Sizes 27.5" 27.5" 27.5"
    ST seat tube [mm] 330 380 430
    TT top tube [mm] 570 570 590
    CS chain stay length [mm] 455 438 438
    HTA head tube angle [°] 68 68 68
    STA seat tube angle [°] 73.5 73.5 73.5
    BD bottom bracked drop [mm] 27 27 27
    HT head tube [mm] 115 125 135
    FL fork length [mm] 487 487 487
    R reach [mm] 401 399 416
    S stack [mm] 569 579 588
    WB wheel base [mm] 1120 1104 1125
    SH stand over height [mm] 673 710 749
    No. Item-No. Name Info Pieces Torque NM
    1 CABLE GUIDE SMART ENTRY
    2 CABLE GUIDE SMART ENTRY
    3 A2300000213 SCREW M3x0.5 L13.5mm 2 2~4
    4 A2151000026 COVER for battery; eBIG.SEVEN sizes XS / S for battery; eBIG.NINE size M 1
    5 A2151000025 COVER for battery; eBIG.SEVEN size M for battery; eBIG.NINE sizes L / XL 1
    6 A2300000468 SCREW M8x1.25 L18.5mm 3 11~12
    7 A2300000469 SCREW M8x1.25 L23mm 3 11~12
    8 A2258000012 CABLE GUIDE for M5 fixation 1
    9 A2298000004 SCREW M5x0.8 L15mm with washer 1 3~5
    10 A2300000185 SCREW M3x0.5 L20.5mm 2 2~4
    11 A2311000067 RD-HANGER DH-057 1
    12 A2300000048 SCREW M4x0.7 L8mm 1 3~5

    To reduce production and delivery times, we are sometimes forced to make last-minute specification changes. Please be aware that those changes might not be reflected on these product pages and images.

    Technologies


    PROLITE 66 TRIPLE BUTTED ALUMINUM

    Our proven high-end aluminium (6066) is extremely light and durable. Using triple butted wall thicknesses and hydroforming technology, we can tune the aluminium tubes to give the best possible stiffness to weight ratio.


    HFS - HYDRO FORMING SYSTEM

    Tubes are inserted into negative moulds and a hot emulsion of water and oil is forced through at pressure, enabling them to be formed into complex shapes.


    X-TAPER HEADTUBE

    Our X-Tapered headtube offers the space for a tapered fork to be fitted. Tapered forks offer superb stiffness and precise and deliver confidence-inspiring steering.

    X-TAPER HEADTUBE

    SMOOTH WELDING

    Sometimes called ‘double pass welding’, a second pass over the weld gives a clean organic look to the frame. At first glance, you will be convinced it is carbon.


    INTERNAL CABLE ROUTING

    Cables are routed through the frame, entering and exiting through smooth sockets. The bike looks neat, whilst the cables are protected from moisture and dirt.


    SMART ENTRY

    Cables, housings and brake hoses are clamped under tension to prevent rattling when the trails or roads get rough. All inlets are completely interchangeable to deal with Di2, hydraulic hoses, brake cable and gear cable housings etc.


    DI2 READY

    Bikes/frames with the symbol ‘Di2 Ready’ are prepared for the installation of Di2 technology with battery mounting in the seat post or within the fork steerer.


    F-MOUNT

    ‘F-Mount’ equipped bikes have integrated fittings for mud guards (some bikes require model specific mud guards), making fitting fast and simple.


    K-MOUNT

    Integrated mount on the chainstay to fit a MERIDA kickstand (or any commercial kickstand).

    K-MOUNT

    C-MOUNT

    ‘C-Mount’ equipped bikes have the fixing points for a rear rack already integrated (some bikes require model specific rear rack), making fitting fast, simple and reliable.


    CASTING MOTOR BRACKET

    Sophisticated shape only possible due to casting technology, creating an integrated appearance as well as an extremely strong connection between the E-bike motor and frame for improved performance and reliability.
