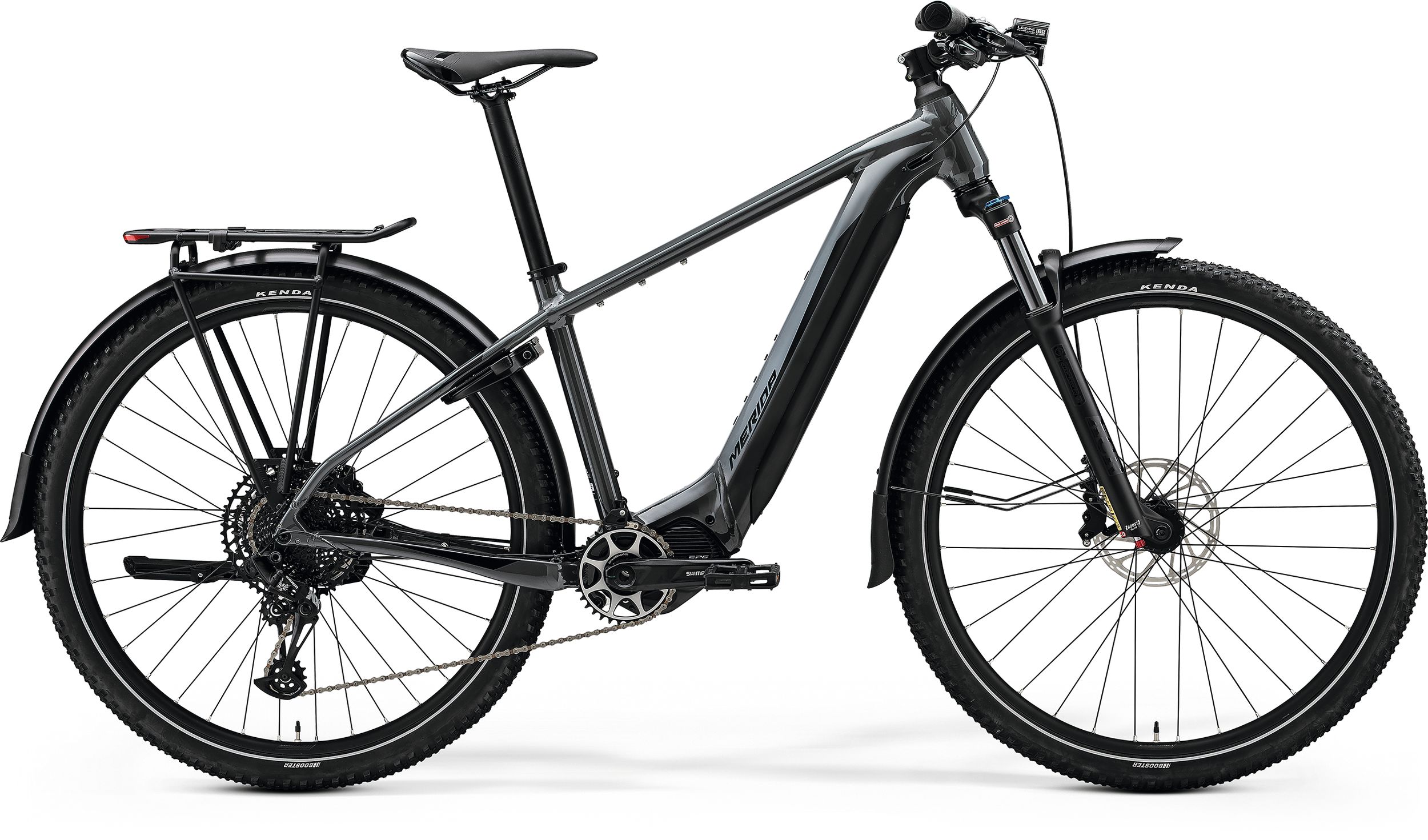

Who says you can't have it all? With a versatile, high-quality aluminium frame that integrates the new Shimano EP6 drive unit with huge 750 Wh battery and the ability to handle off-road riding just as well as the daily commute thanks to standard fit guards, rack, kickstand and lights, the eBIG.NINE 675 EQ delivers the holy grail for riders that don't want their bike to pigeonhole their riding. Add in a smooth SR Suntour fork to tame the bumps and quality Shimano drivetrain that can handle everything from steep mountain climbs to fast, flat sections and you'll be wondering if you need anything more.
Arguably the most versatile e-bike in our range, the tried and tested eBIG.NINE embodies the perfect balance of day-to-day usability and sporty leisure activity. It's a bike that can handle serious off-road riding but can also handle the commute to work with ease - especially if you want to have some fun on the way. The high-quality aluminium frame integrates a choice of 630 or 750 Wh battery sleekly into the downtube, with a more economical frame featuring semi-integrated 504 Wh battery on some models. All feature powerful and smooth Shimano drive units that will power you up any hill. Ready to be equipped with mudguards and even a side stand (or available as the EQ fully equipped version), the eBIG.NINE will help you make the most of any situation.
- Lightweight aluminium frame with 29er wheels
- New, powerful Shimano EP6 drive unit with 85 Nm torque
- Integrated 750 Wh battery
- Confidence inspiring mountain bike handling
- Comfort and control enhancing suspension fork
- Comes fully equipped with lights, kickstand, rack and mudguards
Awards & Media
- material: aluminium
- 29x2.35" without fender max. / 29x2.25" with fender max. wheelsize
- 148x12 mm axle standard
- intube
- Air Boost
- 100 mm
- Tapered
- 51 mm fork offset
- 29x2.4" max. wheelsize
- 4 piston
- 180 mm
- material: aluminium
- 34.9 mm diameter
- 0 mm setback
- V-mount
- 34 teeth
- 165 mm
- 10-50 teeth
- 12 speed
- 110x15 mm width front hub
- 32 spoke holes
- 6 bolt
- 148x12 mm width rear hub
- 36 spoke holes
- 6 bolt
- 25 mm inner width
- material: aluminium
- 29x2.2"
- wire
- 29x2.2"
- wire
- including removeable lever, 6/4 mm allen key
- weighed at frame size M
- Weight may vary depending on bike size, finish or possible specification changes due to supply chain issues.
- Total weight of bike, rider and luggage
Frame Size | S | M | L | XL |
Tyre Sizes | 29" | 29" | 29" | 29" |
ST seat tube [mm] | 380 | 430 | 480 | 530 |
TT top tube [mm] | 588 | 605 | 625 | 645 |
CS chain stay length [mm] | 465 | 465 | 465 | 465 |
HTA head tube angle [°] | 67.5 | 67.5 | 67.5 | 67.5 |
STA seat tube angle [°] | 74.5 | 74.5 | 74.5 | 74.5 |
BD bottom bracket drop [mm] | 62.5 | 62.5 | 62.5 | 62.5 |
HT head tube [mm] | 115 | 120 | 130 | 140 |
FL fork length [mm] | 527 | 527 | 527 | 527 |
R reach [mm] | 411 | 427 | 445 | 462 |
S stack [mm] | 636 | 640 | 650 | 659 |
WB wheel base [mm] | 1165 | 1183 | 1204 | 1225 |
SH stand over height [mm] | 719 | 750 | 794 | 835 |
No. | Item-No. | Name | Info | Pieces | Torque NM |
1 | A2300000048 | SCREW | M4x0.7 L8mm | 1 | 3~5 |
2 | A2311000067 | RD-HANGER | DH-057 | 1 | |
3 | A2300000185 | SCREW | M3x0.5 L20.5mm | 2 | 2~4 |
4 | A2258000012 | CABLE GUIDE | for M5 fixation | 1 | |
5 | A2298000004 | SCREW | M5x0.8 L15mm with washer | 1 | 3~5 |
6 | A2300000468 | SCREW | M8x1.25 L18.5mm | 3 | 11~12 |
7 | A2300000469 | SCREW | M8x1.25 L23mm | 3 | 11~12 |
8 | A2136000017 | MOUNT | for bottle cage | 1 | |
9 | A2298000154 | SCREW | M5x0.8 L12mm | 8 | 3~5 |
10 | A2298000145 | SCREW | M5x0.8 L20mm | 1 | 3~5 |
11 | A2143000097 | BLIND PLUG | for SIMPLO batteries | 2 | |
12 | A2143000125 | BUTTON | ON-OFF; for SHIMANO batteries | 1 | |
13 | A2161000127 | CABLE GUIDE | 1 | ||
14 | A2111000008 | CABLE GUIDE | 2 | ||
15 | A2161000118 | COVER | for battery | 1 | |
16 | A2300000213 | SCREW | M3x0.5 L13.5mm | 2 | 2~4 |
17 | A2143000129 | BLIND PLUG | for key opening | 1 | |
18 | A2258000079 | CABLE PLUG | for RD | 1 | |
19 | A2258000099 | CABLE PLUG | for rear brake and speed sensor | 1 | |
20 | A2161000079 | COVER | for top tube opening | 1 | |
21 | A2300000231 | SCREW | M3x0.5 L8 | 1 | 2~4 |
22 | A2029000024 | BUMPER | for INTERNAL BLOCK | 1 | |
23 | CABLE GUIDE | SMART ENTRY | 1 | ||
25 | A2002000136 | THRU AXLE | EXPERT TR; L=178mm M12x1.5 TL=14mm w. NUT | 1 | |
26 | A2248000039 | CLAMP | for INTERNAL BLOCK | 1 | |
27 | A2191000150 | HEAD SET | MERIDA/VP-8155 (MH-P16/MH-P16) | 1 | |
28 | A2191000152 | HEAD SET | MERIDA/VP-8157 (MH-P16/MH-P16) | 1 |
